Product Details:
Payment & Shipping Terms:
|
| Ultrasound Intensity: | <10mW/cm2 | Ultrasound Frequency: | 2MHz |
|---|---|---|---|
| Power Supply: | Alkalinity Battery | FHR Measuring Range: | 50~240bpm |
| Dimension: | 135mm *95mm *35mm | Weight: | 500g |
| Highlight: | Pocket Fetal Doppler,Baby Fetal Doppler |
||

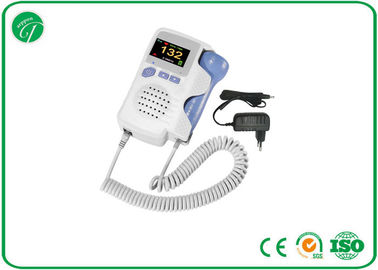

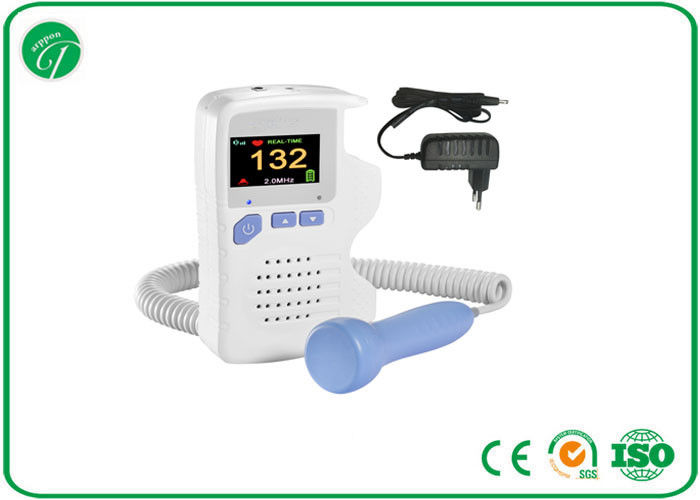

Popular pocket Fetal doppler Machine LCD fetal heart monitor for pregnant
1. Usage
FD-200C ultrasonic fetal doppler meets
the fetus daily check and routine examination
at home,clinic, community and hospital.
2. Features
Easy and convenient operation
High-fidelity, crystal clear sound
Earphone and speaker are feasible
High sensitivity doppler probe
Low ultrasound dosage
Display with color LCD
3. Technical Specification
Ultrasound frequency: 2MHz
Ultrasound intensity: <10mW/cm2
Power supply: Alkalinity battery
FHR Measuring range: 50~240bpm
| Functions | FD-200A+ | FD-200D+ | FD-200C+ | FD-200B+ | FD-200G+ |
| Doppler type | Continuous | Continuous | Continuous | Continuous | Continuous |
| Display | No | B/W | Colour | B/W | Colour |
| Backlight | No | Yes | Yes | Yes | Yes |
| Build-in speaker | Yes | Yes | Yes | Yes | Yes |
| Various display modes | No | No | Yes | No | Yes |
| Volume adjust | Yes | Yes | Yes | Yes | Yes |
| Battery indicator | No | Yes | Yes | Yes | Yes |
| FHR display | No | Yes | Yes | Yes | Yes |
| FHR curve | No | No | Yes | No | Yes |
| Various work modes | No | Yes | Yes | Yes | Yes |
| Alkalinity battery | Yes | No | No | Yes | Yes |
| Ni-Mh battery | No | Yes | Yes | No | No |
| Charge in device | No | Yes | Yes | No | No |
FHR
resolution: 1bpm
FHR accuracy: ±1bpm
Power consumption: <1W
Dimension: 135mm ×95mm ×35mm
Weight: 500g
4. Configuration
Main body
2MHz probe
Ni-Mh battery
Adaptor
5. Option
Earphone
3MHz probe
Carry bag
6. FD-200 Series Difference Table
