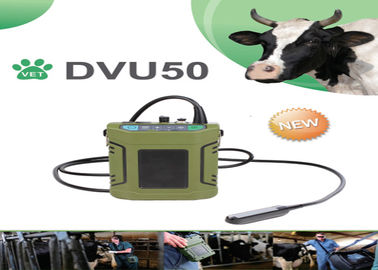

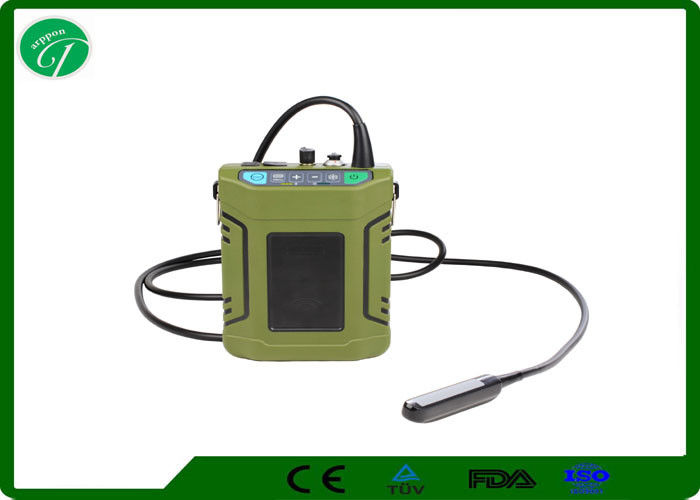

Multiple Function Ultrasound Veterinary Equipment , Full Digital Portable Ultrasound Machine

Multiple function portable handhled veterinary ultrasound / vet ultrasound device for dog,cat,

Target customer:
veterinary, ranchers who raise more than 1,000 bovine.

Application:

Diagnose bovine pregnancy ,abdomen routine examination, fetal sex diagnosis, etc.

Animal : Bovine.

Positioning:
----meet the need for specific large farm of bovine pregnancy.
----Kaixin’s high-end ultrasound scanner for vet

Features:

(1) Support 6 customized interface languages.
(2) Wireless video transmission function.
(3) Visual grid function.
(4) 1.5 kg weight(including battery and probe),easy to carry.
(5) High-capacity lithium Battery ,more than 5 hours work..
(6) Optional professional ultrasound goggle, convenient for outdoor use, meet different need.
(7) A few buttons, operation convenient, function clear and simple.

Technical Specification

•  6.5MHz linear rectal probe (5.0MHz to 7.5MHz)
•  6 hour lithium ion battery
•  4 hour charge time
•  wireless channel: 8 kinds wireless channel.
•  Charge from 120/240 VAC or 12 DC (Car Charger)
•  1.5 kg (3.3 lb) weight –including battery and probe
•  Up to 8 preset examinations
•  Rapid Zoom 4 cm to 16 cm with indicator
•  2.4 GHz Wireless sender with sender on/off capabilities
•  Battery indicator on display
•  nFreeze button
•  Multiple grid setting for measuring and aging fetus
•  NTSC/PAL 5 VDC Goggle port - LEMO type
•  Goggle: Just insert it to the machine then work.
•  No battery, avoid the trouble of charging battery.
•  Wireless or direct wired bright LCD monitor / adaptable to most viewing system
•  Rugged and splash proof
•  Waist strap, shoulder strap, fanny pack or backpack
•  80 element ruggedized probe with "easy on the arm" 10' probe cable
•  Easy access Freeze button
•  100 frames store to machine.
•  Direct or wireless export image to computer.
•  Cine loop: 240 frames.
•  Dimension: 18*14.5*4.5cm
• Warranty: 24 months warranty for the ultrasound and probe

Power supply


Standard configuration
• 1. Main unit 1 unit
• 2. 6.5MHz linear array rectal probe 1 PC
• 3. Power adapter 1 PC
• 4. Internal battery 1 PC
• 5. Charger 1 PC
• 6. LEMO connector 1BHTN07P3.5N 1 PC
• 7. Probe holder 1 PC
• 8. Strap 1 PC
• 9. Power cord 1 PC
• 10. Plastic seal box 1 PC
• 11. Goggle 1 PC

Optional parts
• 1. 3.5 MHz convex array probe
• 2. 4.0MHz convex array transrectal probe
• 3. 6.5 MHz micro convex probe
• 4. Video recorder P93W-S
• 5. Wrist micro display & Wireless receiver
