Continuous Playback Digital Vet Ultrasound Machine Displayed Under B Mode

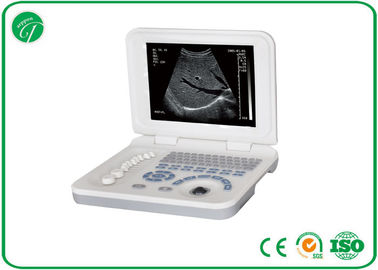

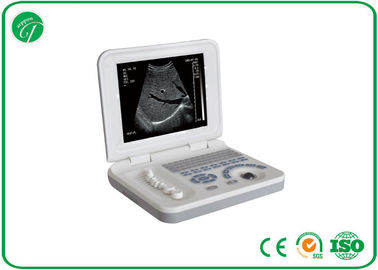

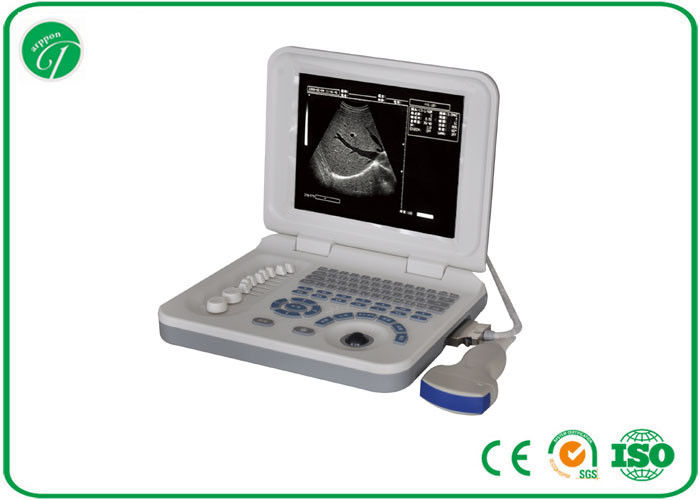

Large Image : Continuous Playback Digital Vet Ultrasound Machine Displayed Under B Mode

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018VL

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Display Mode:	B, B/B, 4B, B+M, M	Scanning Depth:	≥ 170mm
Blind Area:	≤4mm	Pre-treatment:	Variable Aperture, Dynamic Apodization, Dynamic Digital Filtering.
After Treatment:	8 Types Correction	Dynamic Range:	0~120dB Adjustable
Body Marks:	8	Continuous Work Hours:	≥ 8h
Input Power:	≤ 300VA	Power:	AC 220V±22V 50Hz
High Light:	Animal Ultrasound Machine , Livestock Ultrasound Machine

Digital Portable Veterinary Ultrasound Scanner/machine Diagnostic System

PL-3018VL Veterinary Laptop Ultrasound Scanner

Applications:
Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Specifications:

Display Mode	B, B/B, 4B, B+M, M.
Magnification	×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0.
Scanning depth	≥ 170mm.
Blind area	≤4mm.
Pre-treatment	variable aperture, dynamic apodization, dynamic digital filtering.
After treatment	8 types γ correction, line correlation, frame correlation, point-line correlation, linear interpolation,
Dynamic range	0~120dB adjustable.
Monitor	10.8 inch LCD high-resolution.
Grey scale	256
Body marks	8
Puncture guide	displayed under B mode.
Gain control	8 segments TGC and full gain can be adjusted respectively.
Image reverse	left/right, black/white, up/down.
Cine loop	256
Permanent storage	128
Image display	continuous playback, pieces of view Video
Output interface	SVGA, PAL, video recorder and Image workstation and etc, USB output.
Power	AC 220V±22V 50Hz
Input power	≤ 300VA
Continuous work hours	≥ 8h.

Standard Configuration:
.Scanner Body: 1pc
.3.5MHz Convex probe: 1pc
.External li-ion Battery: 1pc
.Charger with a Set of wires: 1set
.Handy bag: 1pc
.Bottle of USG gel: 1pc
.Transportation Case: 1pc
.User Manual: 1pc
