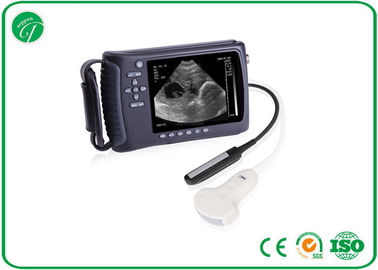

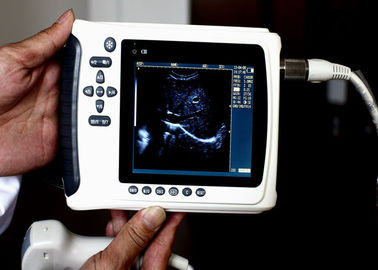

Animal Inspection Tool Palm Vet Ultrasound Machine For Cow Dog Micro - Convex Probe

Large Image : Animal Inspection Tool Palm Vet Ultrasound Machine For Cow Dog Micro - Convex Probe

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018V NEW

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Resolution(mm):	Lateral, ≤3(depth≤80)	Monitor Size:	5.0" TFT-LCD
Image Gray Scale:	256	Vices Brand Name:	Darppon
Displayed Depth(mm):	192	Blind Zone(mm):	≤6
Display Mode:	B, B+B, B+M, M, 4B	Scan Depth:	120mm-220mm
Model Number:	3018V NEW	Detect Depth(mm):	≥80
High Light:	Animal Ultrasound Machine , Veterinary Portable Ultrasound

Animal Inspection Veterinary Ultrasound Scanner Used for Cow Dog Pig Sheep

Applications:
Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Brief introduction:
This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment.
It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF),
real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF),
digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

Specifications:

Displayed Depth(mm)	192
Detect depth(mm)	≥80
Resolution(mm)	Lateral, ≤3(depth≤80), ≤5(80
Blind zone(mm)	≤6
Geometric position precision	Horizontal≤7.5; Vertical≤5
Monitor size	5.0” TFT-LCD
Display mode	B, B+B, B+M, M, 4B
Image storage	128
Image gray scale	256
Scan depth	120mm-220mm
Cine loop	≥400 frame
Posture mark	15
Focus position	adjustable
Probe frequency	adjustable (3 point each probe)
Frame correction	adjustable
Image flip	up/down, left/right
Image process	histogram, color encode, gama, image smooth
Measurement	distance, circumference, area, volume, heart rate, gestation age, EDD
Notation	date, time, name, sex, age, full screen words edit and etc.
Output report	regular
Output	USB2.0, VIDEO( PALD, NTSC)
Machine size	230mm(L) x 120mm(W) x 38mm(H)
N.W	700G
Battery continuous work	≥3 hours

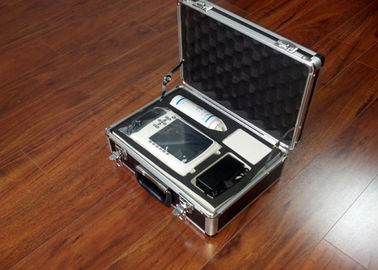

Standard Configuration:
. Scanner Body: 1pc
. Li-ion Battery: 1pc
. 3.5MHz Convex Probe: 1pc
. Charger with a Set of Wires: 1set
. Wrap Bag: 1pc
. CD: 1pc
. Bottle of USG gel: 1pc
. Transportation Case: 1pc
. User Manual: 1pc
Optional:
. 5.0MHz Micro-convex Probe
. 6.5MHz Rectal Probe
. 7.5MHz Linear Probe
. Backfat Probe
. Goggle

Animal Inspection Tool Palm Vet Ultrasound Machine For Cow Dog Micro - Convex Probe
