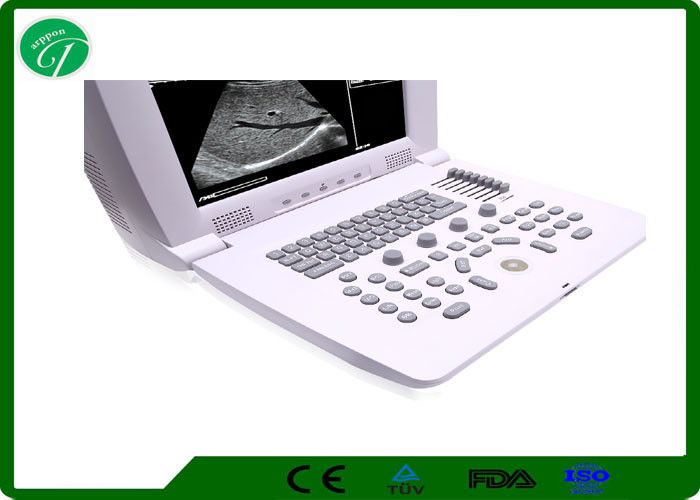

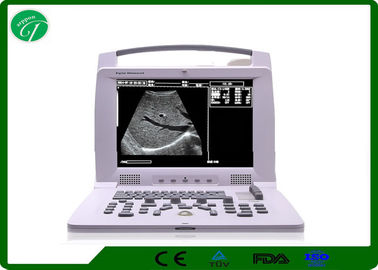

Full Screen Laptop Vet Ultrasound Machine 2 Probe Connectors Micro Computer Control

Large Image : Full Screen Laptop Vet Ultrasound Machine 2 Probe Connectors Micro Computer Control

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	3018VP

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Monitor:	Imported 12 " LCD	Probe Frequency:	2.5Mhz-8.5Mhz
Monitor Size:	12 Inch	USB Ports:	2
Brand Name:	Darppon	Probe Elements:	96
Detect Depth(mm):	≥60	Focal Space:	5 Level
Model Number:	3081VP	Probe Connectors:	2
Power Supply:	AV220V±22V, 50MHz±1MHz	Display Mode:	B, B+B, B+M, M, 4B
High Light:	Animal Ultrasound Machine , Veterinary Portable Ultrasound

laptop Portable Veterinary Ultrasound Machine for Vet Use with 2- probe connectors

PL-3018VP Veterinary Portable Ultrasound Scanner

Applications:
Ovine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Description:
This equipment is convex linear ultrasound scanning diagnostic system with high resolution. It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF),real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),digital frequency scan (DFS), 8 segments digital TGC, guide cannula puncture, frame correlation technologies to endue its image with clarity, stabilityand high resolution.

Features:
For real-time picture uploading to PC;
2 USB ports;
2- probe connectors;
Monitor: imported 12 " LCD;
Probe elements : 96;
Power Supply: AV220V±22V, 50MHz±1MHz;

Specifications:
Probe frequency: 2.5Mhz-8.5Mhz
Displayed Depth(mm): 240(max.), 16 levels adjustable
Detect depth(mm): ≥60
Resolution(mm): Lateral, ≤2(depth≤80), ≤3(80
Blind zone(mm): ≤7
Geometric position precision: Horizontal≤15; Vertical≤10
Monitor size: 12 inch
Display mode: B, B+B, B+M, M, 4B
Image storage: 32
Image gray scale: 256
Scan depth: 40mm-240mm
Cine loop: 809 frame (max.)
Posture mark: ≥40
Dynamic range: 100dB-130dB
Image flip: up/down, right/left, black/white
Scan angle: adjustable
Focus position: adjustable
Focal space: 5 level
Measurement: distance, circumference, area, volume, heart rate, gestation age, EDD
Notation: date, time, name, sex, age, full screen words edit and etc.
Output report: 2 type
Output: PALD, NTSC
N.W: 6KG

Standard Configuration:
. Scanner Body: 1pc
. 3.5MHz Convex Probe: 1pc
. Charger with a Set of Wires: 1set
. Bottle of USG gel: 1pc
. User Manual: 1pc

Optional:
. 7.5MHz Linear Probe
. 5.0MHz Micro-convex Probe
. Video Printer
