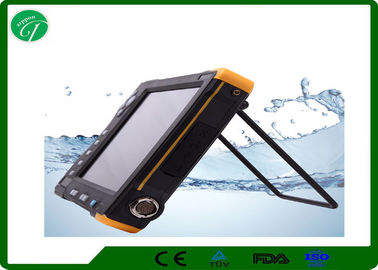

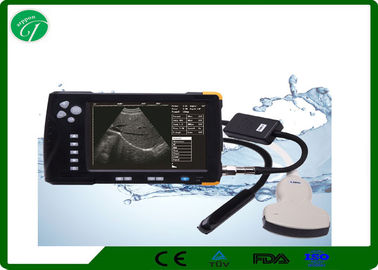

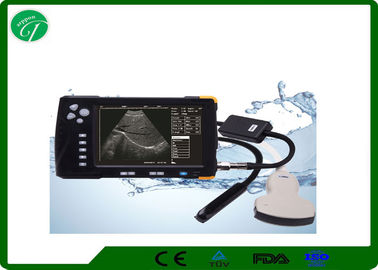

Far Field Gain Vet Ultrasound Machine With Frame Correlation Single - B Display

Vet Handheld Ultrasound scanner/Light weight and convenient/ Diagnostic Equipment for Animal

Applications:
Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.

Brief introduction:
Image smoothing, filtering, edge enhancement, frame correlation, linear interpolation and other processing, the image is crisp and clear, high resolution.
Measured for distance, perimeter, area, obstetric and etc.
Individually adjustable near field, far field gain (5 stage adjustable).
Single-B display, continuous real-time status in the field of vision to move the function.
With display playback, gamma correction, histogram and other image processing functions.
With built-in memory, and has an external USB interface, the built-in memory data transfer to PC.
Light weight and convenient.

Specifications:
Detect Depth(mm): ≥50
Resolution(mm): Lateral, ≤2(depth≤80); Axial, ≤1(depth≤80)
Blind zone(mm): ≤3
Geometric position precision: Horizontal≤5; Vertical≤5
Monitor size: 7”-TFT
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Scan range: convex array, linear array
Scan lines: 512 lines/ frame
Frame rate: 30 frame/second
Digital scan converter: 512x512x8bits
Body marks: ≥15
Multi-frequency: 2MHz-10MHz
Memory capacity: ≥2GB
Video output: PAL
Battery: 3000Mah/7.4V
Battery continuous work: ≥3 hours

Size: 228mm x 152mm x 37mm
N.W: 900G

Standard Configuration:

. Scanner Body: 1pc
. Li-ion Battery: 1pc
. 3.5MHz Convex Probe: 1pc
. Charger with a Set of Wires: 1set
. Wrap Bag: 1pc
. Bottle of USG gel: 1pc
. Transportation Case: 1pc
. User Manual: 1pc

Optionals:

. 7.5MHz Linear Probe
. 6.5MHz Rectal Probe
. 5.0MHz Micro-convex Probe
. Backfat Probe
. Video Printers

. Video Goggles
. Video Wire
