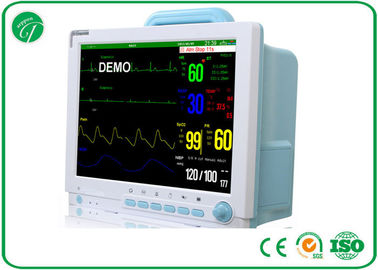

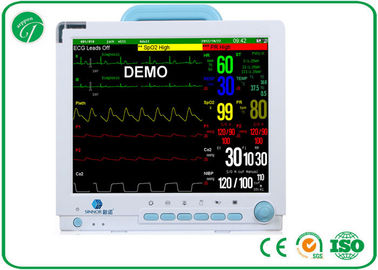

Wall Amount Vital Sign Monitoring Devices , Icu Patient Monitoring 15 Inch SPO2 Board

          6 Parameters Built-in 8 language Patient monitoring equipment with15 inch Large Screen​

Function:

1. Display: 15” color TFT screen, high resolution: 1024×768 dpi;
2. 6 Parameters: Standard – 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR;

Optional – 3/12-lead ECG, single/double IBP, double Temp.,

Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;

1. Patient Range: Suitable for Adult, Pediatric, Neonate;
2. Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic,

7 full ECG waveforms;

1. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish,

French, Russian, German, Italian);

1. Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP

records and 200 alarm event;

1. Battery: Built-in 2 hours rechargeable lithium battery, and battery volume

display. 4 hours rechargeable lithium battery (optional);

1. Network: TCP/IP networking platform, connect with central monitoring system.

Wifi central monitoring system (optional).

Feature:

1. Advance patient Manage: gender, full name, ID no., room no., bed no., weight,

height, blood type, paced or not, remakes;

1. Multi-parameter board: Separated parameter board, main board, ECG board,

SPO2 board, and NIBP board are independent;

1. Interface: Color, layout of each parameters can be set up by user need,

bed to bed view display(optional);

1. Fanless: Use special fanless cooling technology in the device to provide users

quiet environment;

1. Standby: Unique standby mode for energy saving and suspend monitoring;
2. Time delay: Time delay switch-off function to save data when monitor turn off

suddenly;

1. Easy software update: Users can update monitor software by themselves;
2. Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis;

SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;

1. Storage: external SD card slot enables memory extension(optional);
2. Data transfer: USB port to allow to transfer patient data to a PC (optional);
3. Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but

cheaper than it(optional);

1. Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;
2. Other optional: Touch Screen, Printer, Wall amount, VGA connect

Optional: Touch Screen, Printer, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, ETCO2, Sun Tech NIBP, Wall mount, VGA, Wifi

Performance Specifications

Standard parameter

Others

Safety:

Safety level: Class I, type CF

Dimension and Weight

Dimension: 28*42*48cm

G.W: <6.5KS

Operation Environment

Temperature: Working 0~+40℃

Transportation and storage –20~+60℃

Humidity: working≤85%

Transportation and storage≤93%

Power: AC 100-240, 50/60Hz

Accessories supplies

1. 5 lead ECG cable---------------------------------------- 1set

2. Adult Spo2 probe-------------------------------- ------ 1set

3. Adult NIBP Cuff and extension tube--------------- 1set

4. Temp probe---------------------------------------------- 1set

5. Ground connecting liner------------------------------ 1set

6. ECG Chest electrode (10pcs/pack)----------------- 1pack

7.2200mA lithium battery------------------------------- 1PCS
