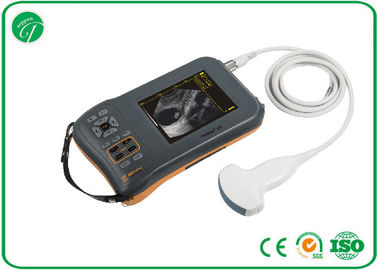

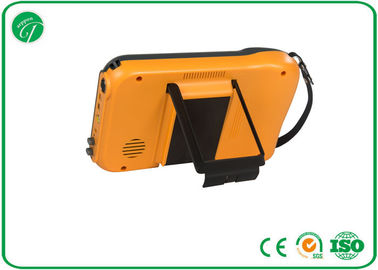

5.8 Inch TFT LCD Palm Portable Veterinary Ultrasound Machine For Animals Check

Large Image : 5.8 Inch TFT LCD Palm Portable Veterinary Ultrasound Machine For Animals Check

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	L60

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Detect Depth(mm):	≥50	Blind Zone(mm):	≤3
Geometric Position Precision:	Horizontal≤5; Vertical≤5	Monitor Size:	5.8"-TFT
Display Mode:	B, B+B, B+M, M, 4B	Image Gray Scale:	256
Scan Range:	Convex Array, Linear Array	N.W:	600G
Highlight:	Livestock Ultrasound Machine , Veterinary Portable Ultrasound

5.8 inches portable 0.6kg and more than 220mm Display Depth Vet Ultrasound Machine for all veterinary applications

Application:

FarmScan® L60 Featuring premium image quality,ergonomic design, fast and reliable detection of pregnancy and gynecological in difficult on-farm environment and weather;ideal scanner for all veterinary applications -bovine, equine, swine, ovine , Lama and small ruminants. It makes your diagnosis more precise and ensure determine the best time for insemination, early/late pregnancy and sex.

Feature:

Six (6) different probes , I.F.R™ introducer and I-Scan® video glasses, FarmScan® L60 can perform all veterinarian applications and even more easily.
Fast and reliable detection of pregnancy from 28 th day on cows, 13 th on mares, 25th on sheep and goats ,18th on pigs (pregnancy control, ovarian examinations, post partum diagnosis, )
Foetal sexing on cows , mares, sheep and goats
Back fat measurements on pigs, cows and sheep
Teats' control, genital bull tract exams,
Easy to use, learn, and teach
Precision aiming ability via ergonomically designed console and probe
32 digital channels and 128 elements probe
Video output, support I-Scan® video glasses eases your job and gets you focused (optional)
Easy-to-use, handheld probe
Color LCD screen for easy reading
Brightness controls
Portable, Reliable and durable design
Two batteries provided for continuous use
Support USB 2.0 for ultrasound station to transfer images and video to your computer, 450~550-frame cine loop and 128 images insider;
4.5~5.5 hours Li-ion battery for operating;
Support leather sheath, designed to be resistant to extremely harsh farm conditions;
Software & Report for reproductive system, and measurement for distance, area, circumference, volume, angel, heart rate;
Portability by a shoulder belt giving you total freedom of movements
Support leather sheath(easy-clean by running water), designed to be resistant to extremely harsh farm conditions;
I-Scan® video glasses eases your job and gets you focused (optional)
Two-year warranty

Components:

Compact and easy-to-use features:
Color LCD display
Brightness control
Light and smart, hand-held designed
Two lithium-ion batteries
I-Scan® Video goggle
Neck strap and hand strap

Technical Specification:

Monitor	5.8 inches high resolution TFT LCD	Measurement	Distance, Circumference, Area, Volume
Display modes	B,M,B+B,B+M,4B Mode	Probe	Multi-frequency probe series
Display Depth	≥220mm, multi-steps	Image magnification	8 levels zoom in
Gray Scale	256	Character Annotation	Date, time, name, sex, age, doctor, hospital, full screen words edit
Operating time	4.5 hours of continuous operation	High speed USB socket	connect to PC & Printer, download image to PC
Net weight	0.6kg	Dimension	40mm X 250mm X 120mm

Standard configuration:

FarmScan® L60 machine
Abdominal convex probe (or selected one of optional probes:Rectallinear,Rectal convex, high frequency linear,Micro-convex)
Li-ion high power capacity battery
Battery charger
Neck strap and hand strap
User guide
Aluminum alloy carry case

Optional Configuration:

optional probes:Rectallinear,Rectal convex, high frequency linear,Micro-convexx,Abdominal convex
Li-ion high-power-capacity battery ;
Car Charger;
Battery charger
Video goggle
Wrist LED Monitor;
