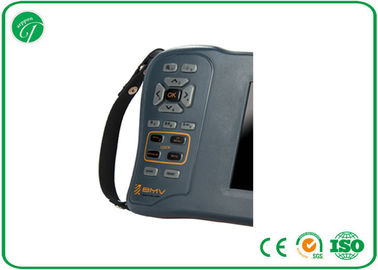

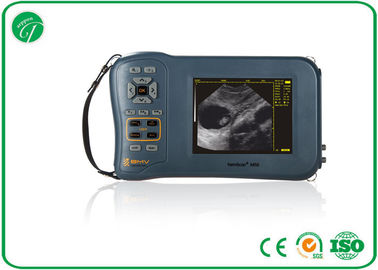

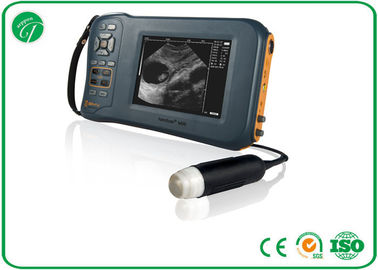

Digitalanimal Ultrasound Scanner , Hand Held Ultrasound Machine Obstetric Report

Large Image : Digitalanimal Ultrasound Scanner , Hand Held Ultrasound Machine Obstetric Report

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	M50

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Detect Depth(mm):	≥190mm, Multi-steps	Blind Zone(mm):	≤3
Geometric Position Precision:	Horizontal≤5; Vertical≤5	Monitor Size:	5.8"TFT
Display Mode:	B,B+B,B+M,M,4B	Image Gray Scale:	256
Probe:	2.5/3.5/5.0 MHz	N.W:	0.5kg
Highlight:	Livestock Ultrasound Machine , Veterinary Portable Ultrasound

5.8 inches 0.5kg handheld Vet Ultrasound Machine for all veterinary applications

Application:

FarmScan® M50, featuring premium image quality and robust design, suited for all veterinary applications in difficult field conditions on a daily basis. No matter you scan dairy or beef cows to study the ovaries, uterus and foetal structures for reproductive exams, as well as equine reproduction and some other small ruminants reproductive examination, FarmScan® M50 is the ideal choice!

Technical Specification:

Monitor	5.8 inches TFT LCD	Image control	Brightness, Contrast ratio
Display modes	B,B+B,B+M,M,4B	Obstetrics Measurement	GA for bovine,equine,swine,sheep,goat,cat,dog(Pig-HL,Sheep/goat- USD,Bovine-BL,SL,HL,Dog-BD,GSD,HD,BD)
Display Depth	≥190mm, multi-steps	Image magnification in four levels	×1.0,×1.2,×1.5,×2.0 times
Probe frequency	2.5/3.5/5.0 MHz	Image magnification	8 levels zoom in
Gray Scale	256	Operating time	6 hours of continuous operation
Report	Obstetric report	Net weight	0.5kg
Image Process	Image smoothen, histogram, pseudo color	Dimension	40mm X 250mm X 120mm

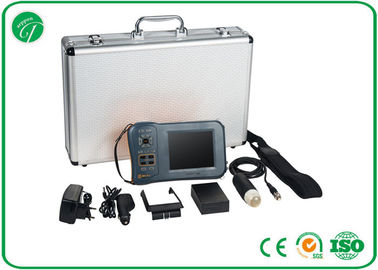

Standard configuration:

FarmScan® M50 machine
abdominal mechanical sector probe
Li-ion high-power-capacity battery (6 hours/battery )
Battery charger (AC110V~250V,50/60Hz)
Neck strap and hand strap
Aluminum alloy carry case
User guide

Optional:

Optional mechanical sector probe;
Li-ion high-power-capacity battery ;
Car Charger;
Leather cover for protection and sit on the wrist
I-Scan® Video Goggles
