| Scan Angle: | 73° | Element: | 128 |
|---|---|---|---|
| Frequency: | 2.0MHz - 6.0MHz | Maximum Scanning Depth: | ≥190mm |
| Dead Zone: | ≤3mm | Geometric Position Veracity: | Lateral≤5mm, Axial≤5mm |
| Interface Language: | Chinese, English | Date Format: | Select Yyyy-mm-dd, Mm-dd-yyyy Or Dd-mm-yyyy |
| Time Format: | 24-hour | Printer Setting: | Video Recorder, Laser Printer |
| High Light: | Medical Diagnostic Equipment,Digital Video Colposcope |
||

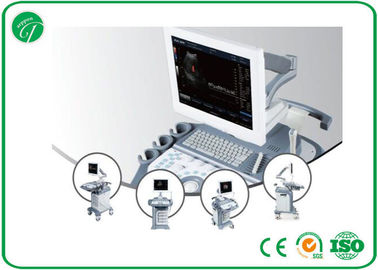

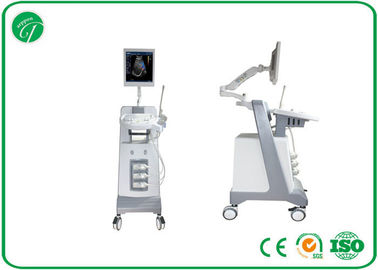

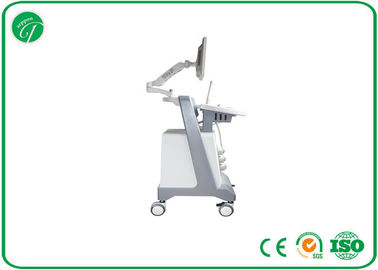

15" Full Digital Color Hospital Medical Equipment With 3 Active Probe Interfaces
1.System Features:
Systemic applications include abdomen, obstetric, gynecology, blood vessel, small parts, cardiology, urology, newborn and pediatrics etc. The system has 2D/CFM/PDI/PW/M scanning modes and provides the perfect resolution and sensitivity. It supports convex array probe, linear array probe, phased array probe and intra-cavity probe etc. Integrative network ultrasonic workstation, support for DICOM transmission. It uses embedded computing system, which makes system security, stability and high-speed operation.
2.General Specifications:
|
Dimension |
780 mm (H)* 575mm (W) *1300mm (L) |
|
Weight |
Approximate 86 kg |
|
Power supply |
100/230V (±10%);60/50Hz;Maximum power 350VA |
|
Monitor |
15-inch high-definition progressive-scan flicker-free color medical monitor Up/down tilt (±15 degrees), left/right rotate (±75 degrees) |
3.System Description:
3.1 Apply range
Systemic applications include abdomen, obstetric, gynecology, cardiology, blood vessel, urology, small parts, galactophore, pediatrics, newborn imaging, fetal cardiac imaging and puncture etc.
3.2 Probe scan parameters
Electronic convex array probe
|
Scan angle |
73° |
|
Element |
128 |
|
Frequency |
2.0 MHz - 6.0 MHz; Broadband 5-segment variable frequency |
|
Maximum scanning depth |
≥ 190mm |
|
Dead zone |
≤ 3mm |
|
Resolution |
axial resolution ≤ 1mm, lateral resolution ≤ 2mm |
|
Geometric position veracity |
lateral ≤ 5mm, axial ≤ 5mm |
Electronic linear array probe
|
Element |
128 |
|
Frequency |
5.0 MHz - 12 MHz; Broadband 5-segment variable frequency |
|
Maximum scanning depth |
≥ 120mm |
|
Dead zone |
≤ 3mm |
|
Resolution |
axial resolution ≤ 1mm, lateral resolution ≤ 2mm |
|
Geometric position veracity |
lateral ≤ 5mm, axial ≤ 5mm |
Electronic micro-convex intra-cavitary probe
|
Scan angle |
149° |
|
Element |
128 |
|
Frequency |
4.5 MHz - 9.0 MHz; Broadband 5-segment variable frequency |
|
Maximum scanning depth |
≥ 80mm |
|
Dead zone |
≤ 3mm |
|
Resolution |
axial resolution ≤ 1mm, lateral resolution ≤ 2mm |
|
Geometric position veracity |
lateral ≤ 5mm, axial ≤ 5mm |
Electronic phased array probe
|
Element |
64 |
|
Frequency |
2.5 MHz - 5.0 MHz; Broadband 5-segment variable frequency |
|
Maximum scanning depth |
≥ 180mm |
|
Dead zone |
≤ 8mm |
|
Resolution |
axial resolution ≤1mm, lateral resolution ≤ 2mm |
|
Geometric position veracity |
lateral ≤ 5mm, axial ≤ 5mm |
Electronic micro-convex probe
|
Scan angle |
101° |
|
Element |
128 |
|
Frequency |
2.5 MHz - 5.0 MHz; Broadband 5-segment variable frequency |
|
Maximum scanning depth |
≥ 180mm |
|
Dead zone |
≤ 3mm |
|
Resolution |
axial resolution ≤ 1mm, lateral resolution ≤ 2mm |
|
Geometric position veracity |
lateral ≤ 5mm, axial ≤ 5mm |
3.3 Probe interfaces:
