Home Health Care Medical Equipment For Easy ECG Monitor Color LCD Display

home use Medical Equipments ECG Monitor for those suffer from cardiovascular disease



Easy ECG Monitor



Designed for home use with the purpose of health care, and is suitable for users who may suffer

from cardiovascular disease, such as hypertension, diabetes, coronary heart disease etc.

It can be used to check their heart conditions regularly, and the stored ECG records can

be used as a reference for clinical ECG examination.



Product description

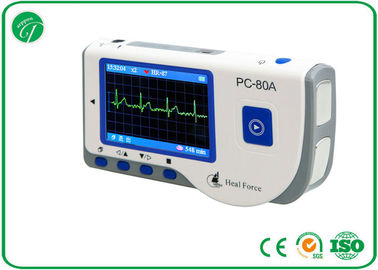

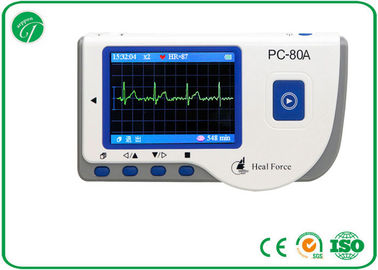

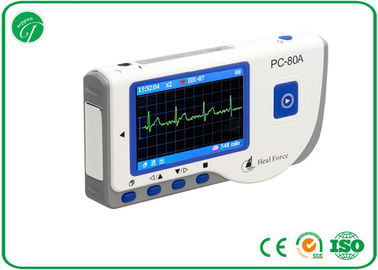

PC-80A is a compact, portable handy device for patients (or professionals) to record 30 seconds

of ECG data anytime or anywhere, comfortably, with or without electrodes.



Its large, high resolution LCD display gives clear, easy to read results and is suitable

for use in hospitals, clinics, health centres, nursing homes, residential homes, offices etc.



It gives accurate and reliable readings at your most convenience if it is for private use.



It is also cost effective to health professionals as patients are screened and filtered at this stage

before referring them to hospitals.



If you have any questions or concerns in any of the ECG records,

you can capture the recording and mention it to your health professionals for advice.



Data can be transferred to PC, laptop etc should it need to be shown and analysed further by health professionals.



A cable for data transfer plus the ECG waveform viewer software CD are also included to

aid you a hassle-free transfer.



In addition to this, a manual with picture illustrations is enclosed to

walk you through the process.



Specification:



1. Display



- Display Mode: Color LCD display

- Screen Size (mm): 240*160



2. ECG Measurement



- The number of measuring channel: Single channel ECG signal

- Electrodes: 3 embedded metal electrodes or 3 adhesive ECG pads connected to the connector of the device  with lead wire

- Heart Rate Range: 30-240bpm

- Heart Rate Accuracy: ±2bpm or ±2%, whichever is greater

- Display Scale: 5mm/mV ±10%

- Common-mode rejection ratio (CMRR): ≥60dB

- Wave Form Sweeping Speed: 20mm/s±10%

- Measurement Modes: the detecting ECG signal can be detected by the following lead selection:

 1) Palm (both hands on unit)

 2) Chest (right hand and chest)

 3) Leg (right hand and left leg)

 4) ECG lead wire



3. Power



- Power Supply: 2*AAA alkaline batteries

- Supply voltage range: 2.7-3.3VDC

- Max average working current: ≤50mA

- Auto power-off: 35s±5s (without operation)



4. Classification



- The type of protection against electric shock: Internally powered equipment

- The degree of protection against electric shock: Type B appiled parts

- The degree of protection against harmful ingress of liquid: Ordinary equipment without protecting against      ingress of liquid

- Electro-magnetic Compatibility: Group I, Class B



5. Data Memory



- Up to 10-hour data records can be saved in the built-in memory

- Stored data records can be uploaded to the computer by data cable



6. Operating environment:



- Operating Temperature: 5°C-40°C

- Operating Humidity: 30%-80%

- Atmospheric pressure: 70kPa-106kPa



7. Bluetooth transmission -Measurement results transmission to PC for future review and analysis.-Synchronous detection data for device and PC or Android



Energy saving technology

- Power supply management function, for 1 minutes automatic shutdown without signal -Support prompted the battery



Product feature



Small, portable and easy to operate



24 records storage and review, each record with 30-second ECG waveform and analysis result



Measurement of one channel ECG anytime, anywhere you like



Display of ECG waveform, heart rate, analysis results and battery status on the backlight LCD



Measurement results transmission to PC for future review and analysis



Auto power-off while no key is pressed 10 seconds



Analysis and presentation for 8 types of arrhythmia



2 batteries can take 500 times measureme
