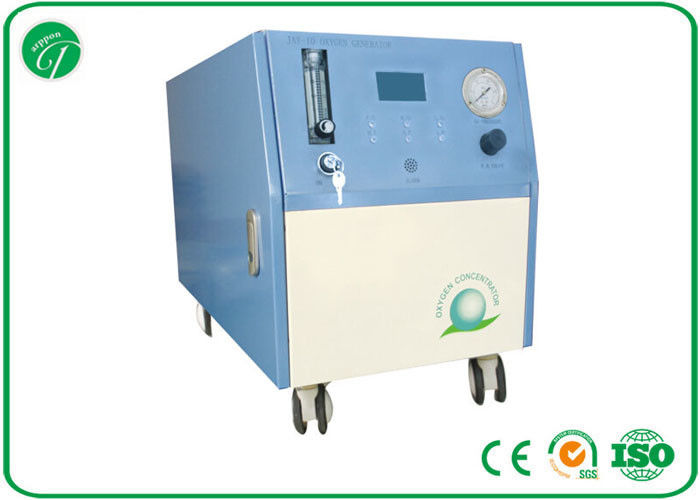

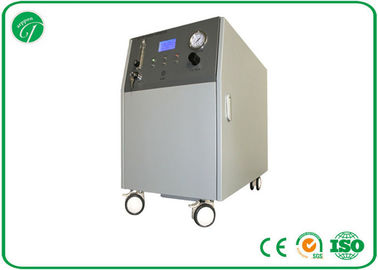

High pressure industrial oxygen generator machine / O2 generator JAY - 20

Large Image : High pressure industrial oxygen generator machine / O2 generator JAY - 20

Product Details:

Place of Origin:	CHINA
Brand Name:	Darpppon
Certification:	FDA
Model Number:	Jay-20

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	negotiation
Packaging Details:	standard export package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Type:	Industrial Oxygen Concentrator	LCD:	Accumulating Time; Present Time,
Flow Rate:	20L/min	Outlet Pressure:	0.14-0.4/Mpa
Model Number:	JAY-20	Oxygen Concentration:	93%
Sound Level:	<60	Display:	LCD Display Screen
Highlight:	Health Medical Equipment , Home Health Care Equipment

High pressure industrial oxygen generator machine / O2 generator JAY - 20

The high pressure oxygen generation plant we provide is produced with advanced technology and has outlet pressure of 0.14-0.4Mpa. Outlet pressure of ordinary oxygen generating equipment is only 0.04-0.07Mpa. Our high pressure oxygen concentrator is suitable for being used in the welding and cutting process in industrial fields and it can also be used to supply oxygen in fish farms.

Our JAY-10, JAY-15 and JAY-20 industrial oxygen concentrators (with high pressure of 0.14-0.4Mpa and ordinary pressure of 0.04-0.07Mpa) has the following advantages:
1. Our oxygen generating equipment adopts safe and economical PSA technology to produce oxygen.
2. The flow rare is adjustable in the range of 0-20L/min.
3. Our oxygen concentrator is equipped with OCSI (oxygen concentration status display) and the oxygen concentration is adjustable. The highest oxygen concentration can be about 90%.
4. Designed with timing function, the oxygen producing machine will stop working automatically when it reaches to the preset time.
5. Our industrial oxygen gas generator has a large digital LCD display which can indicate the operating pressure, internal operating time, present working time, accumulated working time and the preset time.
6. Configured with temperature alarm, high/low pressure alarm and power failure alarm, this oxygen generating machine is safe to use in industrial production.

Technical Parameters

Model	JAY-10	JAY-15	JAY-20
Oxygen flow (L/min)	0- 10	0-15	0- 20
Oxygen concentration	93% (± 3%)
Outlet pressure (Mpa)	0.04-0.07/0.14-0.4
Rated power (VA)	550/600/850W	1500/ 1550W	1100/ 1800W
Operation voltage (V/Hz)	AC230V, 50Hz;Optional: AC220V/ 110V (±10%), 50/60 (±1Hz)
Alarm	Power failure; low/high pressure; temperature (optional); low concentration (optional); maintenance reminding after 3000 hours' operation (optional)
Sound level (dB)	≤55	≤60	≤55/60
LCD display	Accumulated timing; present timing; timing
Large LCD display (optional)	Pressure indication (accuracy: 0.001MPa); Accumulated working time (range: 0-10000hours); Present working time (accuracy:1 minute); Preset time (accuracy: 1 minute) Optional: temperature indication (accuracy: 0.1); Oxygen concentration indication Maintenance reminding
Electrical safety classification	Class II Type B
Product category	Class II a
Net Weight (kg)	30/45/65	85/118	60/125
Dimension (mm)	380×380×560/ 365×375× 600830×360×600	920×360 ×660mm 860×580×660mm	700×390×530/ 860×640×660mm
Low concentration alarm (Optional)	When oxygen concentration is 85% or above, the blue lamp is on; when oxygen concentration is below 85%, the red lamp is on, indicating low concentration.
