Product Details:
Payment & Shipping Terms:
|
| Gray Scale: | 256 Grades | Color Scale: | 256 Grades |
|---|---|---|---|
| Monitor: | 15"flicker Free High Resolution Medical Color LCD | Use: | For Human |
| Application: | Abdomen, Gyn, Ob, Urology, Cardiac, Small Parts | Weight: | 17kg |
| High Light: | Medical Diagnostic Equipment,Digital Video Colposcope |
||

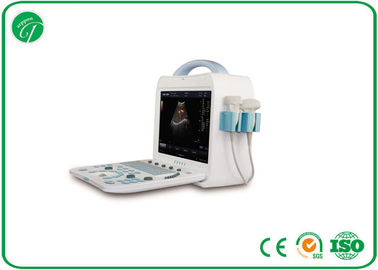

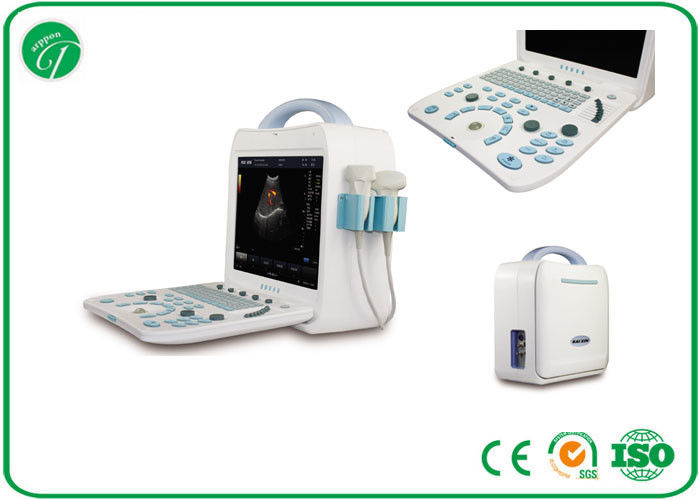

3 Probe sockets high resolution diagnostic ultrasound machine for Human
1. Comprehensive benefits and products advantages
DCU10 is designed by modularization. It is built on PC platform with high compatibility and huge volume hard disk to collect data and patient information easily, and it is convenient to connect into internet. Due to enough space, DCU10 could be added more function in future. With well-chosen ultrasonic hardware system, DCU10 is more steady and rapid.
DCU10 is such a high-quality, economical and practical color doppler ultrasound scanner with perfect cost performance. It offers many application modes: B mode (includes B/B mode,4B mode), B/M mode(includes M mode), CFM mode, PDI mode, PW mode, CW mode.
DCU10 is good at high definition image which is benefit for the doctor’s accurate observation.
In Doppler mode, DCU10 is very sensitive to catch the blood flow, and the distinct image quality will be reliable for doctor’s diagnostic.
With 3 probe sockets, DCU10 supports many probes including convex probe, high frequency linear probe, micro-convex probe which for pediatric, trans-vaginal probe, cardiac phase array probe. All of these probes are multi-frequency probe.
DCU10 color Doppler ultrasound scanner is portable and beautiful on appearance so that could be used in point of care, operation room, ambulance, physical examination, etc. Also it can be used on trolley for mobile diagnostic.
With powerful PC platform, DCU10 could connect into Internet for host system error testing, and offer the solution on line. By modular design on hardware structure, maintenance is much more simple than ever.
DCU10 is very competitive on cost performance, meanwhile manufacture offers free software update to guarantee the user’s investment value.
2.General Specifications:
|
Dimension |
416 mm(L) *205 mm(w) * 422mm(H) |
|
Weight |
Approximate 17 kg |
|
Power supply |
100-240V~ frequency:50-60Hz 3.0A MAX |
|
Monitor |
15"flicker free high resolution medical color LCD |
3. Media & peripheral device:
3.1 Printer
3.2 Video printer
3.3 I-station integral work station for image storage, report generation and cloud print.
3.4 U-disk, DICOM port, convenient for doctor to manage data, supporting for transmission.
3.5 TV output port.
3.6 Foot switch available.
4. Probe socket:

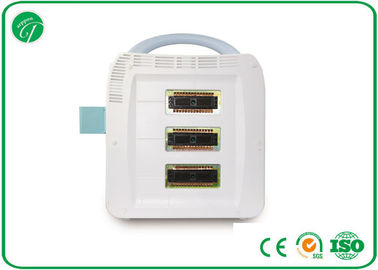

Probe socket:3 probe socket,automatically identify the probe, support several optional probes
(convex, linear, micro-convex, trans-vaginal, phased array).
5. Measurement / Calculation:
Standard configuration:
| 1 | Main unit 1pc |
| 2 | Power adapter 1pc |
| 3 | 3.5MHz convex probe 1pc |
| 4 | 7.5MHz High-frequency linear probe1 pc |
Optional configuration:
| 1 | 3.5MHz Micro-convex Probe |
| 2 | 7.5MHz Trans-vaginal Probe |
