Product Details:
Payment & Shipping Terms:
|
| Model NO: | DCU12 | Scale: | Large |
|---|---|---|---|
| Probe Socket: | 2 | Use: | For Human |
| Medical: | Using For Ob, Gyn, Urology, Abdomen | ||
| High Light: | Modern Medical Equipment,Medical Diagnostic Equipment |
||

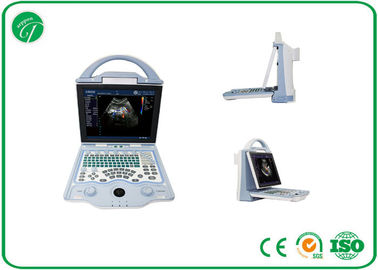

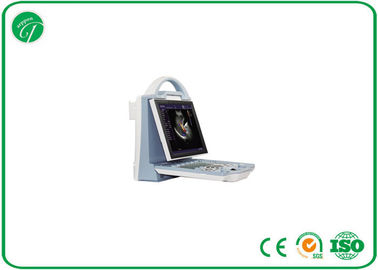

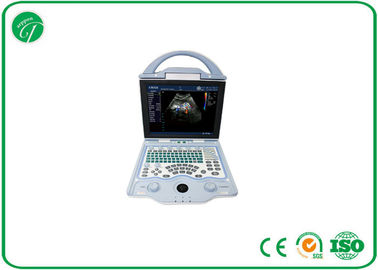

Knob design 10.4" Color Doppler Ultrasound Scanner , Human doppler medical equipment
1. Application:
Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.
2. Parameters:
| Specification parameters | 1. Grey scale: 256 level 2. Color scale: 256 level 3. Display: 10.4'flicker-free high-resolution medical color LCD 4. Power: 100-240V, 1.2-0.6A frequency: 50-60Hz 5. Adapter output: DC12.8V 3.0A 6. Power consumption: ≤100VA 7. Main unit size: 256*150*326(mm, Length*width*height) 8. Unit net weight: 4.5Kg(Accessories not included) |
| Multi-media and accessory equipments | 1. Video recorder 2. I-station integral work station, realize image storage, report form and cloud print 3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission. 4. Dual-mode TV output: PAL/NTSC |
| Probe port | Two enabled probe ports, automatic identification technology, available to optional probe configuration. |
| Language | Menu operation, interface language: English/Chinese switch alternatively |
3. System feature:
Adopt A8 embedded system. High reliability to keep virus away thoroughly.
Operation system: Limux system, English/Chinese menu switch alternatively.
Full digital multi-beam formation technology, high precision delay dynamic receiving focusing, ultra-wide frequency imaging, adaptive image optimization processing technique, adaptive vessel imaging, adaptive Doppler imaging.
Ultra-wide frequency full digital beam former: Dynamic focuse
Two-dimensional grey scale imaging unit
M imaging unit
Visible and adjustable dynamic range
Two-dimensional imaging unit, grey scale ≥ 256 level, excellently detailed and comparative resolution and full-screen uniformity
4. Operation Mode:
5. Ultrasonic imaging technology:
6. Measurement report:
OB measurement report, GYN measurement report, cardiac measurement report, urology measurement report and other measurement report, automatically store the measurement result and generate report
7. Configuration:
7.1 Standard Configuration:
| 1 | Main unit:1 pc |
| 2 | 3.5 MHz convex abdomen probe:1 pc |
| 3 | You can choose 1pc probe from below: >6.5 MHz trans-vaginal probe > 7.5 MHz linear probe |
| 4 | Workstation software: 1 set |
| 5 | Reticle:1 pc |
7.2 Optional Cofiguration:
| 1 | Foot Switch |
| 2 | Trolley |
| 3 | Video Recorder |
