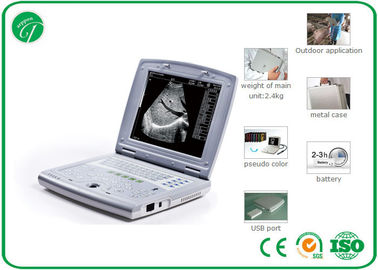

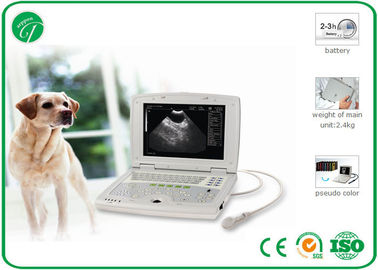

10.4" LED B mode Vet Ultrasound Machine , Portable Droppler ultrasound veterinary equipment

10.4" LED B mode Vet Ultrasound Machine , Portable Droppler ultrasound veterinary equipment

Features:

• Laptop, slim design, smart and light, easy to carry, convenient for examining.​

• 0.4 inch High resolution color LED monitor, high brightness, high contrast, wide visual, image clear and exquisite.

• Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.

• OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.

• Automatically calculate backfat and lean percentage of swine.

• 100 frames permanent storage, 256 frames cine loop.

• Eight pseudo colors (incl.B/W).

• Light touch keyboard, trackball and encoder, easy operation for doctor.

• High speed USB port support high-capacity USB disk, and support the color laser printer print out all kinds of image and reports which make the output of diagnosis more convenient and simple.

• Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.

• Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.

Parameter:

• Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.

• 10.4" High resolution color LED display, high brightness, high contrast, wide visual, and clear image.

• Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.

• Single probe socket, automatically identify the probe, support several optional probes.

• Body mark: 1. general cardiac 2.bovine 3.canine 4.equine 5.feline 6.cadioloy, 7.swine---7 kinds, total 27 pcs for body marks with probe position.

• Display mode: B,2B,4B ,B/M,M, total 5 kinds.

• 10 kinds of Magnification, maximum display depth is 240mm.

• Gain range: 0～127dB.

• Dynamic range: 27～90dB.

• Gray: 256.

• Intelligent TGC control: near-field and far-field adjustment.

• Adjustable and intelligent focus.

• Frame frequency: 30 frames/second.

• Pseudo-color: 8 kinds (incl. B/W).

• Permanent image storage: 100 frames.

• Cine loop: 256 frames.

• Puncture guiding function(2 guiding lines,angle and position adjustable).

• General measurement:distance,Perimeter, area (tracing method, ellipse method), volume, angle histogram, sectional view, Stenosis rate, etc.

• Cardiac measurements: depth, slope, heart rate, time.

• OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.

• Automatically calculate the Back fat and Lean percentage of swine.

• 6 kinds grid setting for quick measurement.

• OB report function.

• USB port support large capacity U disk (support document management/software upgrades/one-key storage), and color laser printer directly print various images and reports.

• Dual-mode TV output: ＰＡＬ/ＮＴＳＣ, it could connect to video recorder and ultrasonic working station.

• Adapter rating:100-240V～,50-60Hz,70VA. Output of adapter: DC12V 3.0A. Maom device rating:DC12V 3.0A. .

• Battery: high-capacity lithium Battery(2700mAh) ,more than 200 minutes work.

• Net weight: 2.2kg.

• Main unit size: 290x245x48mm(length x width x thickness).

Standard configuration:
