Product Details:
Payment & Shipping Terms:
|
| Name: | Knee Care Massager | Media: | Semiconductor & Light Emission Diode |
|---|---|---|---|
| Vibration Frequency: | 50Hz±1Hz | Laser Light: | 650nm (6pcs) |
| Net Weight: | 400g | Environmental Temperature: | 5 ℃ ~ 40 ℃ |
| Package Size: | 20cm X 13cm X 10cm | Power Supply: | DC 6.0V, 2A(Power Adaptor) |
| Highlight: | Health Medical Equipment,home care equipment |
||
Knee Pain Physical therapy Electric Knee Care Cold Laser Massager
Knee Care Laser Massager is an advanced therapy device which is combined with three-dimensional vibration technology and laser irradiation technology. It gives you three-dimensional massage as well as direct laser irradiation on your knee and joint cavity to improve microcirculation & metabolism in the irradiated area, increase richer blood supply to tissues. In addition, it increases tensile strength of tissue repair, resolves inflammation, reduces edema & stiffness in joints, and gives pain relief.
Multi-wavelength laser light irradiation accelerates blood circulation, promotes muscle metabolism, relieve symptoms of knee joint disease to relieve fatigue of the Knee. Moreover, laser irradiation stimulates the activation of satellite cells on muscle fibers, accelerates the self-healing effect, thus to enhance pain relief and accelerate the functional recovery.
|
Name
|
Knee care massager
|
|
Model Number
|
RG-XGBII
|
|
Media
|
Semiconductor & Light Emission Diode
|
|
Vibration Frequency
|
50Hz±1Hz
|
|
Laser light
|
650nm (6pcs)
|
|
Net Weight
|
400g
|
|
Environmental Temperature
|
5 ℃ ~ 40 ℃
|
|
Package Size
|
20cm x 13cm x 10cm
|
|
Power supply
|
DC 6.0V, 2A(Power Adaptor)
|

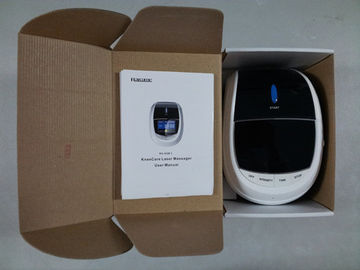

1. Take the Kneecare Laser Massager and its power adaptor out from package gently.

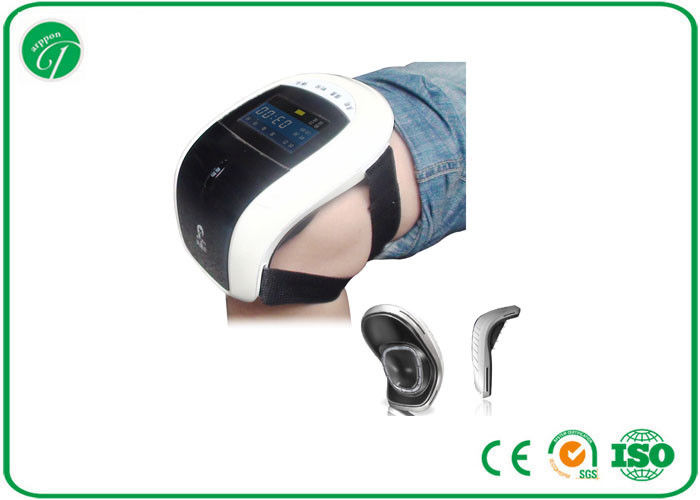

2. Put Kneecare Laser Massager on the surface of your knee and make the apparatus fixed with the patella properly.
3. To achieve the most favorable effect by irradiation & massage, knee bending angle should be around 100 degree ~130 degree.
4. When fixing apparatus on knee with bandage, make sure it is not too loose or too tight. Too loose is easy to cause apparatus to fall off so that the therapy effect would be unobvious. Too tight is easy to cause blood flow obstruction and uncomfortable.
5. Plug DC output connector of power adaptor into power jack of KneeCare Laser Massager, then connect power adaptor to power supply (220V, 50HZ).
6. Start-up: once power supply connected, press "Start" key, then appears LCD boot screen. When buzzer sounds two times, LCD screen will display production batch number, and then KneeCare Laser Massager enters into "standby" mode.
7. Time Adjustment: irradiation time can be adjusted from 3~12 minutes according to individual needs. The default value is 3 minutes.
8. Intensity Adjustment: It has 4 grades irradiation intensity (from grade1 to grade4) and can be adjusted according to individual needs. The default value is grade 1. Grade 1 is the weakest irradiation intensity, grade4 is the strongest irradiation intensity but without massage.
9. Working: When time and intensity is adjusted to what as you want, please press "Start" button, you will hear buzzer sounding three times and then apparatus goes to "Ready" mode. Press "Start" button again, buzzer sounds one more time, now apparatus starts to work.
10. Stop Working: When working time is up, irradiation will stop automatically until hearing four times buzzer sounds. If you need to stop it when working, please press "Stop" button and apparatus will return to the standby mode.
