1. System Application



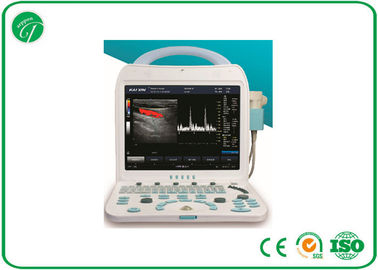

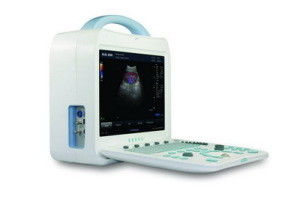

DCU10 Plus full digital color Doppler ultrasound scanner is available for the diagnosis of abdomen (including GYN and OB), superficial organs, cardiology, peripheral vessel, urology and others.



2. General Specification

• gray scale:256 grades

• color scale:256 grades

• monitor:15”flicker free high resolution medical color LCD

• Power supply:100-240V～ frequency:50-60Hz 3.0A MAX

• Power consumption:≤150VA

• Main unit size:416 mm(L)´205mm(w)´ 422mm(H)

• Net weight of main unit:approx 12Kg(not including probe)

• gross weight of whole machine: approx 17Kg

• Package size:approx 505 mm(L)´350mm(W)´ 640mm(H)

3.Media & peripheral device

• Printer

• video printer:sony UP-897MD；

• I-station integral work station for image storage,report generation and cloud print.

4. U-disk (support document management/software upgrades/one-key storage), DICOM port,

convenient for doctor to manage data, supporting for transmission.



5. TV output port.

6. Foot switch available.



4. Probe socket



Probe socket:3 probe socket,automatically identify the probe, support several optional probes

(convex, linear, micro-convex, trans-vaginal,phased array).



5.language



Menu operation: English

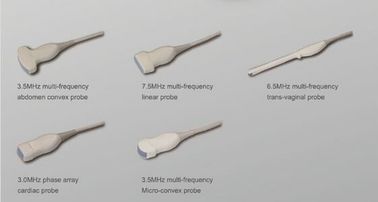

6.Probe specification



• 3.5MHz R60 broadband convex



1.Probe elements:96

2.Scanning angle:60°

3.Frequency scope:2.0MHz－5.0MHz

4 . 5 Multi-frequency:2.0/3.0/3.5/4.0/5.0 or could be set

5. Max scanning depth≥190mm depth range:107-246mm

6. Blind zone:≤5mm

7.resolution:axial resolution ≤1mm,lateral resolution≤2mm

8.precision of geometric location:lateral≤5%,vertical≤5%



• 7.5MHz L40 broadband linear

1.Probe elements:96

2.Frequency scope:5.0MHz－12.0MHz

3 5 Multi-frequency:5.0/6.0/7.5/9.0/12.0

4. Max scanning depth≥60mm depth range:38-115mm

5. Blind zone:≤3mm

6.resolution:axial resolution ≤0.5mm,lateral resolution≤1mm

7.precision of geometric location:lateral≤5%,vertical≤5%



• 6.5MHz R10 trans-vaginal broadband

1.Probe element:96

2.Scanning angle:135°

3.frequency scope:4.5MHz－9.0MHz

4. 5 multi-frequency:4.5/5.5/6.5/7.5/9.0

5. Max scanning depth≥60mm depth range: 46-154mm

6. Blind zone:≤4mm

7. resolution:axial resolution ≤1mm,lateral resolution≤1mm

8.precision of geometric location:Product Standard shows:lateral≤10%,vertical≤5%



• 3.5MHz R20 micro-convex broadband

1.Probe elements:96

2.Scanning angle:77°

3.Frequency scope:2.5MHz－5.5MHz

4 . 5 Multi-frequency:2.5/3.5/4.0/5.0/5.5 MHz

5. Max scanning depth≥140mm depth range:69-154mm

6. Blind zone:≤5mm

7.resolution:axial resolution ≤1mm,lateral resolution≤2mm

8.precision of geometric location:lateral≤10%,vertical≤10%



• 3.5MHz R16 electronic phased array

1.Probe elements:64

2.Frequency scope:2.5MHz－5.5MHz

3 . 5 Multi-frequency:2.5/3.5/4.0/5.0/5.5 MHz

4. Max scanning depth≥140mm depth range:69-154mm

5. Blind zone:≤5mm

6.resolution:axial resolution ≤1mm,lateral resolution≤2mm

7.precision of geometric location:lateral≤10%,vertical≤10%

7. Operating mode

1.B,B/B,4B mode

2.M,B/M mode

3.CFM

4.PDI

5.PW

6.CW

7.THI



8.System Setting

• Basic setting

• Language:english

• time and date setting

• Date format:yyyy-mm-dd,mm-dd-yyyy or dd-mm-yyyy

• screen protection

• patient ID

• Hospital name

• machine model

8. Unfreeze clear away measurement data ; automatically store currently parameters; hide M time dividing rule; hide PW time dividing rule.

• Printer option: print and other setting.

• network settings: machine IP address, local area network server, DICOM server setting.

• DICOM:ultrasound device; main unit DICOM serve, port and network connection test device.

• store: videotape, store format BMP, JPG (image compression format), storage path.

• doctor manage: doctor information, new construction, delete, etc.

• Annotation correlation: lesion,routine,OB, abdomen, GYN, Cardiology,urology, superficial organs, orthopedic surgery . Towards every item, preset major terms, you can add or correct to edit when necessary.

• probe preset: preset some probe information, convenient for user choose.

• application mode: abdomen, ob, cardiology, urology, superficial organ and multiple application. Factory default setting.; Gain current data ; default setting, etc.

• measurement

1.OB table setting.

2.measurement parameters setting.

• other item.

• formula preset:

• BPD:10 kinds formula

• CRL:7 kinds formula

• GS:4 kinds formula

• FL:10 kinds formula

• HL:3 kinds formula

• TAD:1 kind formula

• TTD:1 kind formula

• APTD:1 kind formula

• HC:5 kinds formula

• AC:6 kinds formula

• FT:2 kinds formula

• LV:1 kind formula

• THD:1 kind formula

• TCD:1 kind formula

• OFD:2 kinds formula

• EFW:12 kinds formula

• BSA:5 kinds formula

10. Primary Functions

• System preset function;

• Probe switching function;

• Mode conversion function;

• Magnification/depth range selection function;

• Frequency conversion function;

• Frame correlation function;

• Edge enhancement function;

• Compress curve adjustment function;

• Image post-process adjustment function;

• Focus position adjustment function

• Image up/down, left/right reversal

• Image freeze/unfreeze function

• Many segments adjustable TGC, adjustment of total gain and dynamic range

• Image optimization function

• Adjustable Dopple frequency, PRF, wall filter function

• Sensitivity, color persistence, color threshold, color balance, color smooth and artifact remove function

• Adjustable corrected angle, sample volume, linear color steering, velocity scale, baseline position function；

• Adjustable harmonics function

• B mode general measurement function

• M mode general measurement function

• CFM mode general measurement function

• PDI mode general measurement function

• CW, PW mode measurement function

• Abdomen application measurement function

• Obstetric application measurement function

• Cardiac application measurement function

• Urology application measurement function

• Superficial organs application measurement function

• Adjustable acoustic power

• Puncture guide function(2 guiding lines,angle and position adjustable)

• Storage: more than 150G

• Image management function

• Cine playback function

• Body marks function

• Information annotation function

• Input patient information function

• Automatically general report function

• Workstation function

• Chinese-English menu switch function

• Volume adjustable function

• image processing introduction

• Acoustic beam processing

Full digital acoustic beam technology, real time point-to-point dynamic receiving focus, continuous dynamic focus, real time dynamic adjustable variable aperture imaging technology,real time dynamic acoustic beam apodization, dynamic filtering, numerical control dynamic frequency scanning



• Image Pre-treatment

Gain:0～100 dB

TGC:8 stages TGC

Acoustic output(power adjustable):High,Middle,Low

Digital channels:24

• Image processing

IE:0～4

Frame correlation:0～5

IP(gamma correction):0～8

Compressing curve:0～15

• Scanning parameters

11,Measurement report

Obstetric measurement report,gynecology measurement report,cardiac measurement report,urology measurement report and other measurement reports,Automatically store measurement results and generate report

12,Body Mark

• 146 kinds of body marks with probe position, which can be quickly selected by intuitive and detailed body mark interface；

• Text mark can preset text content；

• Arrow mark

Standard configuration:

• Main unit 1pc

• Power adapter 1pc

• Accessory(see products list)

• 3.5C60H1C convex probe 1pc ；7.5L40H1CHigh-frequency linear probe1 pc

No	component
1	foot switch
2	printer



Optional configuration:



optional probe:



Model	Type	Center Frequency	Body Part	Clinical applicability
3.5C20H1C	Micro-convex(R=20)	3.5MHz	Body surface	Cardiac,abdomen ,pediatrics
6.5C10H1C	Intracavitary convex(R=10)	6.5MHz	Trans-vaginal	gynecology,obstetrics
2.75P16H1C	Phased array (L=16)	2.75MHz	Body surface	Cardiac
