Health Hospital Medical Equipment With A8 Embedded System 2 Probe

Health Hospital Medical Equipment With A8 Embedded System 2 Probe

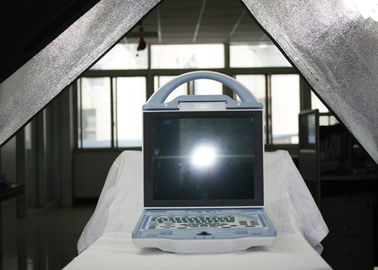

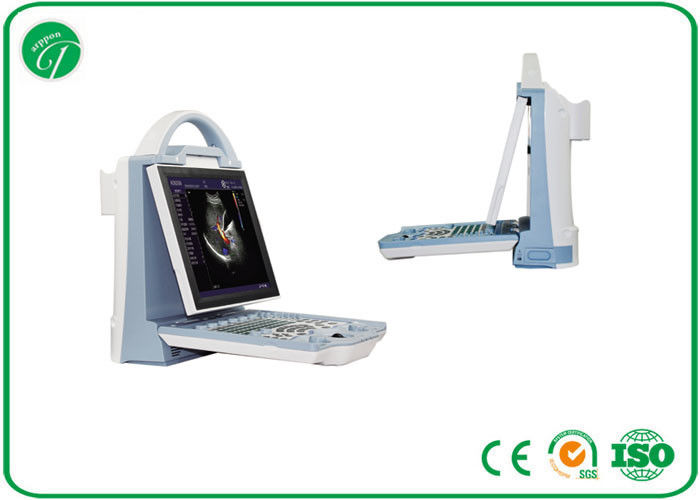

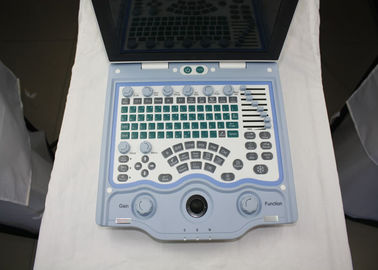

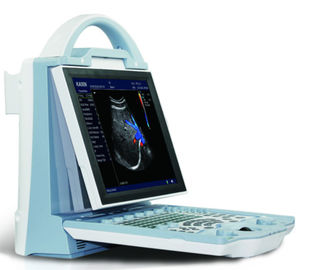

1. Designation: Full Digital Color Doppler Ultrasound Scanner

2. Application:

Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.

3. System feature:

3. 1 Adopt A8 embedded system. High reliability to keep virus away thoroughly.
3. 2 Operation system: Limux system, English/Chinese menu switch alternatively.
3. 3 Full digital multi-beam formation technology, high precision delay dynamic receiving focusing, ultra-wide frequency imaging, adaptive image optimization processing technique, adaptive vessel imaging, adaptive Doppler imaging.
3. 4 Ultra-wide frequency full digital beam former: Dynamic focuse
3. 5 Two-dimensional grey scale imaging unit
3. 6 M imaging unit
3. 7 Visible and adjustable dynamic range
3. 8 Two-dimensional imaging unit, grey scale ≥ 256 level, excellently detailed and comparative resolution and full-screen uniformity

4. Parameters:

4. 1 Specification parameters:


1. Grey scale: 256 level
2. Color scale: 256 level
3. Display: 10.4'flicker-free high-resolution medical color LCD
4. Power: 100-240V, 1.2-0.6A frequency: 50-60Hz
5. Adapter output: DC12.8V 3.0A
6. Power consumption: ≤100VA
7. Main unit size: 256*150*326(mm, Length*width*height)
8. Unit net weight: 4.5Kg(Accessories not included)


4.2 Multi-media and accessory equipments


1. Video recorder
2. I-station integral work station, realize image storage, report form and cloud print
3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission.
4. Dual-mode TV output: PAL/NTSC


4.3 Probe port:


Two enabled probe ports, automatic identification technology, available to optional probe configuration.


4.4 Language


Menu operation, interface language: English/Chinese switch alternatively


4.5 Scanning parameter:


3.5MHz R60 multi-frequency convex probe
1. Scan angle: 60°
2. Frequency range: 2.0MHz-5.0MHz
3. Frequency conversion options: 2.0/2.5/3.5/5.0
4. Max-scan depth: ≥190mm
5. Blind area: ≤5mm
6. Resolution: Axial resolution ≤1mm, Lateral resolution ≤2mm
7. Geometrical position accuracy: Horizontal ≤5%, Portrait ≤5%
 7.5MHz L40 multi-frequency linear probe
1. Frequency range: 6.0MHz-9.0MHz
2. Frequency conversion options: 6.0/6.5/7.5/9.0
3. Max-scan depth: ≥60mm
4. Blind area: ≤3mm
5. Resolution: Axial resolution ≤0.5mm, Lateral resolution ≤1mm
6. Geometrical position accuracy: Horizontal ≤5%, Portrait ≤5%
6.5MHz R11 multi-frequency trans-vaginal probe
1. Scan angle: 135°
2. Frequency range: 4.5MHz-9.0MHz
3. Frequency conversion options: 4.5/5.5/6.5/7.5
4. Max-scan depth: ≥60mm
5. Blind area: ≤4mm
6. Resolution: Axial resolution ≤1mm, Lateral resolution ≤1mm
7. Geometrical position accuracy: Horizontal ≤10%, Portrait ≤5%


4.6 Operation mode:


1. B,B/B,4B
2. M,B/M
3. CFM
4. PDI
5. PW
6. THI


4.7 System set


4.7.1 I-user-defined, superior to former aimless set, note the used set down and review and store image in one key.


4.7.2 Original set
1. Hospital name:
2. Interface langguage: Chinese/English
3. Format set
4. Character set
5. Time,date set
6. Date format: yyyy-mm-dd,mm-dd-yyyy and dd-mm-yyyy to select
7. Screensaver duration set
8. Ket sound set


4.7.3 Formula preset
1. BPD
2. CRL
3. GS
4. FL
5. HL
6. AD
7. TTD
8. APTD
9. HC
10. AC
11. FL
12. LV
13. DBH
14. Cerebellar diameter
15. OFD
16. FW
17. BSA

5. The image processing introduce

Beam processing
Digital multi-beam forming technology, real-time dynamic focusing point by point, continuous dynamic focusing, real-time dynamic class variable aperture imaging technique, real time dynamic beam trace, dynamic filtering, CNC dynamic frequency scanning.

Image preprocessing

Total gain: 0 ~ 127 dB
TGC: 8 ties rod for adjustment
Acoustic output ( power adjustable ): 25%,50%,75%,100%
Digital channel number: 32

Image processing

Edge enhancement: 0 ~ 3 levels adjustable
Frame correlation: 0 ~ 3 levels adjustable
Image post-process (IP): 0 ~ 7 levels adjustable
Compression curve: 0 ~ 7 levels adjustable

6. Measurement/ Calculate

u General measurement: with B general measurement, M general measurement, D general measurement software and various measuring report function.
B mode measurement: distance, area (Trace, Ellipse), circumference (Trace, Ellipse), area (2-Axis), angle, histogram, sectional view, stenosis (DSR, ASR), depth.
M mode measurement: depth, slope, heart rate, cycle
D mode measurement: velocity, heart rate, flow velocity, time, acceleration, throb/ resistance index, maximum differential pressure, average differential pressure, ratio, cardiac output, flow.
u GYN measurement and analysis: GYN software package and GYN report.
u OB measurement and analysis: up to 17 kinds OB tables etc various GA measurement and AFI measurement, with fetus growth curve, fetal biophysical profile and OB report.
BPD(Biparietal Diameter), CRL(Crown Rump Length), GS(Gestational Sac), FL(Femur Length), HL(Humerus Length), TAD(Abdominal Transverse Diameter), TTD(Thorax Transverse Diameter), APTD(Thorax Anterior-Posterior Diameter), FT(Foot Length), LV(Lumbar Vertebrae), THD(Thorax Height Diameter), TCD(Transverse Cerebellum Diameter), OFD(Occipitofrontal Diameter), HC(Head Circumference), AC(Abdominal Circumference), AFI(Amniotic Fluid Index), LMP(Last Menstrual Period), BBT(Basal Body Temperature),can calculate GA ,estimated fetal weight(EFW), estimated date of childbirth (EDC),fetus growth curve, can process FBP(fetal biophysical profile).
u Urology measurement and analysis: urology measurement software package and urology report.
u Superficial organs measurement and analysis: Superficial organs measurement software package and report.
u Orthopedic surgery measurement and analysis: Orthopedic surgery measurement software package and report.
u Cardiac measurement and analysis: cardiac measurement software package and report.

1. Measurement item under B mode, B/B mode:

1) Left ventricular function measurement, can calculate cardiac output(CO), military vector chart format(MVCF), cardiac index(CI) and stroke volume index(SI).
2) Right ventricular internal diameter (RV) measurement.
3) Main pulmonary artery internal diameter (PA) measurement.

2. Measurement item under M mode, B/M mode:

1) Left ventricular function
2) Mitral valve: The falling speed of EFLSP and AC measurement, A peak and E peak value and QMV measurement.
3) Aorta
4) Cardiac output(CO)
5) Ejection time(ET)
6) Left ventricular mass weight(LVMW)

3. Measurement item under PW mode:

1). Velocity, heart rate, time
2). Acceleration
3). throb/ resistance index
The eighth page
4). maximum differential pressure
5). average differential pressure
6). ratio
7). cardiac output
8). flow

7. Measurement report

OB measurement report, GYN measurement report, cardiac measurement report, urology measurement report and other measurement report, automatically store the measurement result and generate report.

8. Mark

1. 131 kind body marks with probe position, can through ocular body mark detail interface rapidly to choose body mark.
2. Comment mark, can preset comment context.
3. Arrow mark

9. Standard configurations

 Main unit:1 pc
 3.5 MHz convex abdomen probe:1 pc
 You can choose 1pc probe from below :
 6.5 MHz trans-vaginal probe/ 7.5 MHz linear probe
 Workstation software: 1 set
 Reticle:1 pc


10. Optional configurations

 Foot switch
 Trolley
 Video recorder (UP-897MD)
 Ethernet switch
