Product Details:
Payment & Shipping Terms:
|
| Display Mode: | B+M | Warranty: | One Year |
|---|---|---|---|
| Weight: | 4.5kg | Certificate: | CE ISO |
| Display: | 10.4 Inch Medical Color LCD | Color: | Grey |
| Grey Scale: | 256 Level | Function: | Hospital Medical Diagnose |
| Probe: | Multi-frequency Probe | ||
| Highlight: | Color Doppler Ultrasound Machine,Doppler Medical Equipment |
||

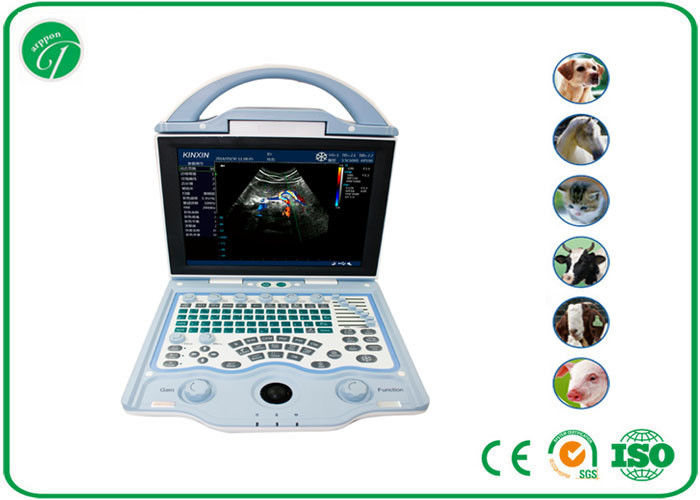

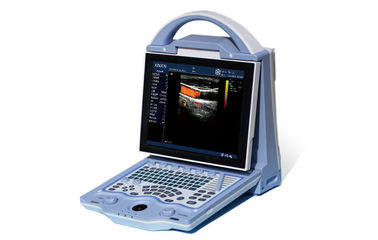

High Definition Home Doppler Ultrasound Machine For Diagnosis Abdominal Organs
Application
Leading image
process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.
General Description
* Built-in embedded A8 platform, totally against virus invasion, with high reliability.
* Operating system: Linux
* Digital multi-beam forming technology, precision delay-by-point dynamic receive focus
* Ultra-wideband fully digital beam former: Dynamic Focus
* Gray-scale imaging unit
* M-mode imaging unit
* Visual adjustable dynamic range
* Gray-scale imaging unit, grayscale ≥256 levels, with excellent contrast resolution and the audience subtle and uniformity
Specification
| Specification parameters | 1. Grey scale: 256 level 2. Color scale: 256 level 3. Display: 10.4'flicker-free high-resolution medical color LCD 4. Power: 100-240V, 1.2-0.6A frequency: 50-60Hz 5. Adapter output: DC12.8V 3.0A 6. Power consumption: ≤100VA 7. Main unit size: 256*150*326(mm, Length*width*height) 8. Unit net weight: 4.5Kg(Accessories not included) |
| Multi-media and accessory equipments | 1. Video recorder 2. I-station integral work station, realize image storage, report form and cloud print 3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission. 4. Dual-mode TV output: PAL/NTSC |
| Probe port | Two enabled probe ports, automatic identification technology, available to optional probe configuration. |
| Language | Menu operation, interface language: English/Chinese switch alternatively |
Multimedia and peripheral equipment
* video printer
* i-Station integrated workstations, to achieve store images, report generation and cloud printing capabilities;
* U disk (file management support, software upgrades, and one-key store function), DICOM interface
* Dual TV output:PAL/NTSC.
Probes
* 3.5MHz R60 convex probe (2.0/2.5/3.5/5.0MHz)
* 7.5MHz L40 linear probe (6.0/6.5/7.5/9.0MHz)
* 6.5MHz R20 micro-convex probe(5.0 / 6.5 /7.5 / 9.0 MHz)
* 6.5MHz linear rectal probe (4.5 / 5.5 / 6.5 / 7.5MHz)
Operating mode
1. B,B/B,4B mode
2. M,B/M mode
3. CFM
4. PDI
5. PW
6. THI
Operating System Setup
* Basic Setting:
* Interface language, time, date and date format, screen-savers time settings, key tone setting, standard setting, font brightness setting.
* Formula preset: gestational formula for cattle, dogs, horses, cats, goats, camels, sheep and pigs.
* Stored presets: Photo storage format selection: BMP, PNG format (image compression format).
* Password preset
Standard Configuration
| 1 | Main unit:1 pc |
| 2 | 3.5 MHz convex abdomen probe:1 pc |
| 3 | You can choose 1pc probe from below: > 6.5 MHz Linear Rectal probe > 7.5 MHz linear probe > 6.5 MHz Micro-Convex Probe |
| 4 | Workstation software: 1 set |
| 5 | Reticle:1 pc |
Optional Cofiguration
| 1 | Foot Switch |
| 2 | Trolley |
| 3 | Video Recorder |
