Product Details:
Payment & Shipping Terms:
|
| Target Customer: | Veterinary, Farmer, Breeder | Net Weight: | 2.2KG |
|---|---|---|---|
| Pseudo-color: | 8 Kinds (incl. B/W) | Permanent Image Storage: | 100 Frames |
| Main Unit Size: | 290x245x48mm(length X Width X Height) | Battery: | High-capacity Lithium Battery( 2700mAh) |
| High Light: | Animal Ultrasound Machine,Livestock Ultrasound Machine |
||

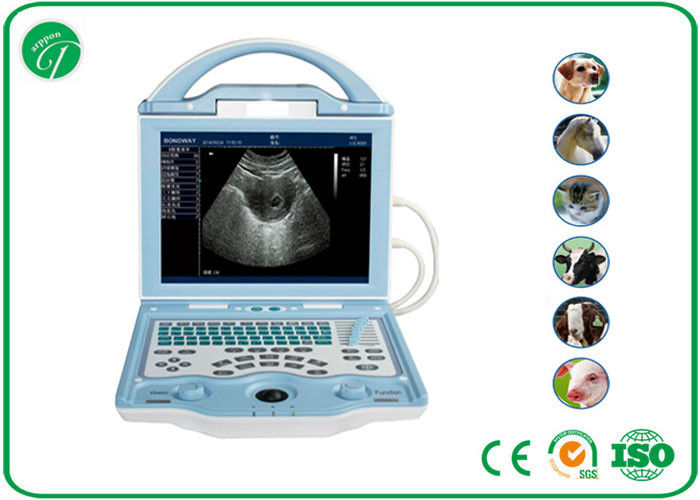

Portable Vet Ultrasound Machine For Animals / Dog / Cattle Veterinary Ultrasound Equipment

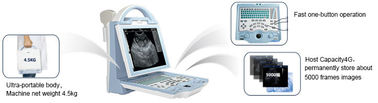

Product Highlight
*10.4' high resolution color LED backlight display, with high contrast and wide viewing angle
*Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable
*Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
* Two probe sockets, auto-identify different optional probe
*Body marks: total 64 kinds body marks indicating probe position
*Main unit weight: 4.5kg(without accessories)
*Main unit dimension: 256*150*326mm (L*W*H)
Technical Specification
*10.4' high resolution color LED backlight display, with high contrast and wide viewing angle
*Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable
*Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese
*Two probe sockets, auto-identify different optional probe
*Body marks: total 64 kinds body marks indicating probe position
*Display mode: B 2B, B, B/M, M
*Adjustable depth: 10 grades, max depth to 236mm
*Contrast: 27 to 90dB
*Gray scale: 256
*8 steps intelligent TGC
*Frame frequency: 30 frames /second
*8 kinds pseudo colors
*Image storage: 4G hard disk to permanently store about 5000 frames images without loss when power off
*Cine loop: 256 frames
*Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
*The gravel software package with real-time position line measurement
*Normal measurement: distance, perimeter, area, volume, angle, length and area stenosis ratio measurement
*OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index, fetal growth curve and OB report
*Urology measurement and analysis: residual urine volumem, prostate volume, and urology report
*Dual TV output: PAL/NTSC, can connect video printer when necessary
*Power supply:100-240V 1.2-0.6A frequency: 50-60Hz
*Power supply adaptor output: DC12.8V 3.0A
*Main unit weight: 4.5kg (without accessories)
*Main unit dimension: 256*150*326mm (L*W*H)
| Optional Probes | |
| Rectal Convex Probe | 2.4/2.5/4.0/5.0 Mhz |
| Rectal Linear Probe (with Handle) |
4.0/5.0/6.5/7.5 Mhz |
| Convex Array Probe | 2.0/2.5/3.5/5.0 Mhz |
| Linear Array Probe | 5.0/6.5/7.5/9.0 Mhz |
| Micro-convex Array Probe | 4.0/5.0/6.0/7.5 Mhz |
| Rectal Linear Prob (without Handle) |
4.0/5.0/6.5/7.5 Mhz |
| Standard Configuration | 1*Main unit with 10.4-inch Color LED monitor |
| 1*3.5MHz convex probe | |
| Optional parts | 1. 6.5MHz multi-frequency trans-vaginal probe |
| 2. 7.5MHz multi-frequency linear probe | |
| 3. Li-battery | |
| 4. Trolley | |
| 5. Charger |
