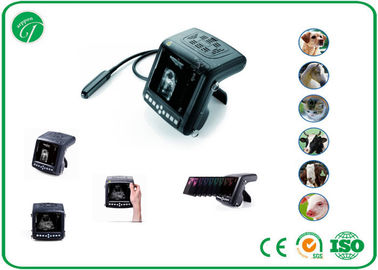

High Resolution Livestock Hand Held Ultrasound Machine For Home Use 5.7 Inch

Large Image : High Resolution Livestock Hand Held Ultrasound Machine For Home Use 5.7 Inch

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	5200V

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard exporting packing
Delivery Time:	6 days after payment
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100units/ month

Contact Now

Detailed Product Description

Wrist Design:	Truely Innovative	Monitor:	5.7 INCH
Brand Name:	Darppon	Display Mode:	B,2B,4B ,B/M,M, Total 5 Kinds.
Pseudo-color:	8 Kinds (incl. B/W).	Gain Range:	0~127dB
Dynamic Range:	27~90dB	Gray:	256
Highlight:	Animal Ultrasound Machine , Livestock Ultrasound Machine

High Resolution Livestock Hand Held Ultrasound Machine For Home Use 5.7 Inch

Application:

Designed widely for diagnosing of pregnancy, fertility and disease on Bovine, Equine, Ovine, Canine, Feline, Goat, Swine, Llama and other animals.

Features:

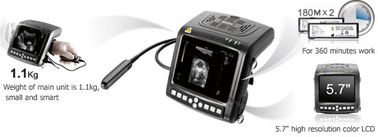

Wrist design: truely innovative.
Smart and light : 5.7" high resolution color LCD , 1.1kg weight.
No fan: Avoid cross-infection for virus.
2 pcs Internal li-battery: work for 5 hours.
USB port: directly store image to U disk.
Gridding calculate: quick measure by eye.
Accessory: a lot of optional parts for customer different use habit.

Technical Specification:

Monitor	5.7" High resolution color LCD, high brightness, high contrast,wide visual, suitable for outdoor use.
Body mark	1. general use 2.bovine 3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.
Display mode	B,2B,4B ,B/M,M, total 5 kinds.
Pseudo-color	8 kinds (incl. B/W).
Gain range	0~127dB
Dynamic range	27~90dB
Gray	256
Language	Chinese/English switchable
Probe socket	Single probe socket, automatically identify the probe, support several optional probes
USB port	support one-key storage image to USB and color laser printer directly print various image and reports.

Measurement and analysis:

General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.
Cardiac measurement: depth, slope, heart rate, time.
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
Gridding calculate, let customer simply calculate the measure result by eye, save time, convenient.
Other measurement: Automatically calculate the Back fat and Lean percentage of swine .
OB report function
Automatically save the last parameters, customer can directly use it on next time.

Standard configuration:

No.	Standard configuration
1	Main unit: 1 pc
2	6.5MHz linear rectal probe : 1 pc
3	Power adapter: 1 pc
4	Internal battery : 2 pcs
5	The leather Case: 1 unit
6	Base Charger, belt, bracket, shutter release: 1 pc for each.

Optional configuration:

No	Optional configuration
1	4.0Mhz multi-frequency convex rectal Probe
2	6.5MHz multi-frequency micro-convex probe
3	3.5MHz multi-frequency convex probe
4	7.5MHz multi-frequency linear probe
5	Thermal printer
6	Battery(2400mAH)
7	Black suitcase
