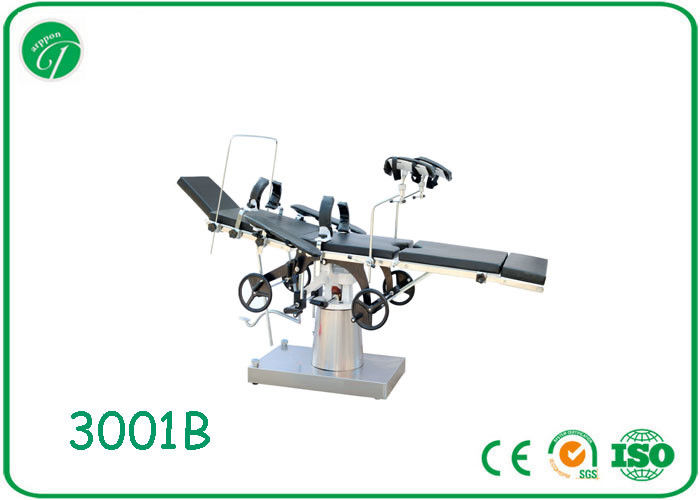

Ophthalmology Operating Room Equipment , Manual operation theater equipments 3001B

Introduction

This table is suitable for surgical procedures of the head, neck, thorax, abdomen, abdomen, perineum and extremities as well as for gynecological, otolaryngology and orthopaedics operation. It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both side. It has been awarded the first prize in China. It has won the "High Quality Product" certificate of the State pharmaceutical Administration Deparment. Chassis inside & outside cover of model 3001B and model 3001C are stainless steel, Stainless steel or qualitative carbon steel with plastic-sprayed surface is optional for the chassis inside & outside cover of model 3001D.


Features

1. Surgical bed
2. Operation bed
3. Operation table
4. Surgical table

Main Specification

Length: 2100mm
Width: 480mm
Min-max height: 800-1040mm
Forward ≥ 25° Backward ≥ 35°
Leftward≥ 15° Rightward≥ 15°
Head board fold upward: ≥ 40° Fold downward: ≥ 90°
Leg board fold downward: ≥ 90° Fold outward: ≥ 90°
Back board fold upward: ≥ 45° Fold downward: ≥ 20°
Waist board lifting: ≥ 100mm
Mainsvoltage: AC 220V± 10% 50Hz
Input power: 300VA
