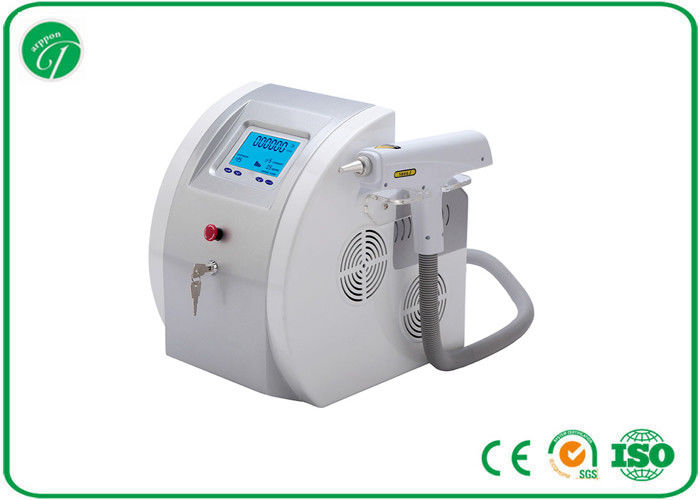

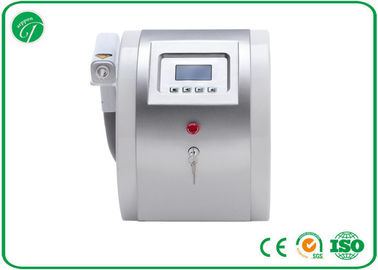

Professional IPL Laser Machine For Eyeliner Washing / Eyebrow Removal , 300W Power

Long Pulse 1064nm&532nm ND YAG Laser Laser Eyeliner Washing Eyebrow Removal Tatoo Removal

Nd Yag Laser Introduction:

Laser emitted by the system has a strong penetration ability which allows it to reach the deep layer of dermis. The pigment particles absorb the light energy and explode sharply, burst into the tiny pieces, thus diminish the color density and get rid of it.

So the appliance can effectively do away with mutant pigmentations and vascular tissue based on undamaged ambient tissue. This is called ‘Selective heat absorption’ principle in medical field.

Application

1.Remove the black &blue pigment on eyebrow, eye line and lip line. Scour off tattoo, freckle, lentigines, old aged marks, vascular expansion and type of blood vessel lesions etc.
2.No harm to the follicles and normal skin, leaving no scar, only to lustrate pigment.
3.To lustrate melanin not being eliminated by medicament and other means.
4.Be in no need of anesthesia and quick recovery. No negative influence.


Features

1.Improve the efficiency and make the best solutions for no burning on the hand-piece at all.
2.Long lifetime for Xenon Lamp which is with the imported US technology.
3.More stability with the hand-piece structure inside improved.
4.Add the infrared Guide light to aim the target tissue correctly.
5.Portable design and easy operation can do the touring treatment; lower cost and wider usage can make quick return of investment

1064nm &532nm functions of laser tattoo removal machine

the probe with 1064nm wavelength is used for removing the black/ green pigmentation,

the probe with 532nm wavelength is used for removing the red/ coffee/ brown pigmentation) according to the actualsituation.

The Installation of the laser tattoo removal

1. First, please install the chosen treatment head to the Laser handpiece:

There are 2 laser treatment heads in 1 laser machine: the shorter one is the 1064nm treatment head, outputting the white light to remove the black and cyan tattoo; the longer one is the 532nm treatment head, outputting the green light to remove the colorful and brown tattoo

2. Adding water into machine:

Please add cool purified water or distilled water into machine before opening it.

The mineral water and tap water are strictly forbidden. The machine will be damaged if added into other water.

A: Please find and open the Water Filling Nozzle, Water Overflowing Nozzle, Water Drainage Nozzle in the back of machine (Figure 2).

B: Please add the purified water or the distilled water to the machine from the water filling nozzle through the funnel, until the machine is filled.The machine is filled if some water flows from the water overflowing nozzle.

C: Please open the Water Filling Nozzle, Water Overflowing Nozzle,Water Drainage Nozzle when need drain the water off.

D: And the machine is forbidden to open without full of water.
The water inside of machine should be changed every 15--20 days, and the Residual water should be released totally when need to change it.
If the handle becomes hot for long time operation, it is better to change the 2/3 water inside of water block to get the effective cooling function in the standby status of
machine.

3. Please connect the power line and foot switch with the machine correctly

without any leakage.

4. The Emergency Stop Switch and the Key Switch

Specification

Laser model:Q-switched Nd:YAG Laser

Laser wavelength:1064/532 nm

Pulse energy:1000mj

Pulse duration: 10ns

Repetition frequency:1, 2, 3,4,5,6 Hz

Cooling method:inner circulation water cooling

Power supply:AC110V± 10%, 50~60Hz; 230V±10%, 50~60Hz

Dimensions:370×275×245mm3

Total weight:18kg
