Product Details:
Payment & Shipping Terms:
|
| Screen: | 240*128 LCD, Touch Screen | Analytic Modes: | Kinetic, Fixed Time, End-point, Absorbance |
|---|---|---|---|
| Application: | Lab Analyzer | Absorption Volume: | 200uL-3000uL |
| Sample Volume: | 10uL-50uL | Working Condition: | Temperature 10-30℃, RH: 20-80% |
| High Light: | Modern Medical Equipment,Digital Video Colposcope |
||

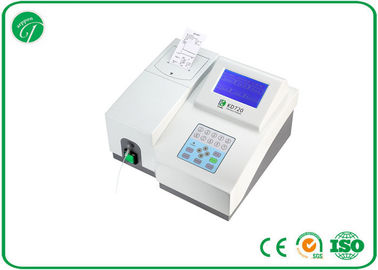

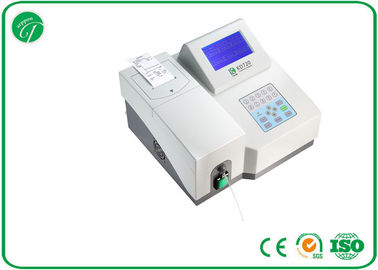

LED touch screen 7 standard filters Semi Auto clinical Bio chemistry Analyzer
Technical Specification
| Assay Method | Reaction rate, end point, two-point, double wavelengths, coefficient, multiple standards, blank reagent, blank sample, absorbance at end point, QC, QC graph and turbidity |
| Temperature System | PELTIER temperature control component, 25℃, 30℃, 37℃, accuracy: ±1℃ |
| Light Source | 6V 10W halogen lamp of more than 2000 hours lifespan |
| GML Precision | ±2 nm |
| FWHM | ≤10 nm |
| Stray Light | ≤0.5(absorbance≥2.5) |
| Absorbance Range | -0.214-3.000 |
| Absorbance Linearity | ±1% |
| Absorbance Repeatability | ±0.001 |
| Precision | ≤1% |
| Carry Over | ≤1% |
| Resolution | 1mAbs/h |
| Stability | ≤3mAbs/h |
| Flow Cell | Permanent quartz flow cell, minimal volume is 32uL, and disposable flow cell is selectable |
| Sampling System | Pressure auto releasing pump ensure the accuracy of suction volume |
| Absorption Volume | 200uL-3000uL |
| Sample Volume | 10uL-50uL |
| Display | 240*128 LCD, touch screen |
| Interface | RS232 Serial port |
| Working condition | Temperature 10-30℃, RH: 20-80% |
| Voltage | AC85-264V, auto adapt |
| Power | ≤100W |
| Quality System | CE |
