Product Details:
Payment & Shipping Terms:
|
| Screen: | Back Light LCD | Analytic Modes: | Kinetic, Fixed Time, End-point, Absorbance |
|---|---|---|---|
| Application: | Lab Analyzer | 8 Standard Filter: | 340, 380, 405, 492, 510, 546, 578, 630nm Wavelength |
| Dimensions: | 460(L)x380(W)x200(H)mm | Weight: | 9Kg(net), 10Kg(gross) |
| High Light: | Medical Diagnostic Equipment,Digital Video Colposcope |
||

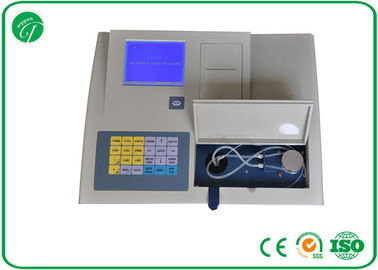

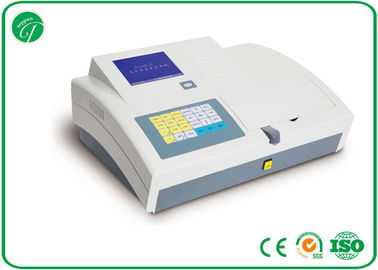

8 standard filters, metal-quarz flow cell, large LCD, built-in printer Semi Auto clinical Bio chemistry Analyzer
l Back spectro photometry
l 8 standard filters
l Large LCD, built-in thermal printer
l Sold in the market for over 16 years, stable performance
Performance:
l Back spectro photometry, 8 hard membrane filters, separate signal process circuit for each wavelength, filters select completed electronically, no mechanical movement
l Hermetic solid-state optical system, low contamination of dust and dampness, long life time of hard membrane filters
l Titanium alloy flow cell with small capacity and minimize cross-contamination
l 1000 patients test data and 200 test programs can be saved
l Clock CMOS chip inserted, no noise, high speed, easy maintenance
l 265x65 dot-matrix back light LCD, display character curve simultaneously
l Reasonable software, programmable biochemical test menu, Self-test program
Technical Specifications:
| Analysis method | kinetics, end point, two point, etc. |
| Light source | halogen lamp 20w/12V, life time up to 2000hr |
| Optical system | 340, 380, 405, 492, 510, 546, 578, 630nm wavelength |
| Abs range | -2.500—2.5Abs, resolution: 0.001Abs |
| Flow cell | titanium quartz alloy, 33uL; optical path: 10mm |
| Temperature | PELTIER elements, 25,30,37℃±0.1℃ |
| Precision | error<1%, drift<5mAbs/hr |
| Printer | thermal printer, 58mm width paper |
| Keyboard | 24 keys touch keyboard |
| Interface | RS232 serial |
Working Conditions:
l Temperature: 0℃-40℃
l Humidity: 5-80%
l Power supply: AC220V±15%, 50Hz, 70VA
Main Test Items List:
l Liver function: ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3 γ-GT
l Renal function: BUN CRE UA CO2-CP
l Lipids: T-CHO TG HDL-C LDL-C
l Cardiac function: CK CK-MB LDH HDBH
l Others: GLU K Na Cl Ca
