Product Details:
Payment & Shipping Terms:
|
| Type: | Blood Analysis System | Test Method: | ISE Direct Method |
|---|---|---|---|
| Test Items: | K+,Na+,Cl-,Ca++,pH,TCO2 | Test Time: | ≤60s |
| Sample Volume: | 160ul | Data Output: | Built-in Thermal Printer |
| Sample Types: | Serum, Plasma, Whole Blood | Dimensions: | 415 X 265 X 430mm (L*W*H) |
| Power Supply: | AC 220V±20% 50Hz ≤35W | ||
| Highlight: | Modern Medical Equipment,Medical Diagnostic Equipment |
||

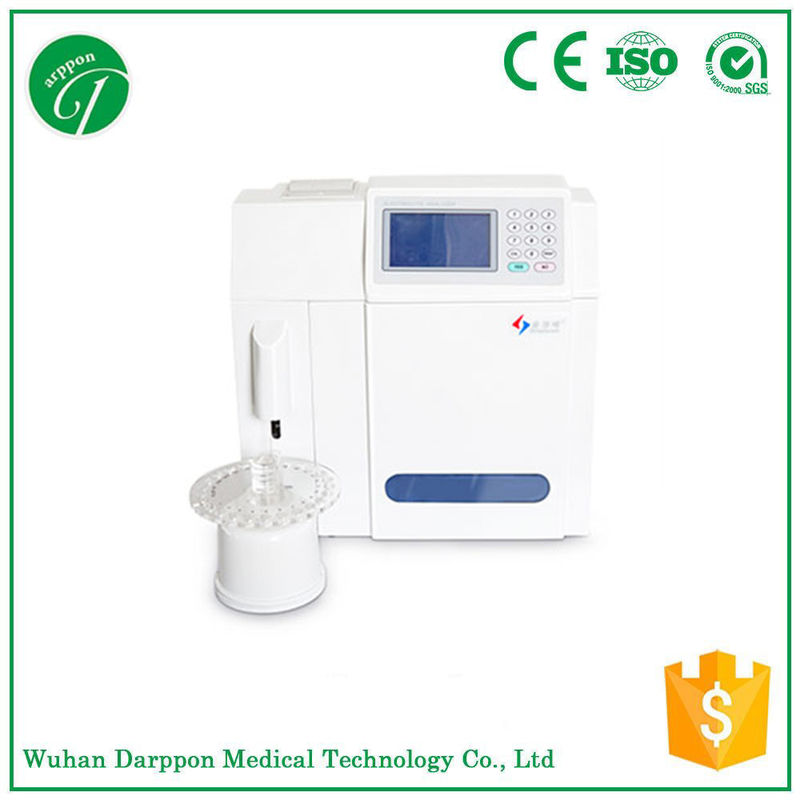

Hot Sale veterinary blood chemistry analyzer Full auto electrolyte analyzer
Features
ISE direct method, stable performance K+,Na+,Cl-,Ca++,pH,TCO2
Automatic sampling turntable Simple YES/NO operating, internal soft-keypad
Performance
Stable performance, Low reagent consumption
Friendly operation system, Large LCD shows full testing info
Automatic calibration, 24 hours on work, failure alarm
High accuracy & long life Electrodes and TCO2 sensor
Single pump pipe(high quality materials) mode to reduce the fault point
Vertical & external turntable auto-sampling system, with 20 sample positions and 1 ST position
20 positions to meet large sample demand, test sample can be carried out at any time
1 ST position to insert the emergency sample at any time
Independent sampling turntable as optional function part, fully-auto or semi-auto
can be switched on machine system
Technical Parameters
| Test Method | ISE direct method |
| Test Items | K+,Na+,Cl-,Ca++,pH,TCO2 |
| Test Time | ≤60s |
| Sample Volume | 160ul |
| Sample Types | Serum, Plasma, Whole blood, Ncurolymph & Diluted urine |
| Data output | Built-in thermal printer, RS-232 port |
| Working Conditions | Temperature 15~30ºC Humidity ≤85% |
| Power Supply | AC 220V±20% 50Hz ≤35W |
| Dimension | 415 x 265 x 430mm (L*W*H) |
KH-996 three items
Semi-auto Electrolyte Analyzer
3 Test Items: K+,Na+,Cl-
5 Test Items: K+,Na+,Cl-,Ca++,pH
Manual sampling

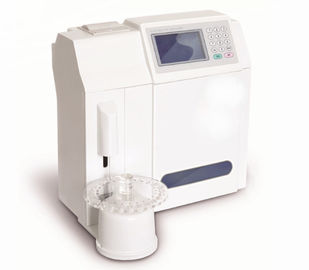

KH-996 Automatic Electrolyte Analyzer
* Test Items:
KH-996 for K+,Na+,Cl-,Ca++,pH
KH-996 for K+,Na+,Cl-,Ca++,pH,TCO2
* Automatic sampling turntable
Test Range and Accuracy
| Test Parameters | Blood sample Test Range |
Urine sample Test Range |
Resolution | Accuracy |
| K+ | 0.50-15.00 mmol/L | 5.0-150.0 mmol/L | 0.01 mmol/L | CV ≤ 1.0% |
| Na+ | 30.0-200.0 mmol/L | 10.0-350.0 mmol/L | 0.1 mmol/L | CV ≤ 1.0% |
| Cl- | 30.0-200.0 mmol/L | 10.0-300.0 mmol/L | 0.1 mmol/L | CV ≤ 1.0% |
| Ca++ | 0.10-5.00 mmol/L | --------- | 0.01 mmol/L | CV ≤ 1.0% |
| pH | 6.0-9.00 pH | --------- | 0.01 pH | CV ≤ 1.0% |
| TCO2 | 2.0-70.0 mmol/L | --------- | 0.1 mmol/L | CV ≤ 3.0% |
