Product Details:
Payment & Shipping Terms:
|
| Type: | Discrete Automatic, Random Access | Principle: | Absorption Spectrometry, Turbidimetry |
|---|---|---|---|
| Throughput: | Constant 160tests/hour (without ISE) | Spectrometric Method: | After Spectrometric Method |
| Wavelength: | 8 Wavelengths, Selectable Among 340-800nm | Absorption Range: | 0-4.0Abs |
| Optical System: | Integrated Full Closed Optical System | Test Method: | End-point, Fixed-time (two Point Method), Kinetic |
| Reaction Tray: | 81 UV Cuvettes (disposable) | Reaction Temperature: | 37±0.2°C |
| Highlight: | Modern Medical Equipment,Medical Diagnostic Equipment |
||

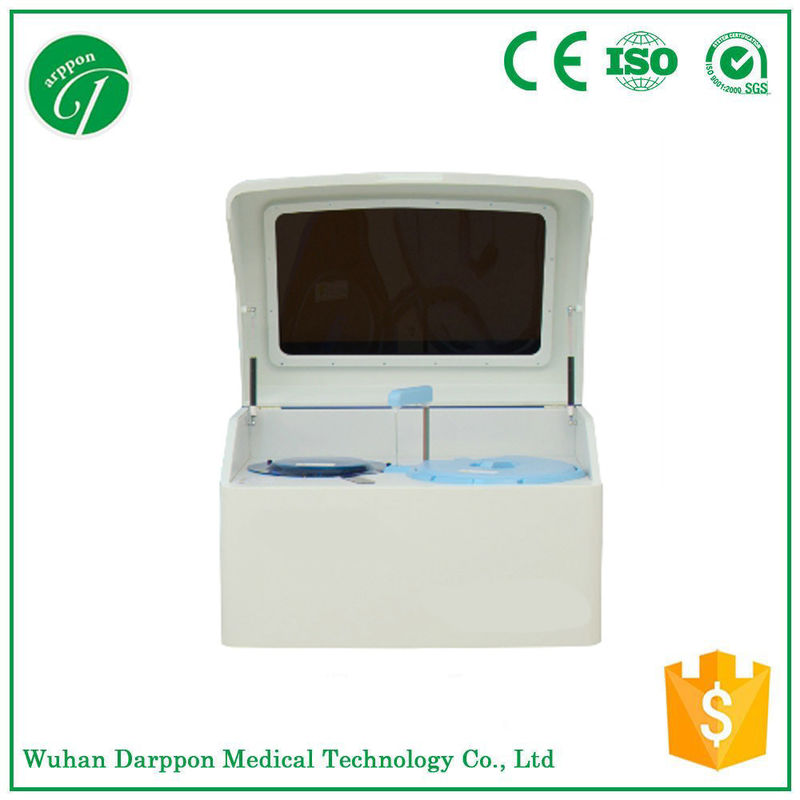

News 2017 semi automatic biochemistry analyzer test medical equipment
Technical Feature
Performance
| Type | Discrete Automatic |
| Principle | Absorption Spectrometry, Turbidimetry |
| Throughput | Constant 120tests/hour (without ISE) |
| Test Method | End-point, Fixed-time, kinetic |
| Support dual reagents/double wavelength | |
| Test sequence |
Run tests in strict accordance with sample sequence, Insert emergency at any time |
| Online Sample | 30 samples/ batch, unlimited batch input |
| Reaction Time | Max 15minutes |
| Reaction Volume | Mini 150μl |
| Cuvette | 81 cuvettes |
Optical System
Light Source: Halogen-tungsten lamp, 12V/20W
More than 2000hrs service time
Spectrometric Method: After spectrometric method
Wavelength: 8 wavelengths, selectable among 340-800nm
Absorption Range: 0-4.0Abs
Optical System: Integrated full closed optical system
Sample system
| Sample Tray | 30 positions |
| Sample Volume | 2-100μl, 0.1μl by step |
| Sample Probe | Liquid level detection, anti-collision protection and inventory checking,have automatic stop and alarm prompt for an obstacle |
| Probe Cleaning | Automatic washing for both interior and exterior |
| Others | |
| Water Consumption | less than 3L/hour |
| Power Supply | AC 220 ±22V 50HZ ±1HZ |
| Power | Max 200VA |
| Ambient Temperature | 10°C-30°C |
Reagent System
Reagent Volume: 20-500μl, 1μl by step
Reagent Tray: 60 positions, open system
Reagent Probe: : Liquid level detection, anti-collision protection and inventory checking, have automatic stop and alarm prompt for an obstacle
Probe Cleaning: Automatic washing for both interior and exterior
Reagent Bottle: Bottles with 15ml,20ml,30ml,50ml,70ml are available
dead volume <1ml
Temperature Control System
Heating Mode: Solid constant temperature closed direct heating
Equilibrium Time: less than 3minutes
Reaction Temperature: 37±0.2°C
Temperature Fluctuation: ± 0.2°C
Control and Calibration
Calibration Mode: Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial
Automatically check calibration curve and select the calibration type with the best fitting
QC Type: Real time QC, QC in one day, QC between days;
QC chart: L-J, Cumulative, Twin Plot
QC Rules: Multi-rule; default: Westguard
Status Monitoring: Real -time monitor the sample tray, reagent tray, reaction tray, reaction cup, lamp, purified water; Real-time display reaction tray humidity, reagent remain, reaction curve, calibration curve and QC chart.
Inspection and Judgment: Reaction end point judgment, reaction linear range judgment, substrate depletion judgment, front belt detection,reaction limit inspection, reagent blank absorbance judgment
Operation Unit
Operation System: Windows operation system
Database: SQL Server
Data Storage: Automatic storage and backup, permanently preserve all kinds of data
Print Content: Print content can be customized
Print Format: Provide a variety of print format
