Product Details:
Payment & Shipping Terms:
|
| Type:: | Discrete Automatic, Random Access | Principle: | Absorption Spectrometry, Turbidimetry |
|---|---|---|---|
| Throughput: | Constant 200tests/hour (without ISE) | Test Method: | End-point, Fixed-time, Kinetic |
| Test Sequence: | Run Tests In Strict Accordance With Sample Sequence, Insert Emergency At Any Time | Light Source: | Halogen-tungsten Lamp, 12V/20W More Than 2000hrs Service Time |
| Spectrometric Method: | After Spectrometric Method | Wavelength: | 8 Wavelengths, Selectable Among 340-800nm |
| Detector: | Photodiode Array | Absorption Range: | 0-4.0Abs |
| Highlight: | Modern Medical Equipment,Medical Diagnostic Equipment |
||

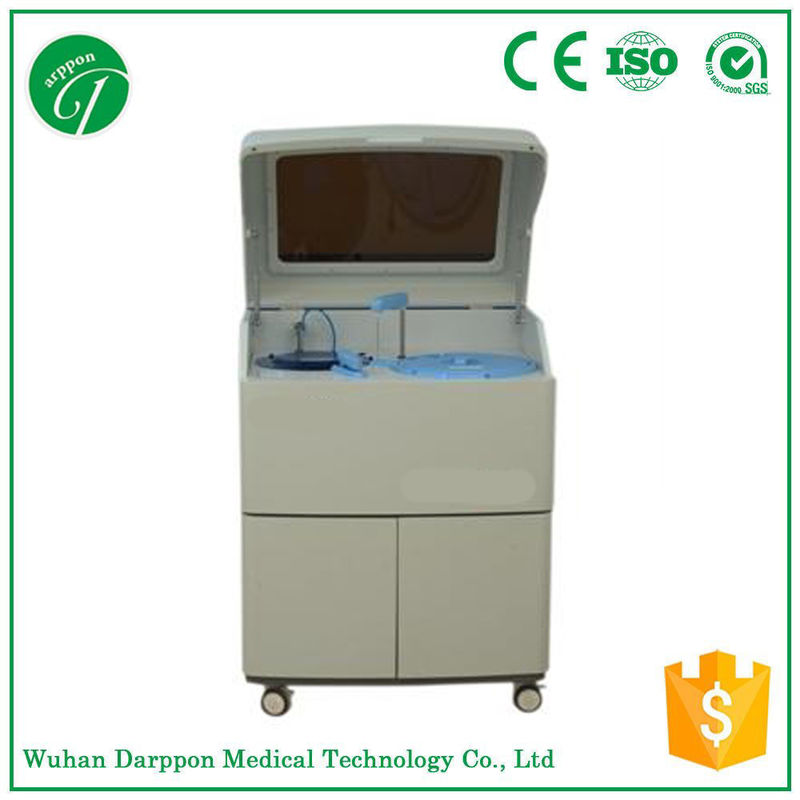

Portable clinical chemistry analyzer automatic hematology analyzer for human or vet
Technical Feature
Performance
| Type | Discrete Automatic |
| Principle | Absorption Spectrometry, Turbidimetry |
| Throughput | Constant 180tests/hour (without ISE) |
| Test Method | End-point, Fixed-time, kinetic |
| Test Sequence | Run tests in strict accordance with sample sequence,Insert emergency at any time |
| Online Sample | 60 samples/ batch, unlimited batch input |
| Reaction Time | Max 15minutes |
| Reaction Volume | Mini 150μl |
| Cuvette | 81 cuvettes |
Optical System
Light Source: Halogen-tungsten lamp, 12V/20W
More than 2000hrs service time
Spectrometric Method: After spectrometric method
Wavelength: 8 wavelengths, selectable among 340-800nm
Detector: Photodiode array
Absorption Range: 0-4.0Abs
Optical System: Integrated full closed optical system
Sample system
| Sample Tray | 60 positions |
| Sample Volume | 2-30μl , 0.1μl by step |
| Sample Probe | Polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking; probe with special cleaning solution to prevent contamination |
| Mixing System | Separate mixer, mix the sample and reagent completely |
| Others | |
| Water Consumption | less than 4L/hour |
| Power Supply | AC 220 ±22V 50HZ ±1HZ |
| Power | Max 200VA |
| Ambient Temperature | 15°C-30°C |
Reagent System
Reagent Volume: 20-300μl, 1μl by step
Reaction Tray: 60 positions, open system
Reagent Probe: polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking, have automatic stop and alarm prompt for an obstacle
Reagent Bottle: Bottles with 15ml and 30ml are available,
dead volume <0.5ml
Temperature Control System
| Heating Mode | Solid constant temperature closed direct heating |
| Heating Time | less than 3minutes |
| Reaction Temperature | 37±0.2°C |
| Temperature Fluctuation | ± 0.1°C |
Calibration and QC
Calibration Mode: Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial Automatically check calibration curve and fitting the best calibration curve
QC Type: Multi-type
QC Rules: Multi-rule; default: Westguard
Status Monitoring: Real -time monitor the sample tray, reagent tray, reaction tray; Real-time display reaction tray humidity, reagent remain, reaction curve, calibration curve and QC chart.
Inspection and Judgment: Reaction end point judgment, reaction linear range judgment, substrate depletion judgment, reagent blank absorbance judgment
Operation Unit
Operation System: Windows 2000, XP
Database: SQL Server
Data Storage: Automatic storage and backup, permanently preserve all kinds of data
Print Content: Print content can be customized
Print Format: Provide a variety of print format
