Product Details:
Payment & Shipping Terms:
|
| Type: | Discrete Automatic, Random Access | Principle: | Absorption Spectrometry, Turbidimetry |
|---|---|---|---|
| Throughput: | Constant 300tests/hour (without ISE) | Spectrometric Method: | After Spectrometric Method |
| Wavelength: | 8 -12wavelengths, Selectable Among 340-900nm | Absorption Range: | 0-4.0Abs |
| Optical System: | Integrated Full Closed Optical System | Reaction Tray: | 81 Positions, Cuvettes Reusable |
| Reaction Volume: | Mini 150μl | Sample Tray: | 80 Positions, Independent Tray |
| Highlight: | Modern Medical Equipment,Medical Diagnostic Equipment |
||

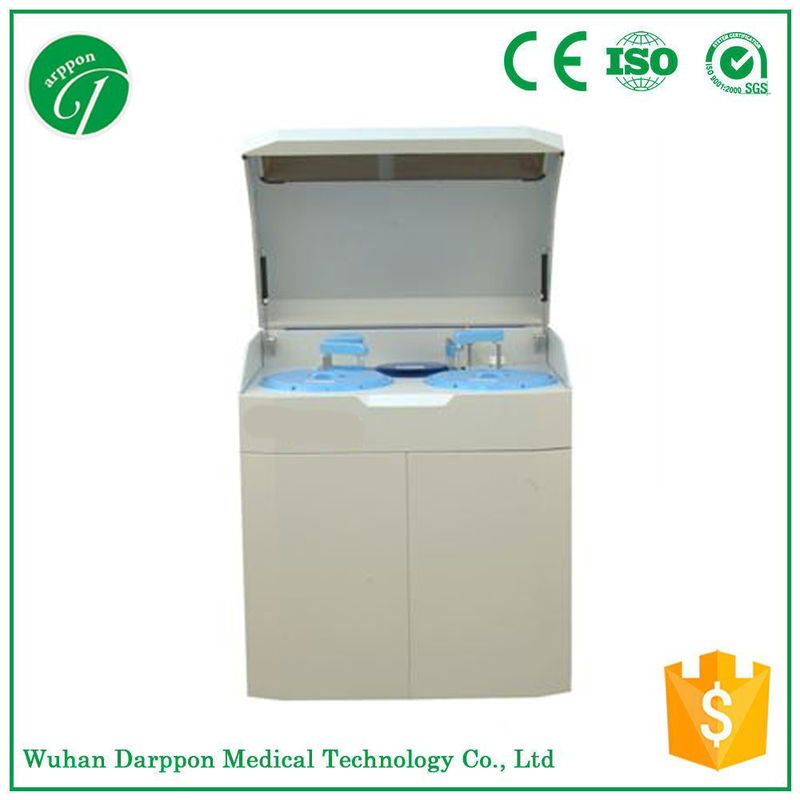

Best quality hospital or clinical medical fully automatic
biochemistry analyzer
Technical Feature
Performance
| Type | Discrete Automatic |
| Principle | Absorption Spectrometry, Turbidimetry |
| Throughput | Constant 300tests/hour (without ISE) |
| Test Method |
End-point, Fixed-time(two point), kinetic,support double reagent and double wavelength |
| Test Sequence | Run tests in strict accordance with sample sequence,Insert emergency at any time |
| Online Sample | 80 samples/ batch, unlimited batch input |
| Reaction Time | Max 15minutes |
| Reaction Volume | Mini 150μl |
| Cuvette | 81 cuvettes |
Optical System
Light Source: Halogen-tungsten lamp, 12V/20W
More than 2000hrs service time
Spectrometric Method: After spectrometric method
Wavelength: 8 -12wavelengths, selectable among 340-900nm
Absorption Range: 0-4.0Abs
Optical System: Integrated full closed optical system
Sample system
| Sample Tray | 80 positions, independent disk |
| Sample Volume | 2-100μl, 0.1μl by step |
| Sample Probe |
Polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking; probe with special cleaning solution to prevent contamination |
| Mixing System | Separate mixer, mix the sample and reagent completely |
| Others | |
| Water Consumption | less than 10L/hour |
| Power Supply | AC 220 ±22V 50HZ ±1HZ |
| Power | Max 550VA |
| Ambient Temperature | 15°C-30°C |
Reagent System
Reagent Volume: 20-500μl, 1μl by step
Reaction Tray: 80 positions, open system, independent disk
Reagent Probe: polishing for both interior and exterior, Liquid level detection, anti-collision protection and inventory checking, have automatic stop and alarm prompt for an obstacle
Reagent open system,close system for option
Temperature Control System
Refrigeration System: water -medium uniform cooling technology
Heating Time: less than 3minutes
Reagent Tray Temperature: 2-10°C
Reaction Temperature: 37±0.1°C
Temperature Fluctuation: ± 0.1°C
Calibration and QC
Calibration Mode: Linear, Logit-4p, Logit-5p, Spline, Factor, Polynomial Automatically check calibration curve and fitting the best calibration curve
QC Type: Multi-type
QC Rules: Multi-rule; default: Westguard
Status Monitoring: Real -time monitor the sample tray, reagent tray, reaction tray; Real-time display reaction temperature, reagent remain, reaction curve, calibration curve and QC chart.
Inspection and Judgment: Reaction end point judgment, reaction linear range judgment, substrate depletion judgment, reagent blank absorbance judgment
Operation Unit
Operation System: Windows 2000, XP
Database: SQL Server
Data Storage: Automatic storage and backup, permanently preserve all kinds of data
Print Content: Print content can be customized
Print Format: Provide a variety of print format
