Product Details:
Payment & Shipping Terms:
|
| Monitor: | 12 Inch LED | Imaging Modes: | CFM, PDI, PW, CED, B/C |
|---|---|---|---|
| B&W Mode: | B, B/B, B/M, 4B, M, PW | Probe Connectors: | 2 Active Probe Connector Ports |
| Net Weight: | 6kg | Type: | Doppler Ultrasound Equipment |
| High Light: | Color Doppler Ultrasound Machine,Color Doppler Ultrasonography |
||

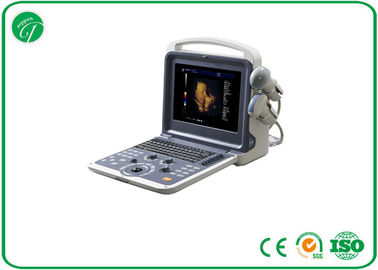

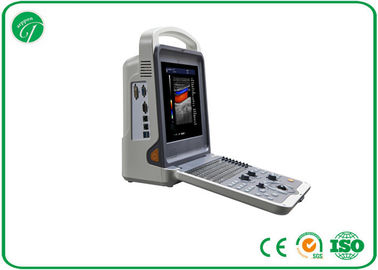

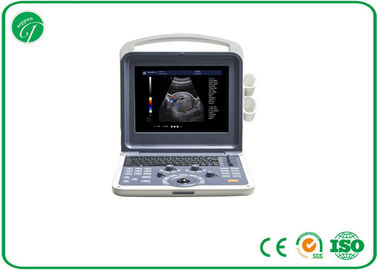

Doppler Ultrasound Equipment Type 3d 4d color doppler ultrasound scanner for Pregnant
With12' high-resolution LED monitor, built in Li-ion battery, delicate appearance, exquisite image quality and excellent stability, our K6 hand-carried ultrasound diagnostic system serves clients whenever, at any place. The most important is that this model can be updated to 4D function.
1) Imaging Modes:
B, B|B, 4B, B|M, M
Color Doppler (CFM)
Power Doppler (PDI)
Pulsed Wave Doppler (PW)
B+PWD (Duplex)
B+CFM/PDI+PW (Triplex)
2) Scanning Method:
Electronic linear, electronic convex, electronic micro-convex
3) Image processing
Brightness, contrast
Advanced gamma control
Scan direction, rotation
Black/white, Left/right reverse
Up/down, negative / positive control
8 segments TGC Control
High Pulse Repetition Frequency (HPRF)
Tissue Harmonic Imaging (THI)
PSHI TM broadband multi-frequency harmonic image
Speckle-reduction
Power adjustable
iBeam TM intelligent space image technology
iZoom TM undistorted full screen image
iClear
iTouch
Edge enhancement
Image conversion
Doppler Sound output volume adjustable
Color threshold control
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable
Pseudo
Built-in rechargeable Lithium Battery
Functions:
Cine loop: more than100 frame cine loop memory
Storage media: Large image-storage capacity
Zoom: Pan zoom
USB ports: 2
Measurement & Calculations:
B mode: Distance, circumference, area, volume, angle
M mode: Distance, time, velocity, heart rate
Software package: Abdomen, gynecology, obstetrics, cardiology, small parts, urology
Standard Configuration:
Main Unit, 12 inch LCD monitor, 3.5Mhz convex probe, 2 probe connectors, User's Manual, Based on Windows XP system
Options:
6.5 MHz transvaginal probe, 7.5 MHz linear probe, 3.0MHz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, built in Li-ion battery , trolley, laser printer, DICOM 3.0
Probes information
| Probe | 5 Steps Multi-frequency | pictures |
| 3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz | |
| 6.5Mhz transvaginal probe | 5.0, 6.0, 6.5, 7.5, 9.0Mhz | |
| 7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz | |
| 3.5Mhz micro-convex probe | 2.0,2.5, 3.5, 4.5 ,5.0Mhz | |
| 3.0Mhz phased array probe | 2.0, 3.0, 3.5, 4.0 , 5.5Mhz | |
| 4D volume probe | 2.0, 3.0, 3.5, 4.0 , 5.5Mhz | |
