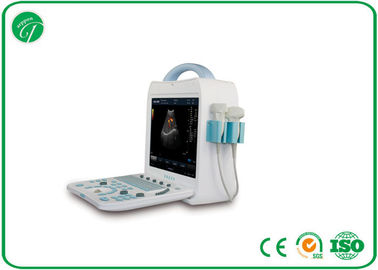

2D / 3D / 4D Color Doppler Ultrasound Scanner Three Probe Connector With PC System

      PC platform Full digital Color Doppler Ultrasound Scanner 2D , 3D , 4D​

1,Comprehensive benefits and products advantages

DCU10 is designed by modularization. It is built on PC platform with high compatibility and huge volume hard disk to collect data and patient information easily, and it is convenient to connect into internet. Due to enough space, DCU10 could be added more function in future. With well-chosen ultrasonic hardware system, DCU10 is more steady and rapid.

DCU10 is such a high-quality, economical and practical color doppler ultrasound scanner with perfect cost performance. It offers many application modes: B mode (includes B/B mode,4B mode), B/M mode(includes M mode), CFM mode, PDI mode, PW mode, CW mode.

DCU10 is good at high definition image which is benefit for the doctor’s accurate observation.

In Doppler mode, DCU10 is very sensitive to catch the blood flow, and the distinct image quality will be reliable for doctor’s diagnostic.

With 3 probe sockets, DCU10 supports many probes including convex probe, high frequency linear probe, micro-convex probe which for pediatric, trans-vaginal probe, cardiac phase array probe. All of these probes are multi-frequency probe.

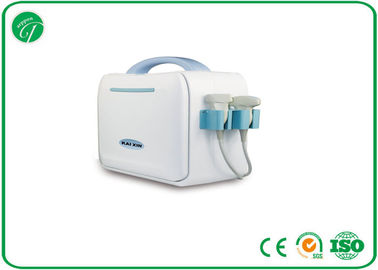

DCU10 color Doppler ultrasound scanner is portable and beautiful on appearance so that could be used in point of care, operation room, ambulance, physical examination, etc. Also it can be used on trolley for mobile diagnostic.

With powerful PC platform, DCU10 could connect into Internet for host system error testing, and offer the solution on line. By modular design on hardware structure, maintenance is much more simple than ever.

DCU10 is very competitive on cost performance, meanwhile manufacture offers free software update to guarantee the user’s investment value.

Practical application on clinical

1. DCU10 color Doppler ultrasound scanners owns high distinct image technology and advanced practical application on clinical solution.
2. It applies in abdominal(including trans-vaginal)Gynecology and Obstetric newbornsuperficial organcardiac, etc.
3. Under 2B, 4B modes, images and color blood flow map could be contrasted simply.
4. In 2D multi-frequency aspect, the image is quite well for different figure patient
5. In color Doppler multi-frequency aspect, DCU10 is quite sensitive for different depth and speed blood flow.
6. Independent changeable frequency in Doppler mode offer the best image quality.
7. Biopsy guide tools applied many probes the guide line make the biopsy more accurate.
8. Powerful inner workstation could manage the patient files and deal with word processing and note.
9. DCU10 owns professional Gynecology & Obstetric software and clinical report. With USB port of DCU10, images and reports could be printed out rapidly by ink-jet or laser printer.

2, Completely independent intellectual property rights, master the core technology

√Digital beamformer technique

√Phase harmonic enhancement technology

√Optimized image acquisition and processing technology

√Fine Angiography

√Adaptive color artifact removal technology

√B/C dual real time display

√Independent of the angle of deflection of linear array probe

√Rich application measurement software package

√Support working station

√Convenient and useful data management system

√Broadband multi-frequency inverter technology

√2D gray scale imaging system

√coded excitation and a variety of pulse waveform control technology

√Wide-field imaging technique

√Pixel optimization, spot noise cancellation technology

√THI

3,Humanity Design

1. 15’ flicker-free high resolution medical dedicated LCD color display with wide viewing angle.
2. Main unit design is simple and elegant, practical and convenient.
3. Main unit shell is made of environmentally friendly, flame retardant ABS material, mobile security light.

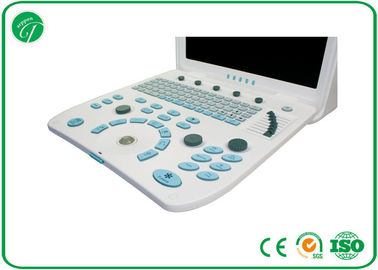

4. Backlit keyboard design, easy operation in darkroom; silicone material keys making doctors feel light, soft, relieve operator fatigue.
5. Multi-knob design keyboard, convenient for doctors to quickly adjust image parameters menu, get real-time high-quality images.
6. The external mouse, easy to operate doctor.
7. The USB-keyboard, very convenient for doctors to enter patient information.

4,Useful data management

1. Support imaging working station to get image storage, report and print.
2. Support doctors to check, review, search, delete, output, copy the necessary image.
3. One-key store for fast operation.
4. Support Net connection, memory card and DICOM for doctor data management and remote transmission.

Probes information

Probe	5 Steps Multi-frequency	pictures
3.5Mhz abdominal probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
6.5Mhz transvaginal probe	5.0, 6.0, 6.5, 7.5, 9.0Mhz
7.5Mhz linear probe	6.0, 6.5, 7.5, 10.0, 12.0Mhz
3.5Mhz micro-convex probe	2.0,2.5, 3.5, 4.5 ,5.0Mhz
3.0Mhz phased array probe	2.0, 3.0, 3.5, 4.0 , 5.5Mhz
4D volume probe	2.0, 3.0, 3.5, 4.0 , 5.5Mhz
