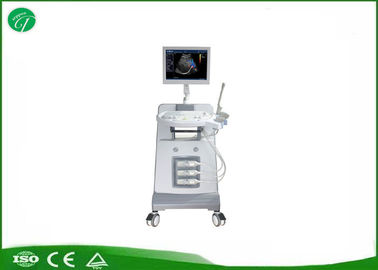

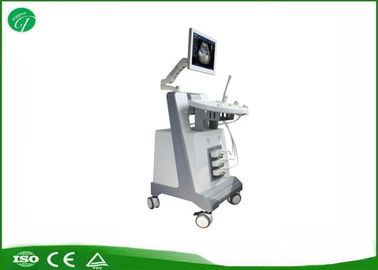

15 Inch Screen Color Doppler Ultrasound Scanner With 1 Electronic Convex Array Probe

15-inch portable ultrasound scanner with l Electronic convex array probe

1. System Features
Systemic applications include abdomen, obstetric, gynecology, blood vessel, small parts, cardiology, urology, newborn and pediatrics etc.
The system has 2D/3D/CFM/PDI/PW/M scanning modes and provides the perfect resolution and sensitivity.
It supports convex array probe, linear array probe, phased array probe and intra-cavity probe etc.
Integrative network ultrasonic workstation, support for DICOM transmission.
It uses embedded computing system, which makes system security, stability and high-speed operation.


2. General Specifications
2.1 Dimension and weight
780 mm (H) ´ 575mm (W) ´ 1300mm (L)
Weight: Approximate 86 kg


2.2 Power supply
100/230V (±10%)
60/50Hz
Maximum power 350VA


2.3 Monitor
15-inch high-definition progressive-scan flicker-free color medical monitor
Up/down tilt (±15 degrees), left/right rotate (±75 degrees)


3. System overview
3.1 Apply range
Systemic applications include abdomen, obstetric, gynecology, cardiology, blood vessel, urology, small parts, galactophore, pediatrics, newborn imaging, fetal cardiac imaging and puncture etc.


3.2 Probe scan parameters
lElectronic convex array probe
Scan angle: 73°
Element: 128
Frequency: 2.0MHz - 6.0MHz
Broadband 5-segment variable frequency
Maximum scanning depth ≥190mm
Dead zone: ≤3mm
Resolution: axial resolution ≤1mm, lateral resolution≤2mm
Geometric position veracity: lateral≤5mm, axial≤5mm
lElectronic linear array probe
Element: 128
Frequency: 5.0MHz - 12MHz
Broadband 5-segment variable frequency
Maximum scanning depth ≥120mm
Dead zone: ≤3mm
Resolution: axial resolution ≤1mm, lateral resolution≤1mm
Geometric position veracity: lateral≤5mm, axial≤5mm
lElectronic micro-convex intra-cavitary probe
Scan angle: 149°
Element: 128
Frequency: 4.5MHz - 9.0MHz
Broadband 5-segment variable frequency
Maximum scanning depth ≥80mm
Dead zone: ≤3mm
Resolution: axial resolution ≤1mm, lateral resolution≤1mm
Geometric position veracity: lateral≤5mm, axial≤5mm
lElectronic phased array probe


3.3 Operation Mode
B Mode
M Mode
Color flow mapping display (CFM)
Power Doppler Mode (PDI)
Pulse-wave Doppler (PW)
Tissue Harmonic Imaging


3.4 Probe interfaces
Three active probe interfaces


3.5 Multimedia and peripheral equipments
CD-RW, USB removable storage device
Video recorder
Laser printer
S-Video, AV video output


3.6 Storage function
Image store, Video store, Cine loop (≥ 300 frames), Disk storage space ≥ 160G.


3.7 Puncture guide line
Can adjust puncture guide line and preset custom settings.


3.8 Language
Immediately switch Chinese / English display.
