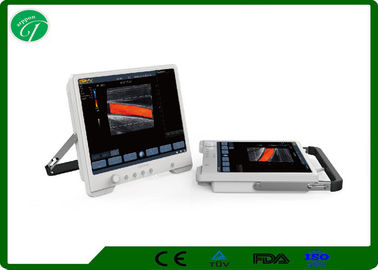

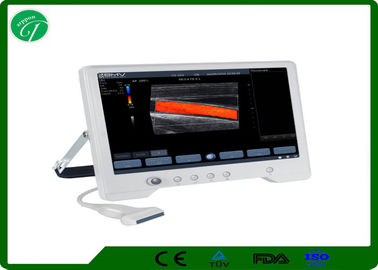

Portable Color Ultrasonic Diagnostic Machine Phased Array Probe Available

Portable ipad 3d ultrasound scanner with touch screen TS30

TouchScan 30
Deliver Excellence Wherever you Go


Featuring the latest in advanced imaging technology all incorporated in a compact hardware,the new touchscan30 color dopper system is the perfect choice for physicians and sonographers who want to deliver excellence in clinical efficiency and patient care wherever they go.

Standard Configurations
Touchscan 30 color main unit
15 inch LCD with high resolution:1024*768
Touchscreen
Two USB ports
One s-video out port
One networking port
One power inlet
One convex probe (3.5M R60)
Three transducer connectors
Plenty of measurement &calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes

Optional
Probes:
3.5MHz convex probe (R60)
7.5MHz linear probe (L40)
6.5MHz transvaginal/transrectal probe (R13)
3.5MHz micro-convex probe (R20)
3.5MHz micro-convex probe (R15)
Power supply:
AC power supply system,
Built-in Lithium battery power supply system


Probes
l Convex Probe
1)C35-6
Applications: Abdomen, OB , GYN
Center Frequency:3.5Mhz
2) C50-2 Micro-Convex
Applications: Abdomen, OB , GYN
Center Frequency:5.0Mhz
3)C65-15 Micro-Convex
Applications: Abdomen, OB , GYN
Center Frequency:6.5Mhz
Phased Array Probe
Applications: Cardiac, Abdomen, TCD, Emergency
Center Frequency:
Linear Probes
Applications: Musculoskeletal,small parts, vascular ,nerve block
Center Frequency:7.5Mhz
Trans-vaginal/Trans-rectal probe
Applications: Vaginal, Rectal
Center Frequency:6.5 Mhz

Technical Specification

B&W mode: B,M,2B,B/M,4B,C,PW, Power,Dir-Power,THI
Gray sacle: 256
Display: 15”LCD Full Touchscreen monitor
Transducer frequency: 2-11Mhz
Digital technology:
Wide-angle imaging
Panoramic focusing technology
Compatible with high and low speed blood
Rolling M technology
Panoramic imaging
Frequency composite
Space compound
Real-time Dynamic Aperture
Tissue Harmonic Imaging
Scanning depth: 220mm
Imaging Processing

Pre-processing: Cloud processing technology
Fine blood flow imaging ,high sensitive
8-segment TGC
Gain
Dynamic range
Persisitence
M Soften
Noise suppression
Post-processing: Image enhancement
Gray-scale Map
Pseudo Color Map
Tissue Specific Imaging
Interface to turn 180°
Left/right reverse
Up/down reverse


Functions
