Automatically / Manually Color Doppler Ultrasound Scanner For Pregnancy Baby Checking

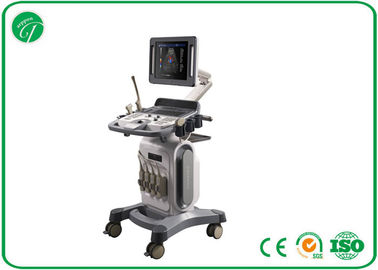

Large Image : Automatically / Manually Color Doppler Ultrasound Scanner For Pregnancy Baby Checking

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	K10

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Type:	Doppler Ultrasound Equipment	Standard Configuration:	Main Unit, 15 Inch LED Monitor
Input/output Ports:	VGA, USB Port, DICOM Port	Image Storage Size:	500G
Image Storage Format:	BMP,JPEG,PNG	Cine Loop:	Automatically &manually, Speed Control
Scanning Depth:	Up To 300mm	Body Mark:	Abdominal,Gynecology
Vascular:	Senosis D, Senosis A	Displaying Mode:	B,B/B,4B,B/M,M,PW
Highlight:	Color Doppler Ultrasonography , Doppler Medical Equipment

Pregnancy baby checking color doppler ultrasound price, Large screen trolley ultrsound for big hospitals

1. Ergonomic design

The familiar PC system, 15 inch LED monitor, ergonomic & rotatable design operation panel, free arm with 360 degree rotation and four probe connectors make the machine operate easily and conveniently.

2. Probes

Configuration	Probes	5 Steps Multi-frequency	Image
Standard:	3.5Mhz abdominal probe	2.0,3.0,3.5,4.0,5.5Mhz
	7.5Mhz linear probe	6.0,6.5,7.5,10.0,12.0Mhz
Options:	6.5Mhz transvaginal probe	5.0,6.0,6.5,7.5,9.0Mhz
	3.5MHz micro-convex probe	2.0, 2.5, 3.5, 4.5, 5.0Mhz
	3.0Mhz phased array probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz
	4D volume probe	2.0, 3.0, 3.5, 4.0, 5.5Mhz

3. Technical specifications:

Displaying mode	B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D,duplex, triplex, CFM
Signal processing:	Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing:	THI PSHI TM broadband multi-frequency harmonic image Speckle-reduction Power adjustable Smoothing function iBeam TM intelligent space image technology iZoom TM undistorted full screen image Free Xros M Engineer control technology with low power consumption Edge enhancement Image optimizing disposal One-key optimization Image conversion Up/down conversion Left/right conversion Intelligent built-in workstation system(Chinese/English) Doppler Sound output volume adjustable Wall filter adjustable Base line adjustable Sampling frame adjustable Spectrum sampling volume adjustable Spectrum sampling volume angle adjustable PRF adjustable
General measurement	B mode-distance, circumference, area, volume, angle, area Red, Diam Red M mode- distance, time, velocity, heart rate
Abdomen measurement	Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen
OB packages	EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD,Cxlength.
Gynecological packages	Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement;Cervix; Uterine depth
Urology packages	Left/right kidney measurement, Volume, Cortex
Small parts Measurement	Left/ right thyroid,volume, Isthnus and calculating report
Cardiac Measurement Package	Heart rate, Valve speed, LV, aortic, mitral, ventricular
Skeletal & Muscles	Skeletal & Muscles, distance, area, Hip angle
Vascular	Senosis D, senosis A, Lt/Rt VVA, Lt/RtRulb, Lt/Rt ICA
Body mark	Abdominal,Gynecology,Obstetrics, Small parts
Scanning depth	Up to 300mm
Cine loop	Automatically &manually, speed control
Image storage format	BMP,JPEG,PNG
Image storage size	500G
Input/output ports	VGA, USB port, DICOM port(network port)
Standard Configuration	Main unit, 15 inch LED monitor,3.5Mhz convex probe,7.5Mhz linear probe, free arm, 4 probe connectors, user’s manual, 500G hard disk, DVD-RW
Option	6.5Mhz transvaginal probe,19 inch LED monitor , video printer, laserprinter, DICOM 3.0, biopsy kit
