8 Segment TGC Color Doppler Ultrasound Scanner 15'' LCD Monitor 64G Capacity

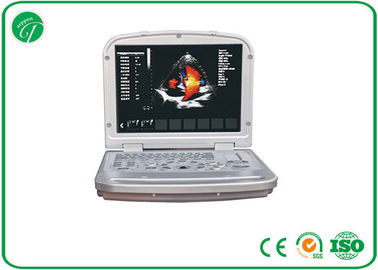

Large Image : 8 Segment TGC Color Doppler Ultrasound Scanner 15'' LCD Monitor 64G Capacity

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	6018-2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Image:	High-performance Image	Data Base:	Large Storagecapacity
Warranty:	One Year	Battery:	Large Capacity Removable
Display:	15'' LCD	Ports:	Two USB Ports
Convex Array Transducer:	Abdomen, Gynecology, Obstetrics, Cardiology, Urology, Kidney	Linear Array Transducer:	Small Parts, Vascular, Pediatrics, Thyroid, Breast, Carotid
High Frequency Linear Array Transducer:	Small Parts, Vascular, Pediatrics, Thyroid, Breast, Carotid, MSK	Micro-convex Transducer:	Abdomen, Obstetrics, Cardiology
Highlight:	Color Doppler Ultrasound Machine , Color Doppler Ultrasonography

15 inch Color Doppler 64G image-storage capacity ultrasound scanner for hospital

The system mainly applies in diagnosis of liver, gallbladder, spleen, kidney, pancreatic gland, heart and other organs, as well as obstetrics and gynecology examinations, blood vessel and tumor inspection.

General Information:

Display: 15” LCD monitor

Display Mode: B, B/B, 4B, B/M, M, B+C, B+D, B+C+D, PDI, CF, PWD
Gray Scale: 256

Dyn Range: 0dB-160dB

Depth: ≥330mm

Blind Area: ≤5 mm
Channels: 64

Probe elements: 128

Cine-loop: ≥1000.

Lateral Resolution: ≤1mm (Depth≤80mm), ≤2mm (80< Depth≤130mm)

Axial Resolution: ≤1mm (Depth≤80mm), ≤2mm (80< Depth≤130mm)

Geometry Position Precision: horizontal≤10%, vertical≤10%
Storage Media: 64G massive image-storage capacity

Measurement and Calculation:

Basic measurement, abdomen, early/later obstetric, pelvis, urology, vascular , cardiac, small organs and etc.
B-mode Basic Measurements: distance, angle, perimeter and area, volume histograms, cross section
M-mode Basic Measurements: heart rate, time, distance, speed.

Imaging Pre-processing:

8-segment TGC

Preset

Gain (B&W, Color, Doppler)

Audio

PRF

Dynamic Range

Image Enhancement

Acoustic Power

Imaging Post-processing:

Gray Map

Black/White Reverse

Left/Right Reverse

Up/Down Reverse

Others:

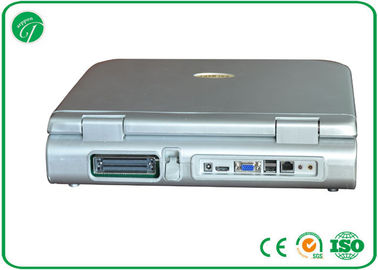

USB Port: 2

Probe Connector: 2

Power Supply: (AC)220V±22V 50Hz±1Hz

Continuous Working Hours: ≥8h

External Display: PAL, VGA

Standard Configuration:
●Scanner Body: 1pc
●3.5Mhz Convex Probe: 1pc
●Charger with a Set of Wires: 1set
●Bottle of USG gel: 1pc
●User Manual: 1pc

Optional:
●3.5Mhz Phased Array Probe
●6.5Mhz Trans-virginal Probe
●7.5Mhz Linear Probe
