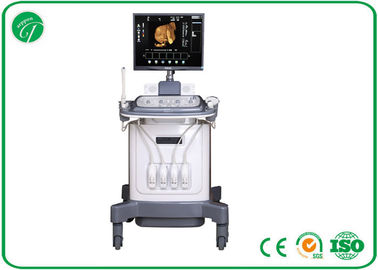

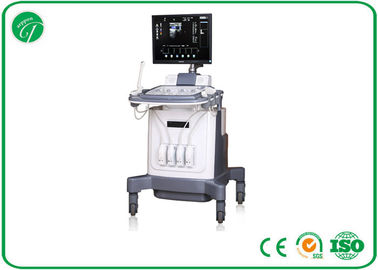

Full Digital Trolley Color Doppler Ultrasound Scanner With 160G Image Memory

Full Digital Trolley Color Doppler Ultrasound Scanner With 160G Image Memory

Features:

PC control, usingreal-time dynamic high density beam scanning, wide-band and all-digital acoustic beam shape.

Real-time dynamic focus (DRF), real-time dynamic aperture (RDA), real-time dynamic apodization (DRA), real-time independent frequency, tissue harmonic image (THI), trapezoidal expansion image, 8 TGC, advanced image processing technology.

Doppler spectrum / energy images with high blood flow sensitivity, showing clearly blood flow of organ tissue.

Parameter:

1. Mode: B, M , B + D, PwrD, B + C, B + C + D.
2. Real-time, freezing, imagesenlargement, image rotation.
3. Monitor: 19” high-resolution LCD color monitor.
4. Cine-loop: ≥100 frame, format Avi,. sep and DICO, manual/automatic cine-loop, save and load cine-loop.
5. Image Memory: ≥160G, format BMP JPG DCM TIF.
6. Body mark: position indicator.
7. 2D image gain: 8 TGC and overall gain adjustment separately, show TGC curve.
8. M mode scanning speed: ≥3.
9. Enlarged: ≥5 gradual adjustable.
10. Dynamic range: ≥170dB.
11. Record management module: search, modify, add, print, import and export of typical cases and automatically generate reports and other functions.
12. Characters and comments: hospital information, patient information, full-screen characterediting, support for English interface conversion, support Chinese and English input.
13. Color Gain: progressively adjustable.
14. Image Control: Color flip, color afterglow, individually adjustable color priority.

Measurement:

1. Mode B (2D) measurement
2. a) General measurement: distance, perimeter, area, volume, distance narrower radio, area stenosis ratio.
3. b) Gynecological measurement: uterine size and volume, cervix size and volume, right/left ovary size and volume, endometrial thickness, right/left follicle volume.
4. M mode measurements: distance, heart rate.
5. Doppler measurements: General measurement: systolic and end-diastolic velocity, peak flow, time, blood flow, pulse index and heart rate.

Standard Configuration:

Options:

1. Micro-convex probe
2. Phased array probe
3. Trans-virginal probe
4. Linear probe
5. 4D Volume probe
6. Printer
7. Guided probe holder
