4 Stage Diagnostic Ultrasound Machine , Medical Doppler Machine With 2.5MHz-10.0MHz Probe

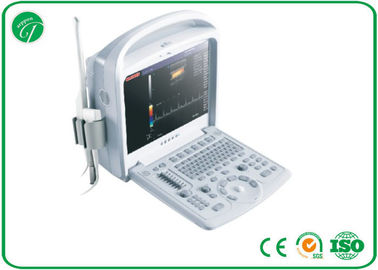

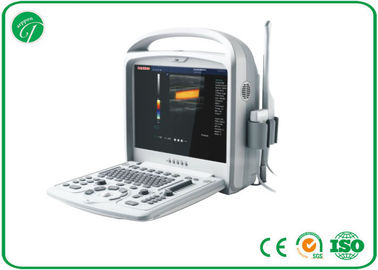

Large Image : 4 Stage Diagnostic Ultrasound Machine , Medical Doppler Machine With 2.5MHz-10.0MHz Probe

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	kai-a3

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 unit per month

Contact Now

Detailed Product Description

Image:	High-performance Image	Data Base:	Large Storage Capacity
Warranty:	One Year	Battery:	Large Capacity Removable
Display:	15'' LCD	Ports:	Two USB Ports
Convex Array Transducer:	Abdomen, Gynecology, Obstetrics, Cardiology, Urology, Kidney	Linear Array Transducer:	Small Parts, Vascular, Pediatrics, Thyroid, Breast, Carotid
High Frequency Linear Array Transducer:	Small Parts, Vascular, Pediatrics, Thyroid, Breast, Carotid, MSK	Micro-convex Transducer:	Abdomen, Obstetrics, Cardiology
Highlight:	Color Doppler Ultrasound Machine , Color Doppler Ultrasonography

15 inch 2D Built-in workstation Color Doppler ultrasound scanner with 2.5MHz-10.0MHz probe

Product details:

A. Innovative technology ,superior performance

1 Weighted launch technology

The transmission model by the weighted against array element different voltage, pulse, overcome the far-field sound interfere with each other to enhance the trunk, suppress the sidelobe, eliminate artifacts.

2 The dynamic real-time blood flow imaging

Through accurate Doppler echo signal automatic recognition processing, reduce blood vessels and blood flow Doppler signals back to the fold and make within the blood vessels and vascular Doppler blood flow imaging showed more clearly.

3 Pixel focusing technology

Powerful digital beam forming device, is used for controlling pixels focus, improve the accuracy of the spatial resolution, image display fine structure.

4 Ultra wideband beamforming

Ensure the whole piece of information without loss or distortion, effectively improve the image resolution

5 Compound imaging technology

Make the image more smooth nature, more easy to distinguish the smallest details

6 One touch optimization function

Fast image optimization effect, improve the efficiency of clinical work

7 User-defined parameter Settings

Users according to their own needs can be set parameters for clinical diagnosis

8 The application of harmonic technique

The resolution of the images is improved effectively, increase the basis of clinical diagnosis

B. Advanced software, clinical assistant

1 IClear image optimization function

According to actual needs to adjust the softness of black and white image, make the image more clear and reliable performance

2 Rich and professional report page

Professional obstetric report page contains fetal growth curve comparison table, due date the measurement data, and can add personalized diagnostic template.

3 Built-in workstation

Inside the machine is equipped with a powerful PC System, the doctor can write a report on the system directly, and it can connect all kinds of printers

4 A variety of professional application of the probe

Can connect convex array probe, high frequency probe, cavity probe, probe of heart probe and other professional diagnosis

Focusing	Electronic focusing + acoustic lens focusing Transmission focus: single focus, double focus, 3-focus and 4- focus Continuously dynamic focusing mode is used for front end reception
B-type display	Image amplification (real-time or freeze status), max. 4-times
	Image vertical / horizontal overturn
	Display depth is continuously adjustable
M-type display	Scanning speed: 4- stage
Digital beam formation	Image whole range continuous dynamic focusing Image whole range dynamic aperture Image whole range dynamic trace change Image whole range receive delay weight summation Support semi-moment scanning, and support +- 10 ° linear reception deflection angle Multiple beam parallel processing technology
Signal processing and Doppler	Provided with dynamic filtering and orthogonal demodulation Provided with total gain adjustment Gain adjustment: 8-segment TGC B-type, C-type, D-type total gain, respectively adjustable B/W image gain and color bloodflow gain, respectively adjustable Doppler stereo output volume adjustment : 0-255 Doppler baseline adjustment : 6-stage Pulse repetition frequency can be respectively adjusted: CFM PWD Provided with D-linear speed adjustment
Image processing function	Image realizes dynamic range conversion and logarithm compression Image realizes time filtering Image realizes spatial filtering Image realizes frame correlation Image realizes edge enhancement Image realizes grey scale convertion Provided with selection of B\|M-type or M-type scanning speed Provided with high-density and high frame frequency selection Provided with image convex array scanning angle, linear array scanning depth control Provided with image optimized processing: 6-stage Image left/right, up/down overturn Color grey scale bar inversion selection B/W image resolution 1024 × 768 × 8 bit (256 grey scale) Color image resolution: 1024 × 768 8 bit × 8bit × 8 bit color coding
Basic measurement Calculation function	B mode basic measurement: distance, angle, perimeter and area(ellipse method, trace method), volume, stenosis, column diagram, cross-section diagram
	M-mode basic measurement: heart-rate, time, distance, speed
	Doppler measurement: time, heart rate, speed, acceleration
Obstetrics measurement Calculation function	Gestational sac(GS), biparietal diameter (BPD), cephalo-rump length(CRL), femur length (FL), Humerus length (HL), Transverse Abdominal Diameter (TAD), backbone length (LV), occipitofrontal diameter (OFD), Abdominal circumference (AC), head circumference (HC), estimation of parietal transparent length, gestational age and expected date of childbirth.
Obstetrics report	Measure and calculate amniotic fluid index(AFI) Calculate the rate (BPD/OFD, FL/AC, FL/BPD, HC/AC) Estimate fetus weight Infer the gesattional weeks and expected date of childbirth according to LMP , BBT Fetal Biophysical Score Fetus growth curve
Gynaecology measurement Calculation function	Measurement and calculation of uterus, left ovary, right ovary, left follicle, right follicle etc
Andrology measurement Calculation function	Measurement and calculation of prostate, testicle etc Calculation of prostate peculiar antigen predicted value PPSA, and prostate peculiar antigen density PSAD
Urology measurement Calculation function	Measurement and calculation of left kidney, right kidney, bladder, residual urine volume etc.
Peripheral blood vessel measurement Calculation function	Measurement and calculation of area stenosis rate, tube diameter stenosis rate
Small parts measurement Calculation function	Measurement and calculation of thyroid, breast , enclosed mass etc
Cardiac measurement Calculation function	Cardiac measurement software packet – providing analysis and measurement method for heart rate, speed, left ventricle, aorta, mitral valve, ventricle (right/left) Area stenosis rate percentage (Area Sten), tube stenosis rate percentage (Diam Sten) Body surface area (BSA).
Memory Function	Probe parameters memory Image memory Cine memory Measurement result memory Report memory
Cine function	Auto playback Manual playback Playback speed selection Retrieval playback Forward/reverse playback frame by frame
Reports	Obstetrics report Gynaecology report Uology report Andrology report Cardiac report (left ventricle, aorta, mitral valve, ventricule ) Add ultrasonic imgae in report Directory management File management
Grey scale	256 Grey scale
Input/Output interface	Network interface USB interface Video interface Serial communication interface
Probes	Probe socket: 2 PCS Probe frequency: 2.5MHz-10.0MHz, 8-stage multi-frequency
Probe class	Large convex array, micro- convex array, high-frequency linear array, transvaginal probe
Software upgrading functions	Available
Liquid Crystal Display	SVGA line-by-line, flashless,15 inch high resolution LCD
Power supply	Built-in switching power supply: input power ≤150VA Power supply adaption range: 220V ± 10 50Hz ± 1Hz (AC)
