Product Details:
Payment & Shipping Terms:
|
| Application: | ICU | Display: | 10.4'' LCD Display |
|---|---|---|---|
| Oxygen Concentration: | 21% ~ 100% | Modes Of Ventilation: | A/C, IPPV, SIPPV, IMV, SIMV, PEET. MANUAL, SIGH, SPONT |
| Ventilator Compliance: | ≤30 Ml/kPa | Gas Requirement: | Medical Oxygen And Nitrous Oxide With A Pressure Ranging From 280~600kpa |
| Highlight: | Respiratory Ventilation Machines,ICU Breathing Machine |
||

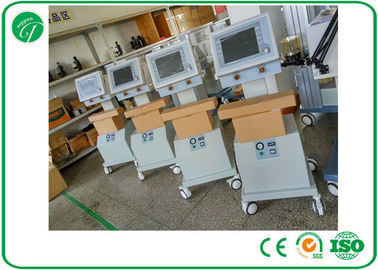

High quality Multi-function ICU favourable Price Medical Ventilator Equipment With Air compressor
Microprocessor controlled, pneumatically driven electronically controlled, for adult and pediatric

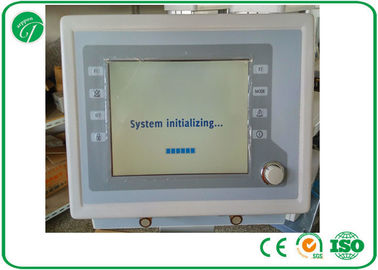

10.4” TFT color screen
Day and night mode for improving patient’s sleep at night
Dynamic display for pressure and tidal volume
Built-in PEEP
Back-up apnea ventilation, auto-response to unexpected emergency apnea
Oxygen concentration continuously adjustable
No need for air compressor, reduce cost and noise
Medical Ventialtor Specification
Modes of ventilation
Volume Controlled (VCV), Assist/Control(A/C)
Synchronized Intermittent Mandatory Ventilation (SIMV)
Spontaneous ventilation (SPONT)
Combined: VCV + SIGH, SIMV(VCV)+PSV
Parameters
Tidal volume: 0~1500ml
Respiratory rate: 1~70bpm (VCV&PCV)
1~40bpm(SIMV)
IE ratio: 4:4, 3:1, 2:1, 1:1.5, 1:2.0, 1:2.5, 1:1.3, 1:4 (Used in A/C mode)
Inspiration time: 0.2~6s (SIMV mode)
Inspiratory pause time: 0.2~6s
FiO2: 21%~100%
Pressure trigger sensitivity: -2~2kPa
PEEP: 0~3kPa
P support: 0-6kPa
Pcontorl: 0.5~6kPa
Key lock: yes
Monitoring
Pressure values: Paw, PEEP,
Volume/Flow values: VT, MV
Time values: Ftotal
Oxygen monitoring: with O2 sensor (Option)
Real time curves: Pressure-Time
| STANDARD CONFIGURATIONS | |
| QTY | NAME |
| 1 set | Main unit |
| 4 pcs | Adult threaded pipe (Silica) |
| 1 set | Child threaded pipe (single use) |
| 1 pc | Oxygen Tube |
| 1pc | Y-Pipe |
| 2pcs | Mask (Silicom) |
| 2pcs | Leather Bag |
| 2pcs | Fuse |
| 1pc | Power Line |
| 1pc | Oxygen pressure reducer |
| 4 pcs | Hoop |
| 1pc | Battery |
| 1pc | Tools Attachment |
| 1 set | humidifier |
| 1 set | English Version User Manual |
Alarm
MV high, MV low, Paw high, Paw low, VT high, FiO2 high, FiO2 low, Tapnea, Power supply failure, Battery low, Battery exhausted, O2 supply down
| Temperature: | 5°C~40°C(Operation) |
| -10°C~55°C (Storage) | |
| Relative humidity: | ≤80%, non-condensing(Operation) |
| ≤93%, non-condensing (Storage) |
