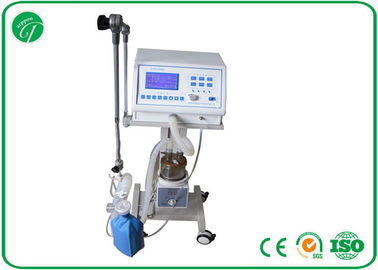

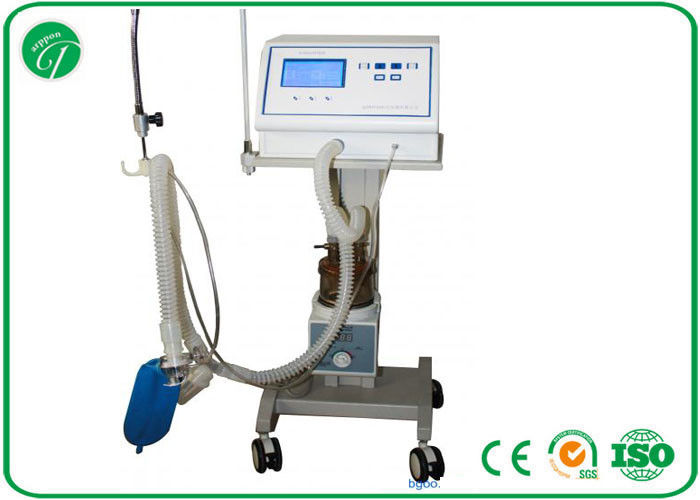

Highest Airway Medical Ventilator Equipment With Air Compressor

     Hospital Treatment Medical ICU Ventilator equipment Price/ Medical Ventilator

This machine for computer control, air operated electric control, time cut, limiting pressure life-support machine, breath pattern, technical parameter by touching key control. The hypothesis, the actual operational parameter liquid crystal by large screen that the compulsion , the synchronized breath intercom-version, the positive and negative pressure gauge, the indicating lamp may momentarily the airway pressure and carry on protect oneself. The high grade import part and the advanced high intelligent design, increased the machine , the performance stability, the operational reliability and operation simple, are in all levels of hospitals the surgical department, the ICU hospital ward, the first-aid center the operating room necessary equipment.

1. Breathing mode:A / C assist control ventilation (equivalent to SIPPV),] SIMV1/2 synchronized intermittent mandatory ventilation,] SIMV1/4 synchronized intermittent mandatory ventilation, PSV pressure support ventilation and CPAP continuous positive pressure ventilation, IPPV intermittent positive pressure ventilation (sigh ventilation (deep breath), peep, suffocation back-up ventilation.

2, gas path performance:

A) gas path maximum safe pressure: no more than 6kPa.

B) the concentration of inspiratory oxygen: 40% ~ 100%, continuously adjustable. *

3, ventilation performance:

A) respiratory rate: 6 ~ 60 times / minute, continuously adjustable.

D) the trigger pressure: -2kPa ~ 2kPa, continuous adjustable.

E) tidal volume: 50 ~ 1500ml continuously adjustable.

F) min ventilation: no less than 18 L/min.

G) PSV pressure: 0 ~ 5 kPa, continuously adjustable.

4, alarm performance:

A) the pressure limit alarm b) the power off alarm d) mute: no more than 2min

E) the upper and lower limit alarm of minute ventilation.

5, monitoring performance:

A) tidal volume: 0 ~ 2000ml.

B) the measured total frequency and the autonomous frequency.

C) the suction time / expiration time.

D) peak pressure: the highest airway and alveolar pressure.

E) airway pressure: airway and alveolar pressure.

F) airway pressure curve: the actual pressure and time curve of the airway.

G) velocity curve: the curve of the actual flow velocity and time of inspiratory.

6, machine performance:

A) power supply: AC 22V + + 50Hz + 1Hz.

B) host power: 30VA.

C) electrical safety: the relevant requirements of the GB9706.1-2007 type equipment for the type I B type of the first part of the medical electrical equipment.

D) the noise of the whole machine: no more than 65dB (A).

E) system compliance: no more than 4ml/100Pa.

F) using gas source: oxygen, 0.25 ~ 0.3MPa.

7, the use of conditions:

A) environment temperature: +5 to +40.

B) relative humidity: 75% ~ 30%.

C) atmospheric pressure: 96 ~ 104kPa.

] e) with hydrophobic device, a display screen for 10.4 inch color LCD; flow sensor for the built-in can be reused; corrugated pipe is made of silica gel material, disinfection and repeated use.

8, storage and transportation:

The normal storage temperature range of - 40 to 55 DEG C, relative humidity range from 10% to 93%, the range of atmospheric pressure of 50kPa ~ 106kpa, no corrosive gas and well ventilated place, transport process should be moisture-proof, handle with care, pay attention to the direction of the signs.
