Product Details:
Payment & Shipping Terms:
|
| Display Mode: | B+M | Warranty: | One Year |
|---|---|---|---|
| Weight: | 4.5kg | Certificate: | CE ISO |
| Display: | 10.4 Inch Medical Color LCD | Color: | Grey |
| Grey Scale: | 256 Level | Function: | Hospital Medical Diagnose |
| Probe: | Multi-frequency Probe | ||
| Highlight: | Color Doppler Ultrasound Machine,Doppler Medical Equipment |
||

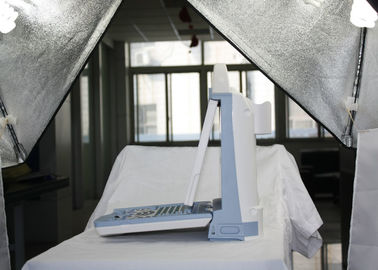

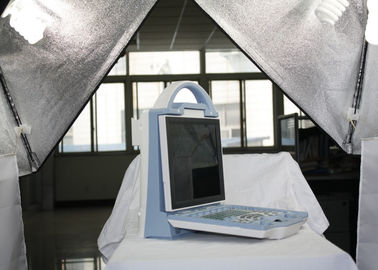

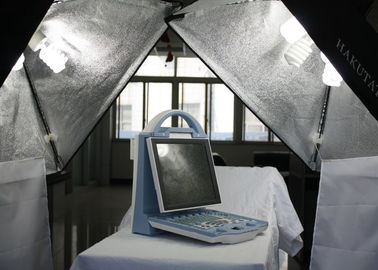

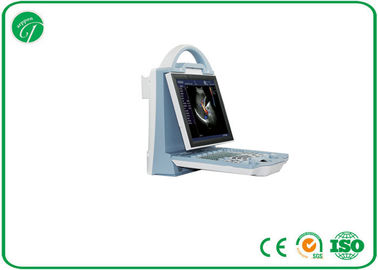

VET portable Color Doppler Ultrasound Scanner system diagnosis cattle , dogs
DCU12 provide advanced practical clinical solutions for ultrasound diagnosis of cattle, dogs, horses, cats, goats, camels, sheep and pigs.
General Description
* Built-in embedded A8 platform, totally against virus invasion, with high reliability.
* Operating system: Linux
* Digital multi-beam forming technology, precision delay-by-point dynamic receive focus
* Ultra-wideband fully digital beam former: Dynamic Focus
* Gray-scale imaging unit
* M-mode imaging unit
* Visual adjustable dynamic range
* Gray-scale imaging unit, grayscale ≥256 levels, with excellent contrast resolution and the audience subtle and uniformity
Specification
| Gray scale | 256 levels |
| Color scale | 256 levels |
| Display | 10.4’Flicker-inch high-resolution LCD dedicated medical color display |
| Power supply | 100-240V～ 1.2-0.6A Fre:50-60Hz |
| adapter output | DC12.8V 3.0A |
| power consumption | ≤100VA |
| main unit dimension | approx 256×150×326(mm,L×W×H) |
| main unit N.W | 4.5Kg(without accessories) |
Multimedia and peripheral equipment
* video printer；
* i-Station integrated workstations, to achieve store images, report generation and cloud printing capabilities;
* U disk (file management support, software upgrades, and one-key store function), DICOM interface
* Dual TV output:PAL/NTSC.
Probes:
* 3.5MHz R60 convex probe (2.0/2.5/3.5/5.0MHz)
* 7.5MHz L40 linear probe (6.0/6.5/7.5/9.0MHz)
* 6.5MHz R20 micro-convex probe(5.0 / 6.5 /7.5 / 9.0 MHz)
* 6.5MHz linear rectal probe (4.5 / 5.5 / 6.5 / 7.5MHz)
Operating mode
1. B,B/B,4B mode
2. M,B/M mode
3. CFM
4. PDI
5. PW
6. THI
Operating System Setup
* Basic Setting:
* Interface language, time, date and date format, screen-savers time settings, key tone setting, standard setting, font brightness setting.
* Formula preset: gestational formula for cattle, dogs, horses, cats, goats, camels, sheep and pigs.
* Stored presets: Photo storage format selection: BMP, PNG format (image compression format).
* Password preset
Standard configuration
Main unit 1PC
3.5MHz convex probe 1PC；
6.5MHz linear rectal probe or 7.5MHz linear probe or 6.5Mhz micro-convex probe
Working station 1 set
Net cable 1pc
Optional parts
Foot switch
trolley
video printer(UP-897MD)
Ethernet Switch
