Product Details:
Payment & Shipping Terms:
|
| Models: | OD1-A Biometer Only | Power Requirement: | AC 100-240V 50-60Hz |
|---|---|---|---|
| Rated Input: | DC12V 3.0A | Dimension: | 200*168*165(mm, L*W*H) |
| Weight Of Main Unit: | Approx. 1.7kg | Display: | 5.7’ Color LCD Touch Screen |
| Highlight: | Color Doppler Ultrasound Machine,Color Doppler Ultrasonography |
||

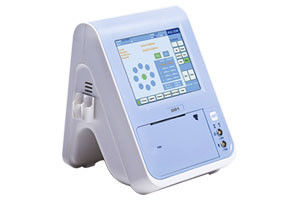

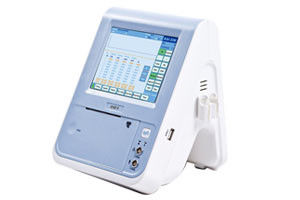

Portable Ophthalmic Ultrasound Machines With LCD Touch Screen DC12V

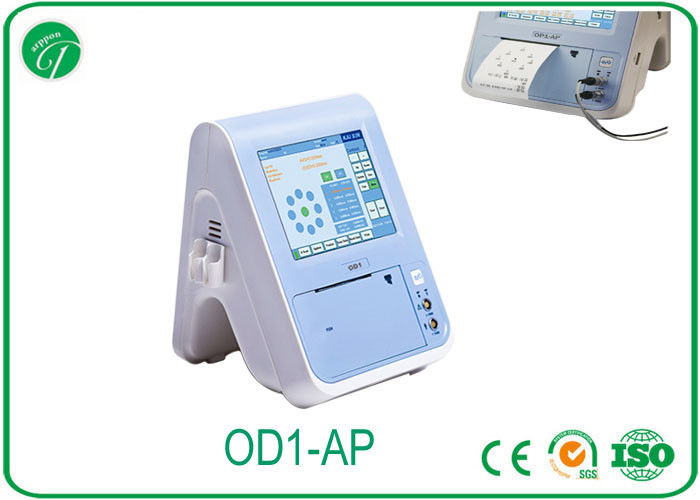

OD1-AP Bio&Pachy meter
OD1-AP Function
Show actual value and deviation at the same time
Sensitive , convenient, accurate and fast measurement
The probe service life is long, better cost performance
Point and surface point measurement display
Cabinet and delicate foot switch, convenient operation
Calculate the calibration value of intraocular pressure
(after achieving accurate intraocular pressure)
Ultrasonic velocity and offset is adjustable, compare
measuring results with other equipment easily

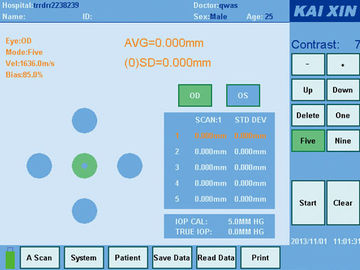

5.7’ color LCD touch screen, and user information
Can be easily input, more convenient and quick
Accurate data
IOL calculation
SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS,any of two groups can control display.
Calculate IOL, DEM, DAM, REEF, etc.And long term save 100 groups ofmeasurement results of A scan
A-SCAN Biometer measurementntegration of AL measurement andIOL calculation.Reading average and
standard deviation improve readingaccuracy and liability.4 automaticmeasuring mode:Normal,Cataract,Aphakic and Special
Parameter
Biometer
| Probe Frequency | 10 MHz |
| Resolution | 0.01mm |
| Accuracy | ±0.1mm |
| Gain adjustable | 0-120dB |
| Measurement range | 15~35 mm (vel 1640m/s) |
| Measurements | ACD, Lens, Vitreous, and AXL |
| Examination modes | Normal, Aphakic, pseudophakic and dense cataract |
| Measurement mode | immersion and contact , auto and manual |
| IOL formulas | SRK-II,SRK-T,BINKHORST,HOLLADAY,HOFFER-Q,HAIGIS |
| Power requirement | AC 100-240V 50-60Hz | Rate power: <= 45 VA |
| Dimension | 200*168*165(mm,L*W*H) |
Pachymeter
| Probe frequency | 20 Mhz |
| Resolution | 1um |
| Measurement range | 0.23~1.2mm |
| Accuracy | ±0.01mm |
| Power requirement | AC 100-240V 50-60Hz| Rate power: <= 45 VA |
Standard configuration(Biometer/ OD1-A):
|
Main unit |
|
10.0MHz A probe |
|
Adapter |
|
Gage block for calibration |
|
Touch screen pen |
Optional configuration(Biometer/ OD1-A):
| Lithium battery |
| Battery charger |
| Footswitch |
| Prager shell for Immersion |
Standard configuration(Pachymeter/ OD1-P):
| Main unit |
| 20.0MHz angled probe |
| Adapter |
| Gage block for calibration |
| Touch screen pen |
Optional configuration(Pachymeter/ OD1-P):
| Lithium battery |
| Battery charger |
| Footswitch |
| Prager shell for Immersion |
