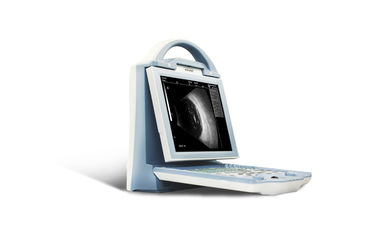

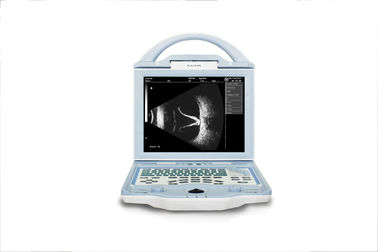

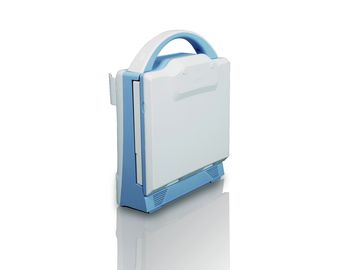

10.7” inch ajustable LED screen portable desigh A/B-Scanner ODU5 with Double probe sockets

Large Image : 10.7” inch ajustable LED screen portable desigh A/B-Scanner ODU5 with Double probe sockets

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	Darppon
Certification:	CE,ISO13485
Model Number:	ODU5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	negotiation
Packaging Details:	Carton
Delivery Time:	One week after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100/m

Contact Now

Detailed Product Description

Models:	A/B-Scanner ODU5	Power Requirement:	AC 100-240V 50-60Hz
Menu Operation Language:	Chinese/English	Gray:	256
Weight Of Main Unit:	4.5kg	Display:	10.4 Inch High Resolution LCD Screen
Gains Range:	0--120dB	Resolution:	0.01mm
Highlight:	Color Doppler Ultrasound Machine , Color Doppler Ultrasonography

10.7” inch ajustable LED screen portable desigh A/B-Scanner ODU5 with Double probe sockets

Features:

Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system.
10.4 inch high resolution LCD screen.
Menu operation Language: Chinese/English.

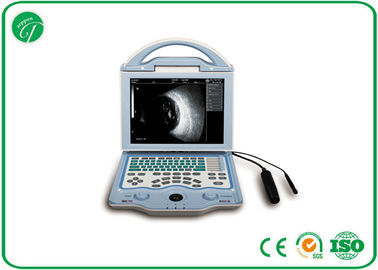

Double probe sockets.
Internal optional battery, practical for out-clinic diagnose.
Standard workstation software, easily transfer, manage and print documents.

Parameter:

A mode probe: 10MHz, imported probe with fixation light.
B mode probe: 10MHz, imported transducer.

Display mode	B, B/B, 4B, B/A, A.
Gains range	0--120dB
Dynamic range	30-100dB, visual and adjustable
Gray	256
Intelligent TGC adjustment	8 segments
Build-in D disk	4GB, save mass data, images, reports, etc.
Report function	print screen, IOL report, case report with picture, etc.

A scan parameter:

Resolution: 0.01mm.
Gain adjustable: 0-120dB.
Measurement range: 12-43mm(1640m/s).
Accuracy: ±0.02mm.
Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.
Measuring Mode: Contact and Immersion, automatic and manual.
Measurement methods: A single-point measurement(under A mode); five-point measurement(under A mode).
Calculation: std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS.

B scan parameter:

Scan mode: High accuracy stepping motor drive sector scan.
Scan Angle: 53°.
Display Depth: 0～56mm.
Gray: 256.
Depth seletion: 8.
Frame correlation: 4.
Edge enhancement:4.
Compression Curve: 4.
Post-processing: 8.
100 frames permanent image storage.
Disk management.

General Measurement: multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.

Standard configuration:

Main unit 1pc

10.0MHz mechanical sector B probe 1 pc

10MHz A probe 1 pc

Network cable 1pc

Optional configuration:

Large lithium battery 4400mAh

Trolley

Ethernet switch

Battery charger

Foot switch
