Minimum Order Quantity:	1 pc
Price:	negotiation
Packaging Details:	Carton
Delivery Time:	One week after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100/m

Contact Now

Detailed Product Description

Models:	A/B-Scanner ODU8	Power Requirement:	AC 100-240V 50-60Hz
Classification:	Imaging Diagnostic Equipment	Gray:	256
Net Weight:	8 Kg	Delayed Depth:	25--32mm
Gains Range:	0--120dB	Dimension:	400x186x385mm(length X Width X Height)
High Light:	Color Doppler Ultrasound Machine , Doppler Medical Equipment

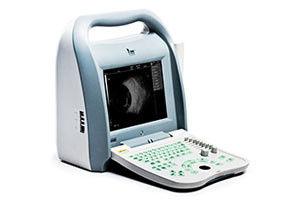

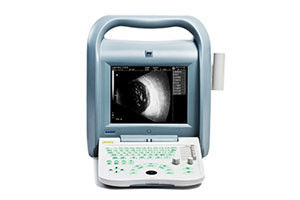

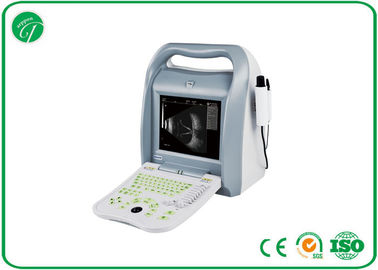

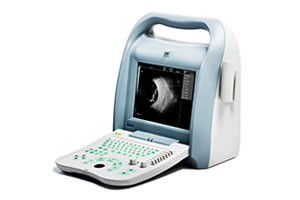

Portable Digital Ultrasound Scanner , Fetal Color Doppler Ultrasound In Pregnancy

Features:

Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate selected ultrasonic hardware system.
10.4 inch high resolution and contrast LED screen, satisfy high-definition visual enjoyment
Silicone backlit keyboard design, equipped with photoelectric trackball and encoder , make operation easier.
Good quality hardware and software bring comfortable operating experience.

Parameter:

Display mode	B, B/B, 4B, B/A, A.
Gains range	0--120dB
Dynamic range	30-100dB, visual and adjustable
Gray	256
Intelligent TGC adjustment	8 segments
Build-in D disk	4GB, save mass data, images, reports, etc.
Report function	print screen, IOL report, case report with picture, etc.

Dual-mode TV output	PAL/NTSC, connecting to video recorder and ultrasonic working station
DICOM3.0 network port	realizing network transmission easily.
Power supply	AC110/230V -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.
Net weight	8kg
Dimension	400x186x385mm(length x width x height).

A scan parameter:

Measuring range:15-35mm.
Measuring accuracy: ±0.02mm.
Measuring parameter: ACD, LENS, body Length, axial length.
Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.
Measuring Mode: Contact and Immersion, automatic and manual.
Calculation: std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
Measurement methods: A single-point measurement(under A mode); five-point measurement(under A mode).
IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term save 100 groups of measurement results of A scan.
A single point measurement
Magnification: ×1.0,×2.0,x4.0.
Display Depth: 0～36mm , delayed depth: 0--36mm.

B scan parameter:

Scan mode: High accuracy stepping motor drive sector scan.
Scan Angle: 53°.
Display Depth: 0～88mm(incl.delayed depth).
Delayed depth: 25--32mm.
Gray: 256.
Frame frequency: 30frames/s.
depth seletion:8.
Frame correlation: 4.
Edge enhancement:4.
Compression Curve: 8.
Post-processing: 8.
Eight Pseudo colors:8 kinds (incl. B/W).
100 frames permanent image storage.
Cine loop: 256 frames,can measure the playback image.
Disk management.
General Measurement:multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.
