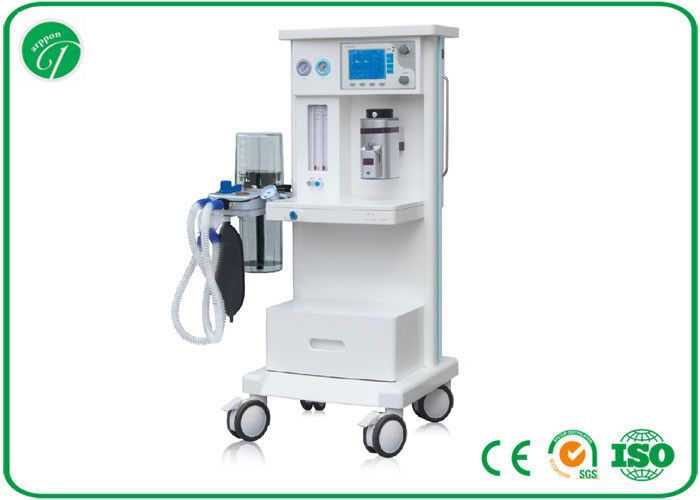

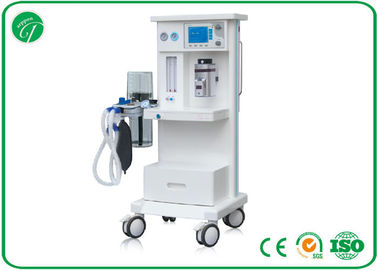

High Definition Mobile Gas Anesthesia Machine For Adult / Child

Large Image : High Definition Mobile Gas Anesthesia Machine For Adult / Child

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	560B2

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 units per month

Contact Now

Detailed Product Description

Flow Rate Of Rapid Oxygen Supply:	25~75L/min	Ventilation Mode:	IPPV, SIPPV, SIMV, MANUAL
Ventilation Functions:	PEEP,SIGH, IRV	Power:	AC 220V±10% 50Hz±1Hz
Display Mode:	High-definition 5.7” LCD Screen Display	Scope Of Application:	Adult, Child
Highlight:	Anesthesia Gas Machine , Ventilator Anesthesia Machine

Technical parameters

Anesthesia Machine With Ventilator 5.7” LCD screen display Anaesthesia Machine

Part of Anesthesia
Main body	High-strength engineering plastic rack, light, beautiful and corrosion resistant
Scope of application	adult, child
Gas source	O2: 0.28~0.6MPa	N2O: 0.28~0.6MPa
Flow meter	O2 : 0.05~10L/min	N20: 0.05~10L/min
O2 N2O linkage and N2O Stopper	When using nitrous oxide, oxygen concentration>25%;
	When the oxygen pressure<0.2Kpa, the flow of nitrous oxide would be cut off.
Flow rate of rapid oxygen supply	25~75L/min
Low oxygen pressure alarm	There will be sound alarm when the oxygen pressure < 0.2MPa
Vaporizer	It has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0~5 vol%. Among Halothane,Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.
Respiratory circuit	working mode: all-close, semi-close, semi-open
	APL≤12.5 kPa
Respiratory Bellows	bellows for adults, tidal volume range:0~1500 ml
	bellows for children, tidal volume range:0~300 ml
	anyone can be chosen for application as required by the customer
Display mode	High-definition 5.7” LCD screen display
Part of Ventilator
Ventilation mode	IPPV, SIPPV, SIMV, MANUAL
Ventilation functions	PEEP,SIGH, IRV
Ventilation parameters	Tidal volume	50~1500 ml
	Rate	2~99 bpm
	SIMV rate	2~20 bpm
	I:E	2:1~1:8
	Inspiratory trigger pressure	-10~20 cmH2O
	PEEP	2~20 cmH2O
	Pressure range	5~60 cmH2O
	SIGH	1.5 times the inspiratory time (60-120 adjustable)
Parameters for ventilation monitoring	Expired tidal volume, Inhale tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, autonomous inspiratory rate, I/E, peak pressure of airway, average pressure, PEEP, inspiratory trigger pressure
Security Alarm System
Airway pressure alarm	upper limit setting range 5~60 cmH2O
	low limit setting range 0~50 cmH2O
Per-minute ventilation volume alarm	upper limit setting range 1~20L/min
	low limit setting range 0~19L/min
Tidal volume	upper limit setting range 100~1500ml
	low limit setting range 0~1400ml
Sustained high-pressure alarm	it will give alarm when stress have consistently been higher than 25 cmH2O
Power	AC 220V±10% 50Hz±1Hz(UPS, Storage battery)
Mechanical Arms
(End-expiratory CO2 monitoring)
(Specific interface of waste anesthesia gas)
*Items within brackets are optional.
