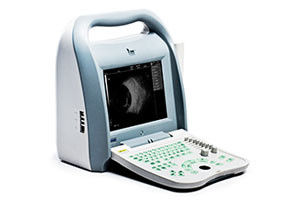

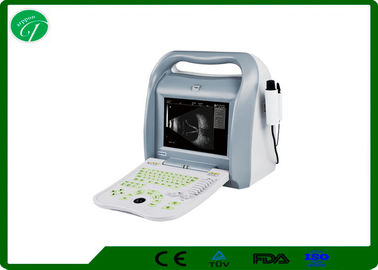

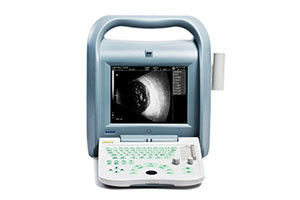

ROSH 10.4‘ Ophthalmic A/B Ultrasound Scanner AM-ODU8 with imported probe/transducer

Large Image : ROSH 10.4‘ Ophthalmic A/B Ultrasound Scanner AM-ODU8 with imported probe/transducer

Product Details:

Place of Origin:	Wuhan, China
Brand Name:	Darppon
Certification:	CE,ISO13485
Model Number:	ODU8

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	negotiation
Packaging Details:	Carton
Delivery Time:	One week after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100/m

Contact Now

Detailed Product Description

Models:	A/B-Scanner ODU8	Power Requirement:	AC 100-240V 50-60Hz
Classification:	Imaging Diagnostic Equipment	Gray:	256
Net Weight:	8 Kg	Delayed Depth:	25--32mm
Gains Range:	0--120dB	Dimension:	400x186x385mm(length X Width X Height)
Highlight:	Color Doppler Ultrasonography , Doppler Medical Equipment

ROSH 10.4‘ Ophthalmic A/B Ultrasound Scanner AM-ODU8 with imported probe/transducer

Every details is designed by heart

· 10.4 inch high resolution and contrast LED screen, satisfy high-definition visual enjoyment.
· Silicone backlit keyboard design, equipped with photoelectric trackball and encoder ,
make operation easier.
· Good quality hardware and software bring comfortable operating experience.

High definition B scan images and biometry accuracy

Insist on green development and environment protection

Many common material used in the electronic industry can bring harm effect to human or the earth.
Therefore we design and produce some new material which is more cleaner and safer and reduce
or eliminate these poisonous substance. Meanwhile, we adopt the supply chain management system
and necessary methods, such as test, inspection and commitment. These measures make sure that
our product does not contains the six kinds of poisonous substance and we have successfully got
through the certification of ROHS.

User-friendly and practical function

· Standard workstation software, easily transfer, manage and print document.
· Internal D disk for volume storage of diagnostic data, image, patient report, and be upgraded by U disk.

Parameter:

Display mode	B, B/B, 4B, B/A, A.
Gains range	0--120dB
Dynamic range	30-100dB, visual and adjustable
Gray	256
Intelligent TGC adjustment	8 segments
Build-in D disk	4GB, save mass data, images, reports, etc.
Report function	print screen, IOL report, case report with picture, etc.

Dual-mode TV output	PAL/NTSC, connecting to video recorder and ultrasonic working station
DICOM3.0 network port	realizing network transmission easily.
Power supply	AC110/230V -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.
Net weight	8kg
Dimension	400x186x385mm(length x width x height).

A scan parameter:

Measuring range:15-35mm.
Measuring accuracy: ±0.02mm.
Measuring parameter: ACD, LENS, body Length, axial length.
Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.
Measuring Mode: Contact and Immersion, automatic and manual.
Calculation: std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
Measurement methods: A single-point measurement(under A mode); five-point measurement(under A mode).
IOL Formula: SRK-II, SRK-T, BINKHORST,HOLLADAY, HOFFER-Q, HAIGIS, any of two groups can control display. Calculate IOL, DEM, DAM, REEF, etc. And long term save 100 groups of measurement results of A scan.
A single point measurement
Magnification: ×1.0,×2.0,x4.0.
Display Depth: 0～36mm , delayed depth: 0--36mm.

B scan parameter:

Scan mode: High accuracy stepping motor drive sector scan.
Scan Angle: 53°.
Display Depth: 0～88mm(incl.delayed depth).
Delayed depth: 25--32mm.
Gray: 256.
Frame frequency: 30frames/s.
depth seletion:8.
Frame correlation: 4.
Edge enhancement:4.
Compression Curve: 8.
Post-processing: 8.
Eight Pseudo colors:8 kinds (incl. B/W).
100 frames permanent image storage.
Cine loop: 256 frames,can measure the playback image.
Disk management.
General Measurement:multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.
