Product Details:
Payment & Shipping Terms:
|
| Dimensio: | 130mm X 74mm X 25mm (WxLxH) | Net Weight: | 2.5kg |
|---|---|---|---|
| Display: | 7-inch TFT, Touch Screen | Lead: | Standard 12 Leads |
| Dimension Of Recording Paper: | 80mmx20m | Paper Speed: | 25mm/s, 50mm/s |
| High Light: | Portable Ecg Monitor,Handheld Ecg Monitor |
||

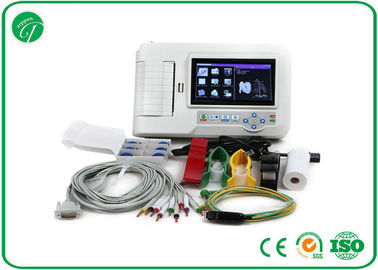

China Cheap Price Portable Six-channel Software Electrocardiograph Color Touch Screen 6 channel portable ecg machine
Features:
12-lead simultaneous standard resting ECG

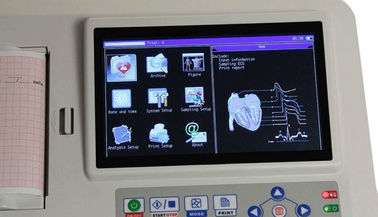

7-inch TFT, touch screen, led back light
Digital isolation technology and signal processing solution, digital filter
Patient management, name and age and id.
Detail analysis report.
Mufti-language options: Chinese, English, Italian, Turkey, Spanish, etc
Built-in lithium rechargeable battery, wide thermal printing system
USB and LAN socket
Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive
Auto-measurement, auto-analysis, and auto-interpretation
Specification:
| Safety standard | IEC class I, type CF |
| Lead | Standard 12 leads |
| Patient leak current | <10uA |
| Input impedance | >=50M |
| Frequency response | 0.05~150Hz(-3dB) |
| Time constant | >3.2s |
| CMRR | >100dB |
| Dimension of recording paper | 80mmx20m |
| Paper speed | 25mm/s, 50mm/s |
| Sensitivity choice | 5, 10, 20mm/mV |
| Measurement parameters | HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) |
| Product safety type | Class I, CF. Defibrillation and pacing protection |
| Enduring polarization voltage | 300mv |
| Noise level | <15uVp-p |
| Dimension | 130mm x 74mm x 25mm (WxLxH) |
| Net weight | 2.5kg |
Packing List:
Electrocardiograph: 1each
Banana type ECG cable: 1each
Chest electrodes: 6each
Limb electrodes: 4each
Power cable: 1each
Grounding cable: 1each
Fuse: 2each
Paper roll: 1each
Manual: 1each
