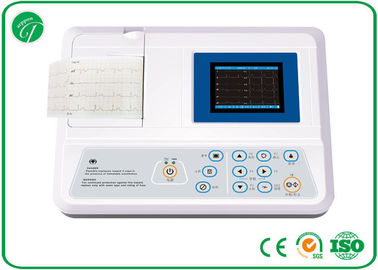

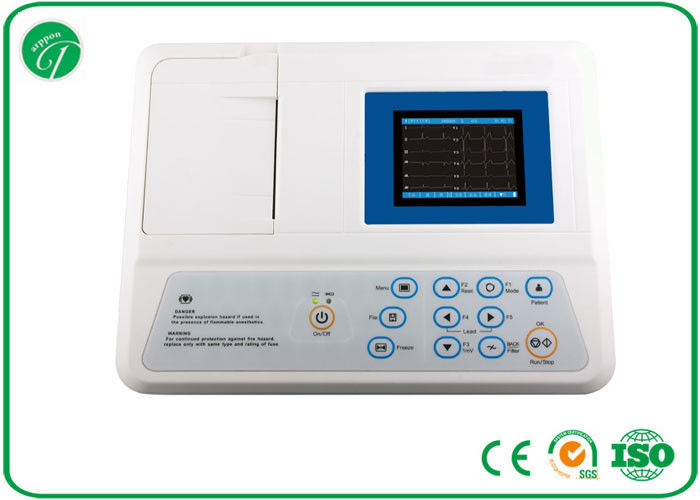

CE Approved Automatic Portable ECG Machine 3 Channel With Rhythm Lead

CE approved automatic report protable 12 lead ecg machine with cheap price​

Product Introduction

Model: ECG-8031

Name: Electrocardiograph

1. Features

● 3 channel ECG machine with interpretation
● Manual/Auto/Arrhythmia Analysis Modes
● 80mm 3-ch recording with rhythm lead
● Built in rechargeable Li-ion battery
● Adaptor 110-230V, 50/60Hz AC power supply
● Built in USB/RS232 interface(ECGNET software Optional)

2. Technical Specification

● Lead:standard 12 leads

● Calibrating voltage: 1mV±2％

● Voltage tolerance: ≥±500mV

● Time constant: ≥3.2s

● Frequency response: 0.05～160Hz(-3db)

● Noise level: ＜15μVp-p

● Sensitivity valve: ≤20μV

● Sensitivity: 2.5, 5, 10, 20mm/mV

● Inter-channel Interference: ≤0.5mm

● Paper speed: 6.25, 12.5, 25, 50mm/s(±3％)

● Input dynamic range:±10Vpp

● Filter:

AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter : 0.15Hz (Adaptive)

● CMMR: ≥120dB (with AC filter)

● Input Impedance: ≥50MΩ

● Input circuit current: ≤0.05μA

● Patient current leakage: ＜10μA

● Lead acquisition: 12bit/1000Hz(synchronously 12 leads)

● Work modes: MAN,AUTO,ANALYSIS modes

● Input circuit: floating; protection circuit against defibrillator effect

● Display: 3.5 inch colour LCD

● ECG waveform,100 patient save/replay

3. Standard Configuration

● Patient cable 1 set

● Limb electrode 4 sets

● Chest electrodes 6 sets

● Grounding cable 1 set

● Paper axis 1 set

● Thermal paper 1 set

● Fuse 2 sets

● 3-cord power cord 1 set

● AC Adaptor 1 set
