AC Power Supply 3 Lead ECG Monitoring 5'' LCD Display Built In Li-Ion Battery

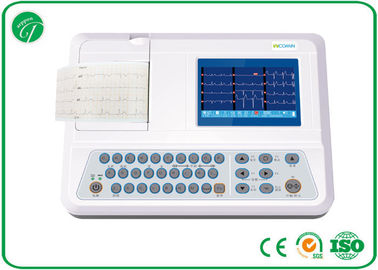

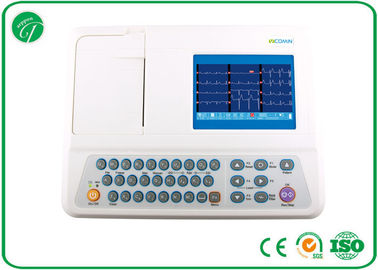

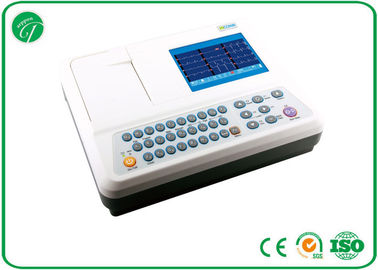

Large Image : AC Power Supply 3 Lead ECG Monitoring 5'' LCD Display Built In Li-Ion Battery

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	8033

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	6 work days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Contact Now

Detailed Product Description

Certificate:	ISO	Color:	White
Brand Name:	Darppon	Warranty:	1 Year
Weight:	2.8 Kg	Display Mode:	B+M
Name:	Electrocardiograph	Lead:	Standard 12 Leads
High Light:	Handheld Ecg Monitor , Portable Ecg Monitor

3 channel Portable ECG machine with 5 inch Color LCD Display by Chinese manufacture

Product Introduction
Model: S-8033
Name: Electrocardiograph

1. Features

3 channel ECG machine with interpretation
Manual/Auto/Arrhythmia Analysis Modes
80mm 3-ch recording with rhythm lead
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Built in USB/RS232 interface(ECGNET software Optional)

2. Technical Specification

Lead	standard 12 leads
Calibrating voltage	1mV±2%
Voltage tolerance	≥±500mV
Time constant	≥3.2s
Frequency response	0.05~160Hz(-3db)
Noise level	<15μVp-p
Sensitivity valve	≤20μV
Sensitivity	2.5, 5, 10, 20mm/mV
Inter-channel Interference	≤0.5mm
Paper speed	6.25, 12.5, 25, 50mm/s(±3%)
Input dynamic range	±10Vpp
AC Filter	50Hz / 60Hz
EMG Filter	25Hz / 45Hz
Anti-Drift Filter	0.15Hz (Adaptive)
CMMR	≥120dB (with AC filter)
Input Impedance	≥50MΩ
Input circuit current	≤0.05μA
Patient current leakage	<10μA
Lead acquisition	12bit/1000Hz(synchronously 12 leads)
Work modes	MAN,AUTO,ANALYSIS modes
Input circuit	floating; protection circuit against defibrillator effect
Display:	5 inch colour LCD

3. Standard Configuration

Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set AC Power Supply 3 Lead ECG Monitoring 5'' LCD Display Built In Li-Ion Battery
