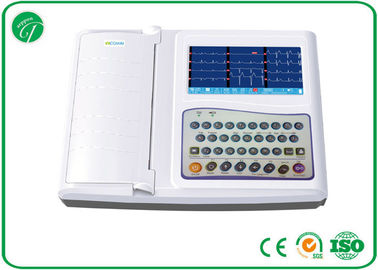

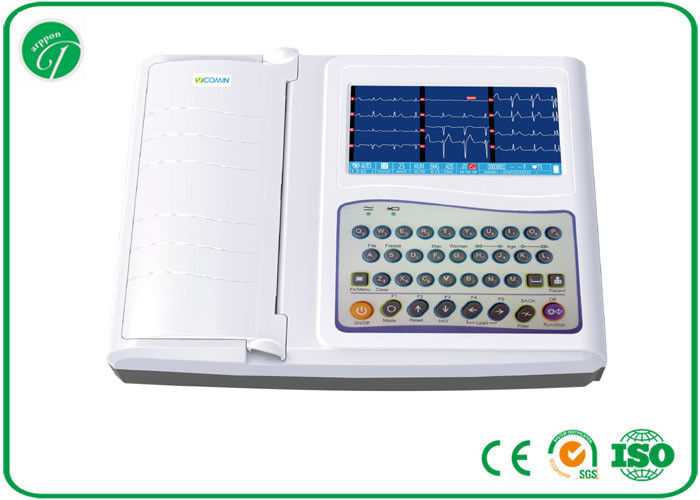

Real - Time Automatic Analysis Portable ECG Machine 12 Channel Protection Circuit

Large Image : Real - Time Automatic Analysis Portable ECG Machine 12 Channel Protection Circuit

Product Details:

Place of Origin:	China
Brand Name:	Darppon
Certification:	CE, ISO9001
Model Number:	8121

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	6 work days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 units per month

Contact Now

Detailed Product Description

Certificate:	ISO	Color:	White
Brand Name:	Darppon	Warranty:	1 Year
Item:	Digital ECG Machine	Display Mode:	B+M
Channel:	Portable 12 Channel ECG Machine	Model:	8121
Lead:	Lead Standard 12leads	Work Modes:	Manual/Auto/Arrhythmia Analysis Modes
Highlight:	Portable Ecg Monitor , 3 Lead Ecg Monitoring

Portable Digital 12 Channel Darppon ECG /ECG EKG Portable machine with printer

Product Introduction

Model: 8121
Name: Electrocardiograph

1. Features

Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
7 inch colour LCD with Alphabet keyboard
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay

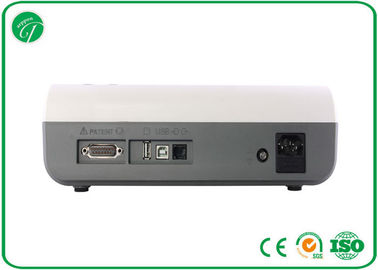

Built in USB/RS232 interface(ECGNET software Optional)

2. Technical Specification

Lead	standard 12leads
Calibrating voltage	1mV±2%
Voltage tolerance	≥±500mV
Inter-channel interference	≤0.5mm
Frequency response	0.05~160Hz(-3db)
Patient current leakage	<10μA
Noise level	<15μVp-p
Sensitivity valve	≤20μV
Paper speed	6.25,12.5, 25,50mm/s(±3%)
Time constant	≥3.2s
Input dynamic range	±10Vpp

Filter:

Input circuit	floating; protection circuit against defibrillator effect
Lead	Lead acquisition12bit/1000Hz(synchronously 12 leads)
Work mode	MAN,AUTO,ANALYSIS modes
Input circuit current	≤0.05μA
Input impedance	≥50MΩ
CMMR	≥120dB (with AC filter
Sensitivity	5,10,20mm/mV
Anti-drift filter	0.15Hz(Adaptive)
EMG filter	25Hz / 45Hz
AC flter	50Hz / 60Hz

3. Standard Configuration

Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
