Product Details:
Payment & Shipping Terms:
|
| Display: | 10 Inch Colour Touch LCD | Color: | White |
|---|---|---|---|
| Brand Name: | Darppon | Warranty: | 1 Year |
| Application: | ECG Machine | Work Modes: | Manual/Auto/Arrhythmia Analysis Modes |
| Channel: | Portable 12 Channel ECG Machine | Model: | S-8122 |
| Work Mode: | MAN,AUTO,ANALYSIS Modes | Lead: | Standard 12leads |
| High Light: | Handheld Ecg Monitor,3 Lead Ecg Monitoring |
||

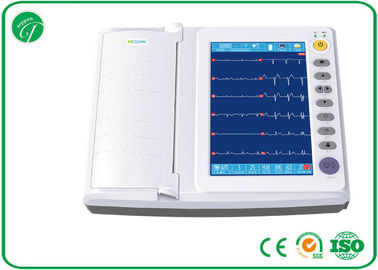

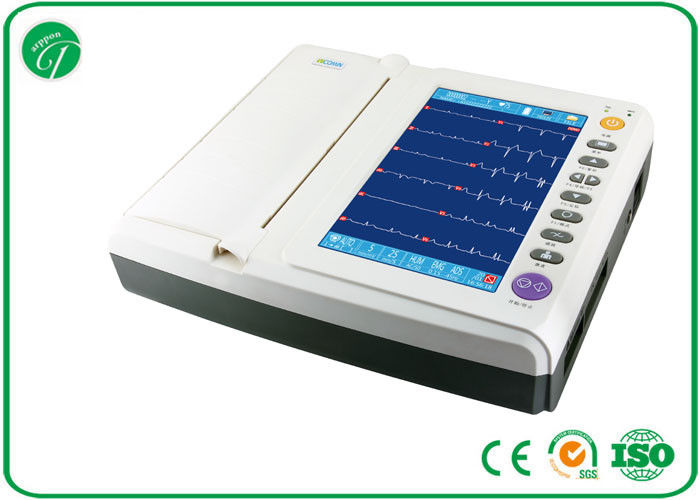

CE Approved 12 Channel 12 Leads Portable electrocardiograph ecg machine
Product Introduction
Model: S-8122
Name: Electrocardiograph
1. Features
Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
10 inch colour touch LCD
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay

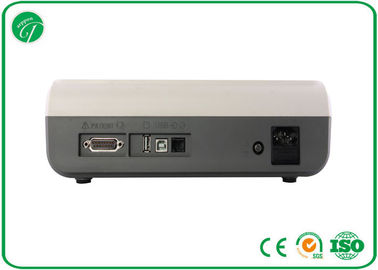

Built in USB/RS232 interface(ECGNET software Optional)
2. Technical Specification
| Lead | standard 12leads |
| Calibrating voltage | 1mV±2% |
| Voltage tolerance | ≥±500mV |
| Inter-channel interference | ≤0.5mm |
| Frequency response | 0.05~160Hz(-3db) |
| Patient current leakage | <10μA |
| Noise level | <15μVp-p |
| Sensitivity valve | ≤20μV |
| Paper speed | 6.25,12.5, 25,50mm/s(±3%) |
| Time constant | ≥3.2s |
| Input dynamic range | ±10Vpp |
Filter:
| AC flter | 50Hz / 60Hz |
| EMG filter | 25Hz / 45Hz |
| Anti-drift filter | 0.15Hz(Adaptive) |
| Sensitivity | 5,10,20mm/mV |
| CMMR | ≥120dB (with AC filter |
| Input impedance | ≥50MΩ |
| Input circuit current: | ≤0.05μA |
| Work mode | MAN,AUTO,ANALYSIS modes |
| Lead | Lead acquisition12bit/1000Hz(synchronously 12 leads) |
| Input circuit | floating; protection circuit against defibrillator effect |
3. Standard Configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set
